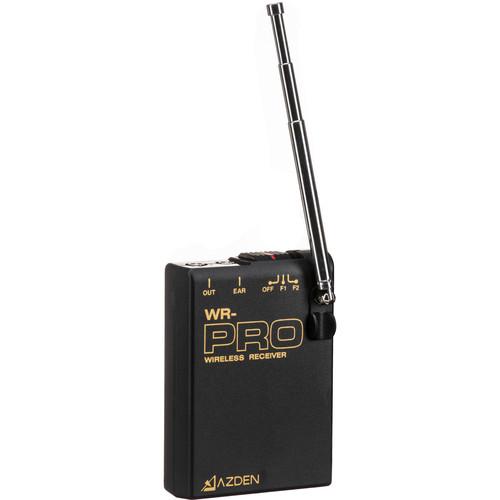

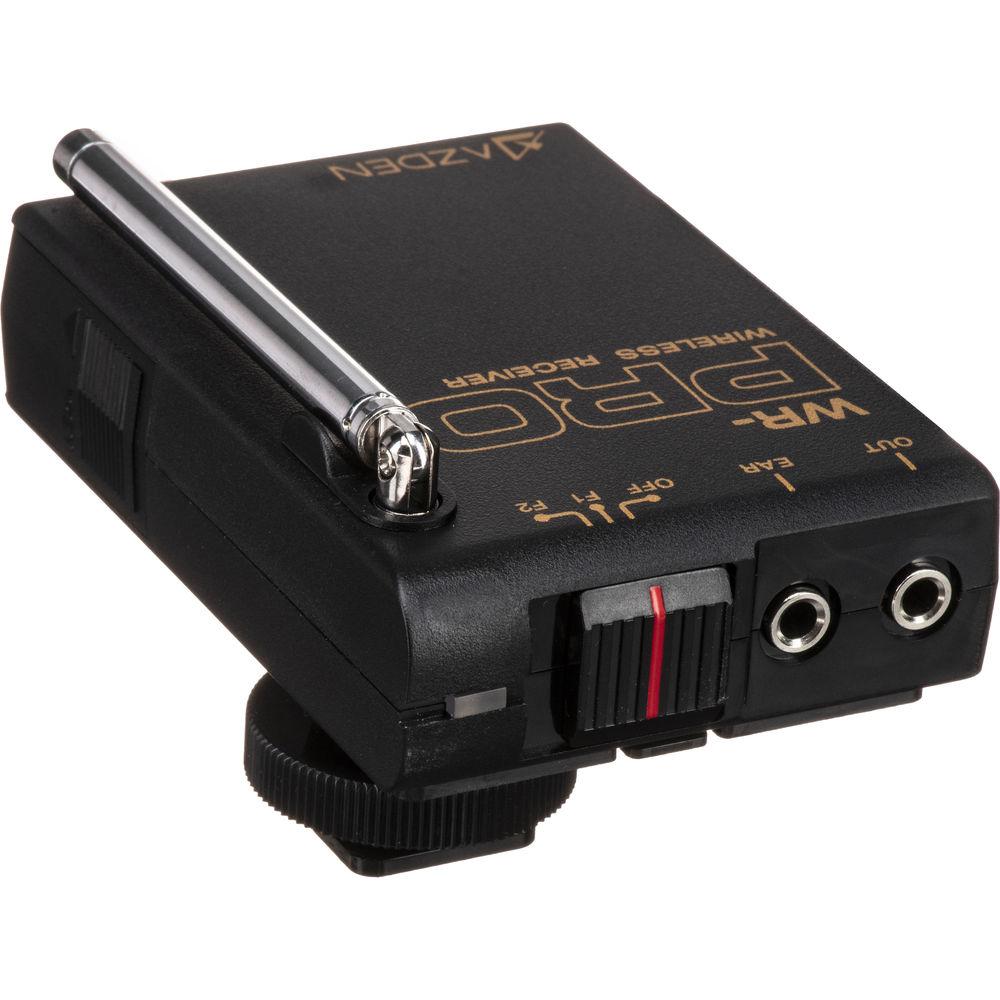

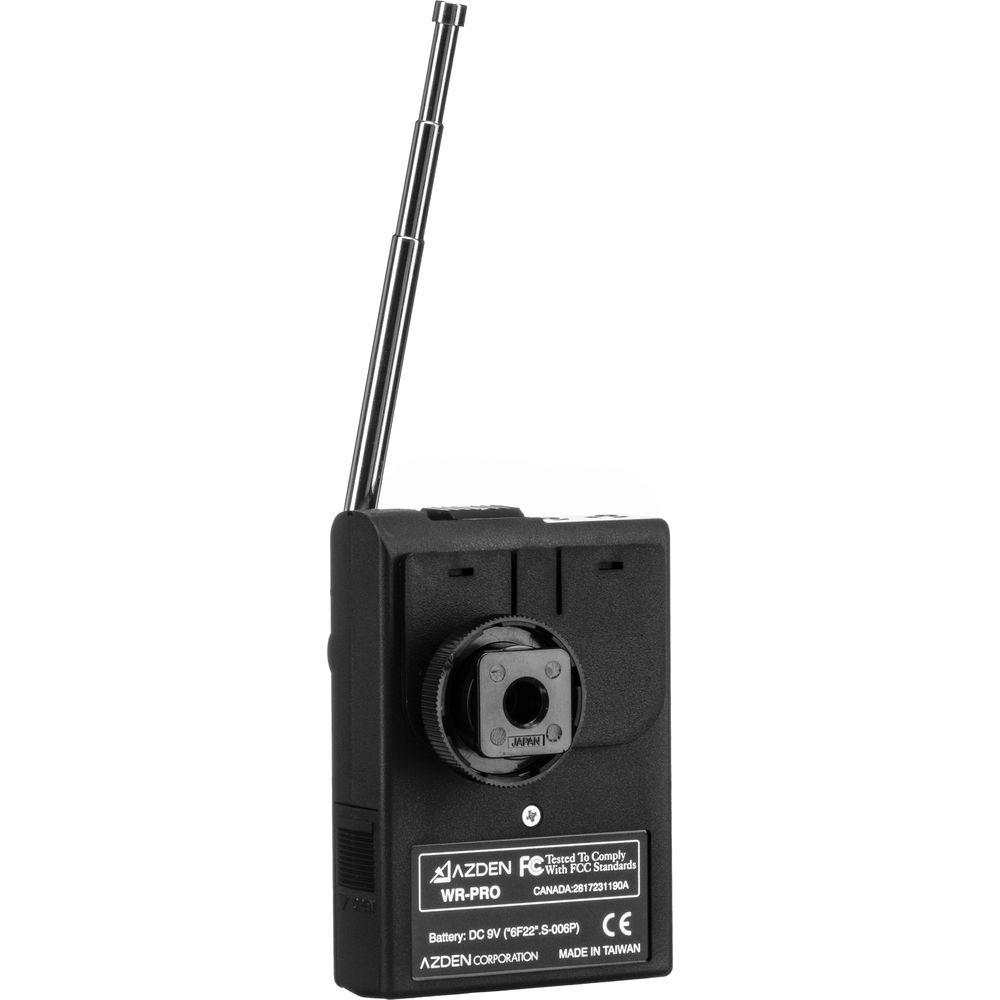

User Manual for Azden WR-PRO Portable Camera Mount VHF Receiver for PRO Series Click to enlarge the picture
Contents of the user manual for the Azden WR-PRO Portable Camera Mount VHF
- Product category: Wireless Receivers Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Wireless Receivers
 |
User manual for the Azden WR-PRO Portable Camera Mount VHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description Designed for professional videographers on a limited budget and video hobbyists, the WR-PRO by Azden is a single-channel switchable VHF receiver with 2 selectable operating frequencies, allowing you to switch between frequencies if one is noisy or experiences interference. The wireless operating range is more than 200 feet. All receivers and transmitters in the PRO Series use the same circuitry and operate on the same 2 frequencies, F1 at 169.445 MHz and F2 at 170.245 MHz, making them interchangeable and allowing you to add to your system at any time. Note: For system compatibility, the component's frequency MUST match your existing system/component frequency. - Compatible with all Azden "PRO" series microphones
- Two selectable VHF frequencies (169.445 & 170.245 MHz)
UPC: 095528040034 In the Box Azden WR-PRO Portable/Camera Mount VHF Receiver for PRO Series (F1: 169.445 and F2: 170.245) Shoe Mount 1/8" Mono to Stereo Output Cable Mounting Strips Earphone Monitor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden WR-PRO Portable Camera Mount VHF Receiver for PRO Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden WR-PRO Specs | Reception Frequencies | F1: 169.445 MHz
F2: 170.245 MHz | | Type | Double superheterodyne | | Sensitivity | 2 mV @ S/N of 40 dB | | Battery | 1x 9 V | | Power Consumption | 25 mA | | Monitor Output | 1 V @ 30 ohms
Modulation Frequency: 1 kHz
Deviation: +/-7 kHz | | Microphone Output | 8 mV with 10 kOhm load
Modulation Frequency: 1 kHz
Deviation: +/-7 kHz | | Output Impedance | Mic: 300 ohms | | Dimensions (H x W x D) | 3.30 x 2.40 x 0.85" (86.0 x 60.0 x 21.5 mm) | | Weight | 4.5 oz (128 g), with battery | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 3.0 x 2.5 x 0.5" |
