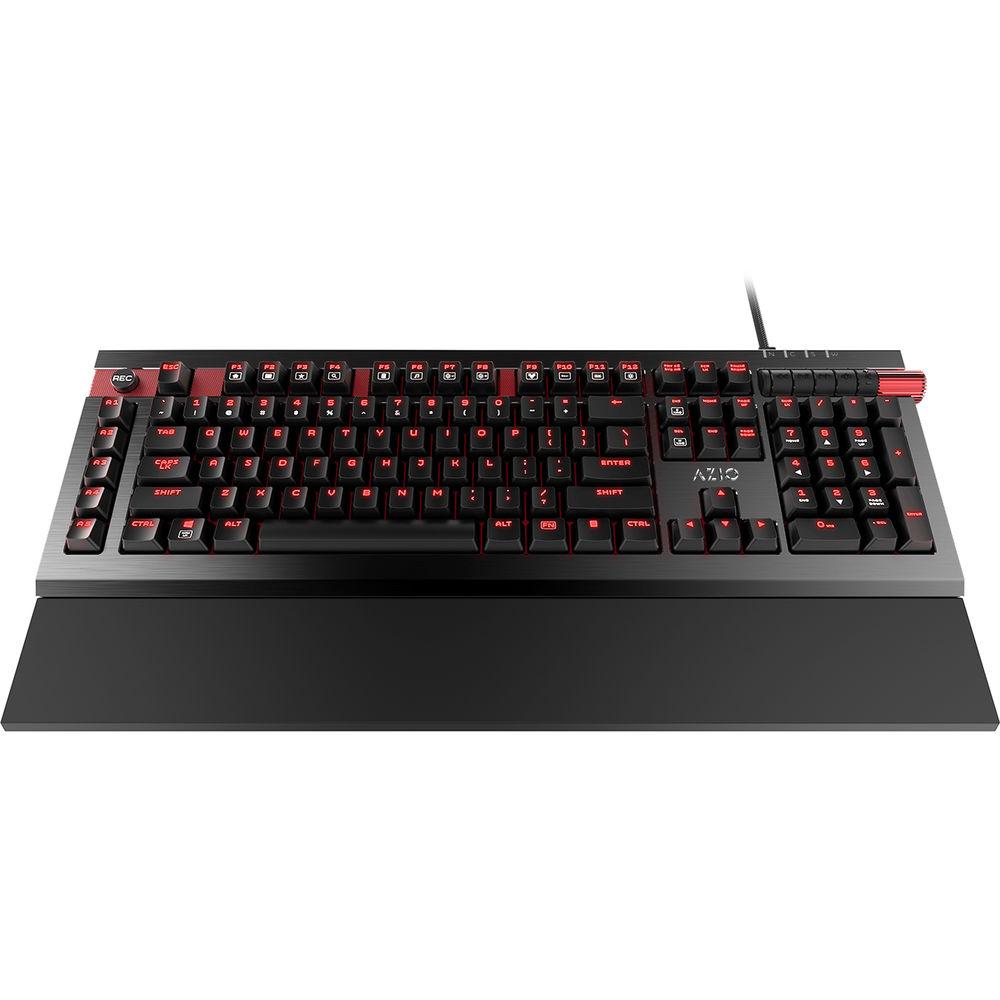

User Manual for AZIO Armato Backlit Mechanical Keyboard Click to enlarge the picture
Contents of the user manual for the AZIO Armato Backlit Mechanical Keyboard
- Product category: Keyboards AZIO
- Brand: AZIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AZIO Keyboards
|
User manual for the AZIO Armato Backlit Mechanical Keyboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AZIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AZIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AZIO product will considerably shorten its lifespan!
|
Product description The Armato Backlit Mechanical Keyboard from AZIO is a Cherry MX Brown-based keyboard built from aluminum for a durable and stylish finish. It's also equipped with red LED lighting and hotkeys for your convenience. Once it's connected to your system via USB Type-A, you can record and assign functions to its five programmable macro keys. Additionally, it supports N-Key rollover, which lets you quickly execute complicated multi-key commands precisely and accurately. - Cherry MX Brown

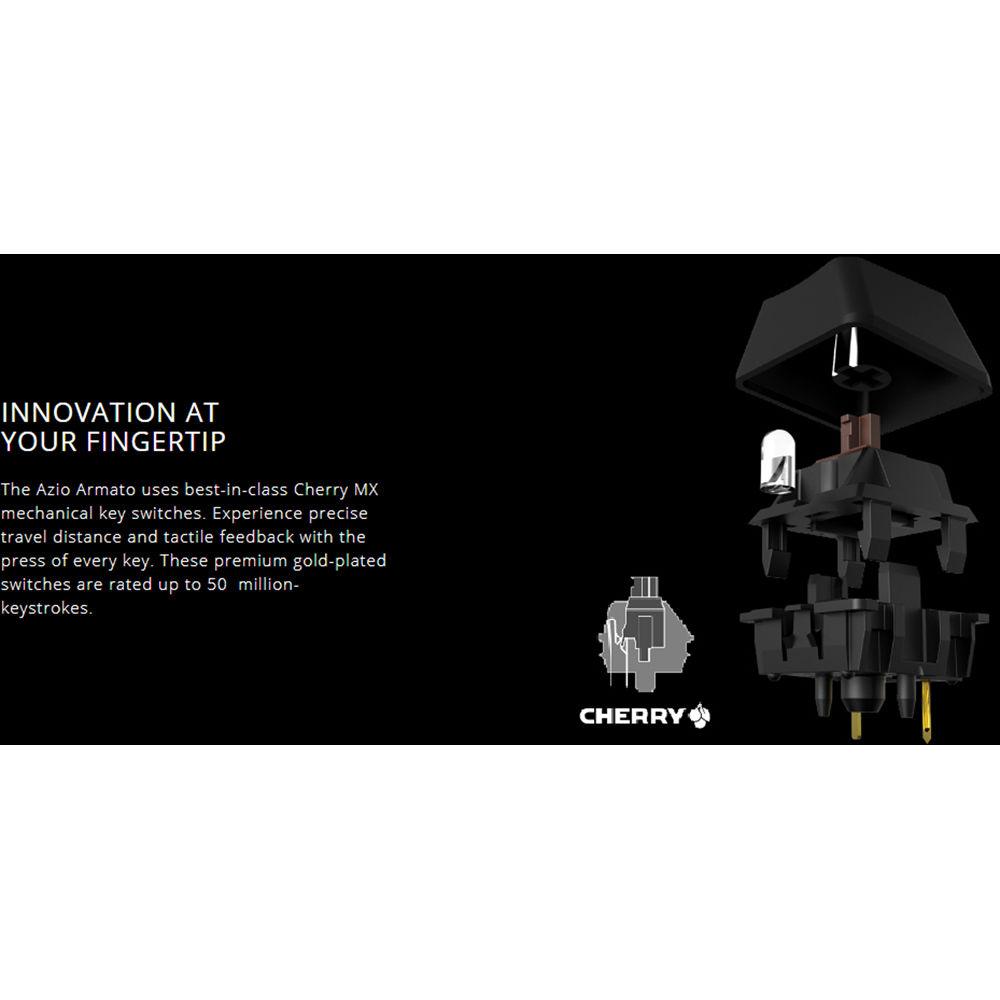

- Mechanical keyboards utilize a different type of key switch technology for a more durable and unique typing experience. The Cherry MX Brown switch has an actuation force of 45 g and offers a small tactile bump when pressed, letting you know that the key has registered. This can be useful for typing or preparing for a movement while gaming. Unlike Cherry MX Blue switches, these do not have an audible "click" mechanism, allowing for a quieter operation. Noise generated from this keyboard will be from the key either springing back into place or "bottoming out" – making contact with the back plate after a particularly hard press.
- Design

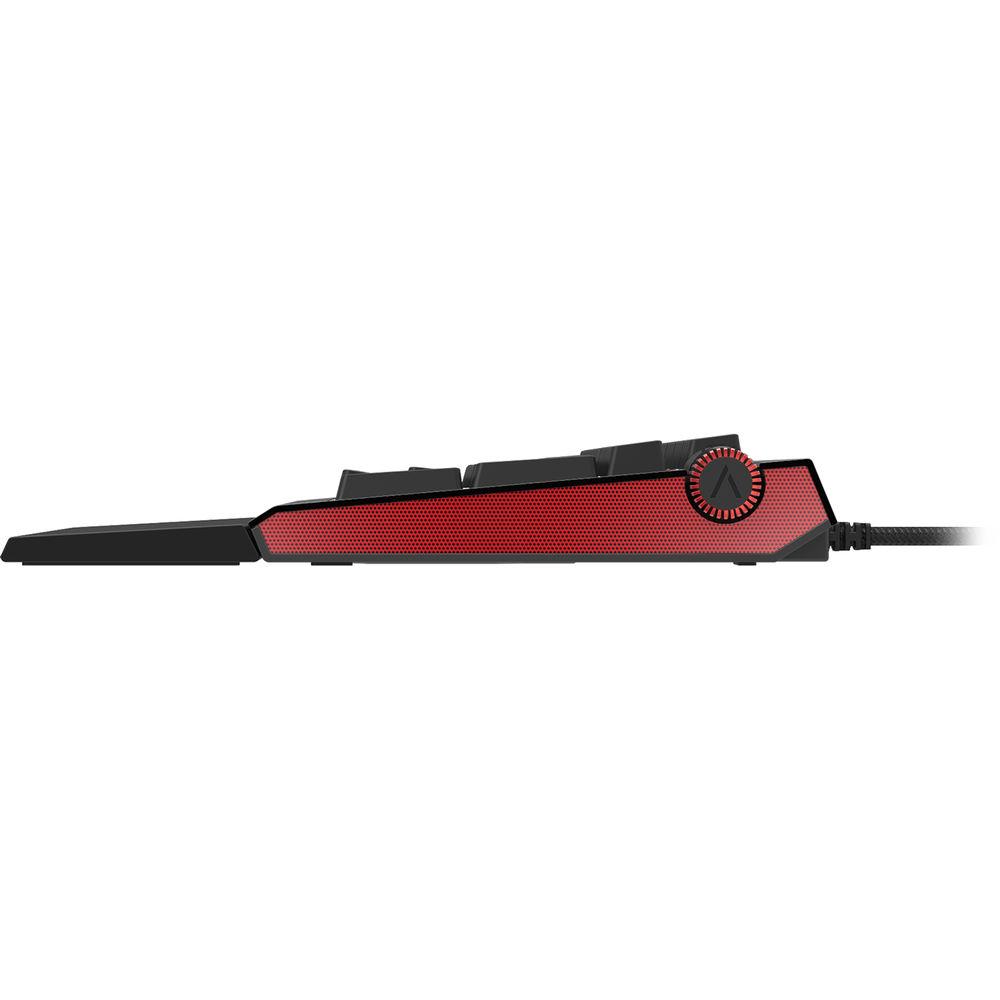

- The Azio Armato features an aluminum top plate with a fine-brushed finish and polished beveled edges as well as crimson red mesh sides.
- Programmable Macro Keys

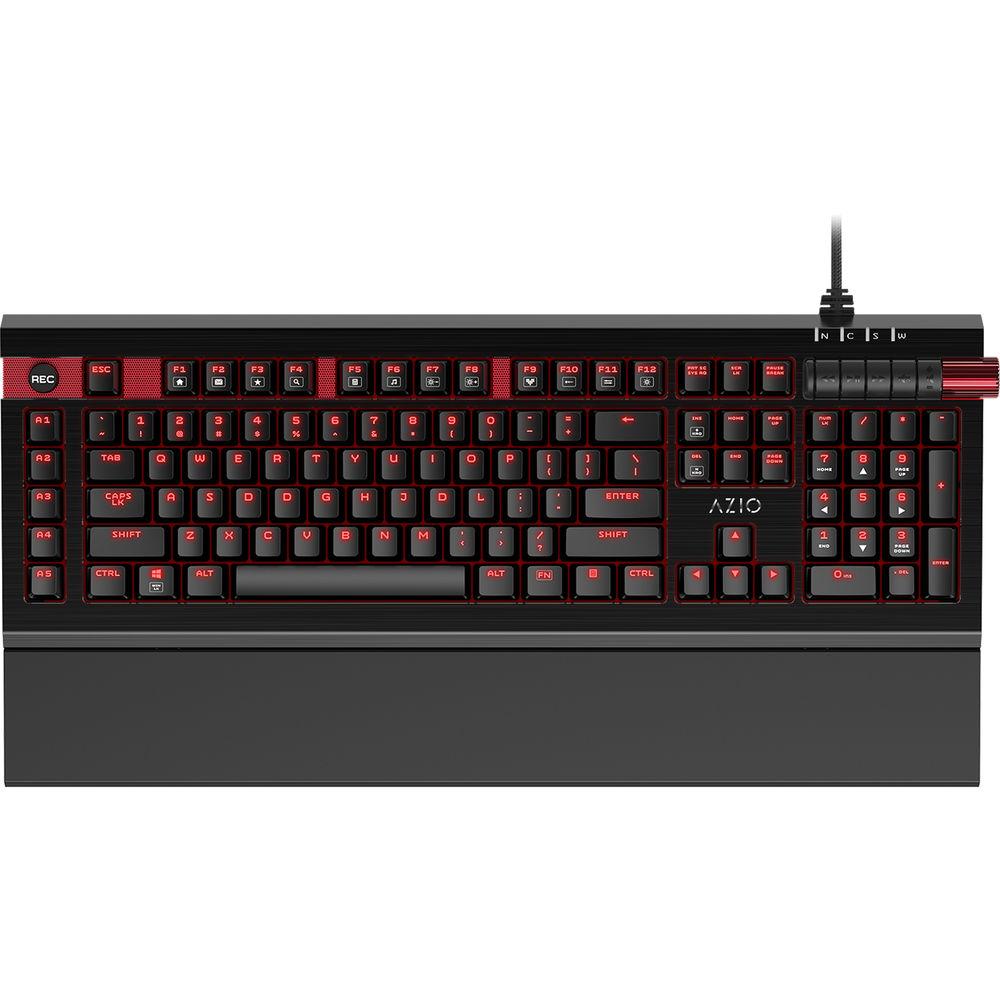

- There are five programmable macro keys located on the left side of the keyboard that you can assign words, letters, or functions to in order to keep things simple.
- Hotkeys
- Use the FN modifier key with other hotkeys to quickly access commonly used features and functions. It's also equipped with multimedia hotkeys for your convenience.
- Detachable Magnetic Palm Rest

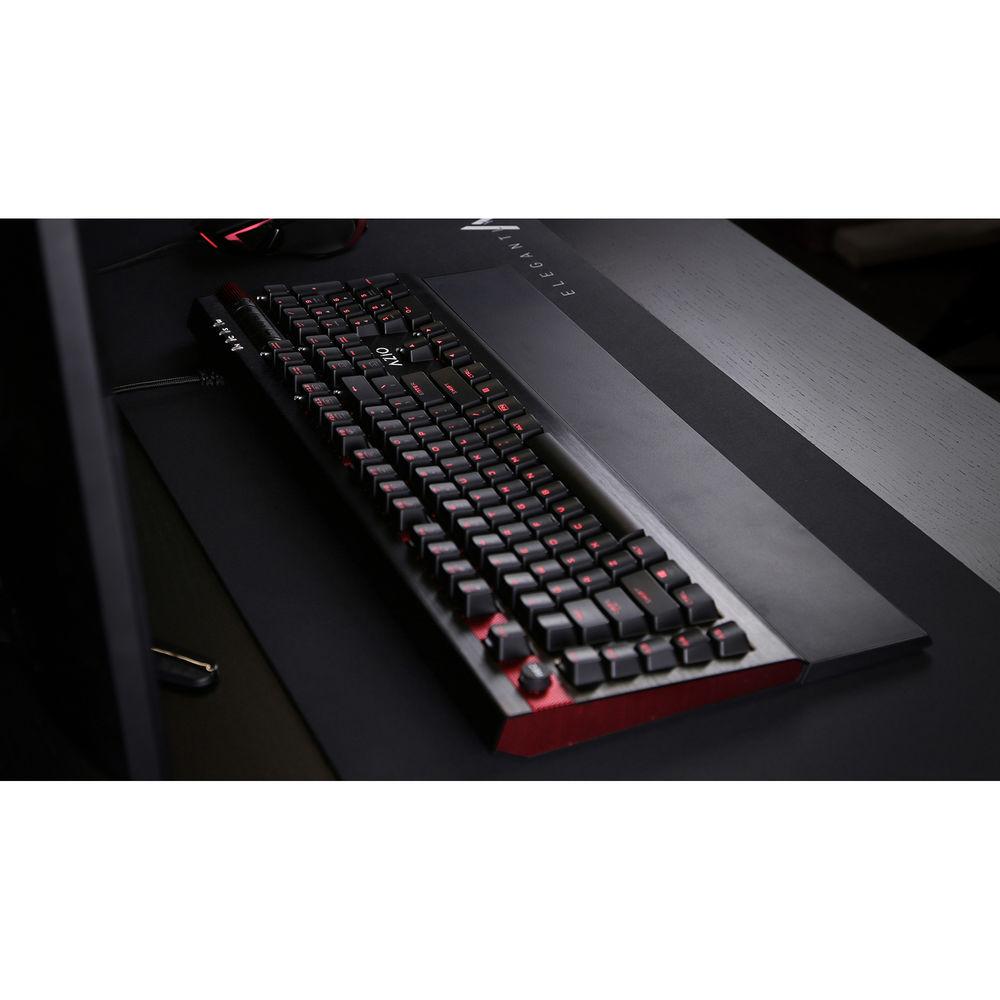

- The included palm rest can be used for comfort for long gaming or typing sessions if needed. If not, simply snap it off.
- N-Key Rollover
- N-Key rollover ensures that your commands are precisely and accurately recognized, regardless of how fast or complicated they may be.
- Red LED Backlighting
- With red LED backlighting, you'll be able to game and type in dimly list environments without worry.
UPC: 851104001130 In the Box AZIO Armato Backlit Mechanical Keyboard Palm Rest Key Puller Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AZIO Armato Backlit Mechanical Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

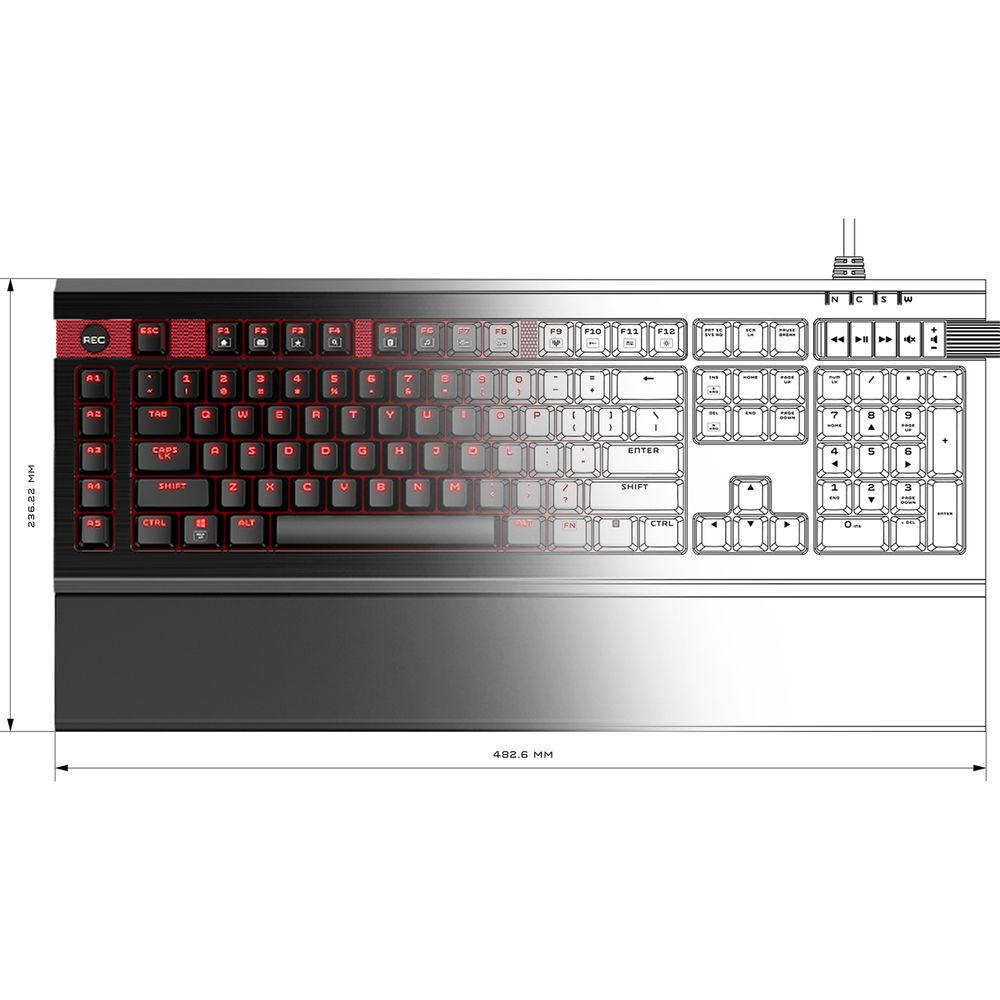

Technical parametersAZIO Armato Specs | Number of Keys | 115 | Switch Type | Mechanical | Mechanical Switch Type | Cherry MX Brown | Key Rollover | N-Key | Dedicated Multimedia Keys | Yes | Dedicated Macro Keys | 5 | On-the-Fly Recording | Yes | Windows Lock Key | No | | Connection Type | Wired | System Connection | USB Type-A | USB Ports | None | Audio | None | Full-Functionality OS Support | Windows | | Backlight | Yes | LED Colors | Red | Built-In Control Device | Knob | Wrist Rest | Detachable | | Cable Length | 6' / 1.83 m | Cable Type | Braided | Cable Management Channel | No | Material of Construction | Aluminum | Dimensions (L x W x H) | 19.0 x 6.5 x 1.2" / 482.6 x 165.1 x 30.5 mm | Weight | 3.0 lb / 1.4 kg | | Package Weight | 4.95 lb | Box Dimensions (LxWxH) | 20.8 x 8.4 x 2.5" |
