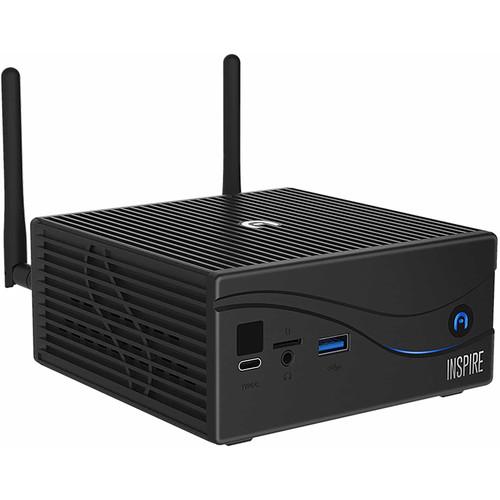

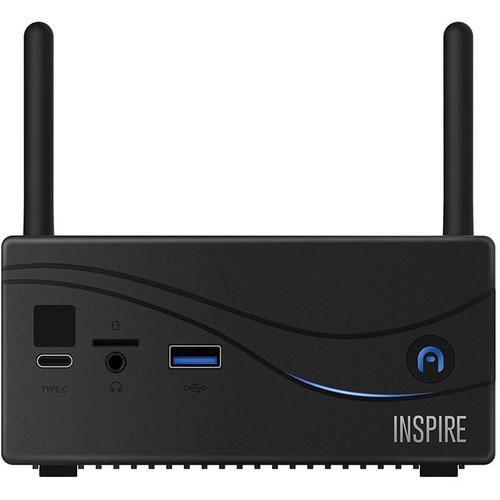

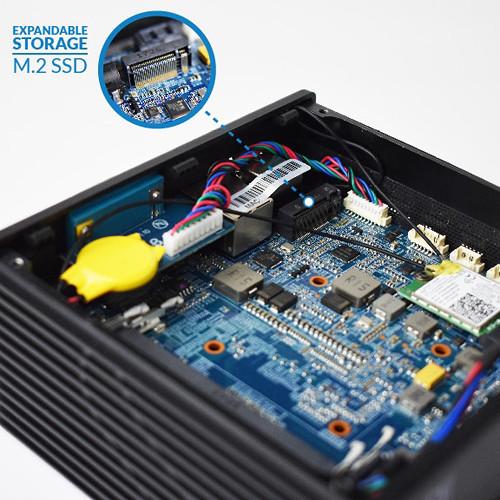

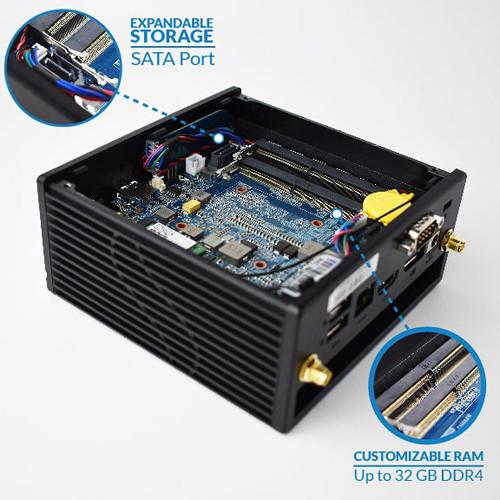

Product description The Inspire Fanless Mini PC Barebone System from AZULLE is a compact and quiet system that's built for work and play with its Intel Kaby Lake i7-7500U dual-core processor. The Inspire can house up to 32GB of DDR4 RAM for smooth multitasking, along with a 2.5" SSD with capacity support up to 512GB. Furthermore, the Inspire is compatible with optional eMMC storage and has an AHCI SATA M.2 slot for expansion. Additionally, you can transfer data or connect external peripherals via one of the Inspire's three USB 3.0 Type-A ports or its single USB 3.1 Type-C port.
The Inspire Fanless Mini PC houses an integrated Intel Graphics 620 GPU, which delivers crisp images when connected to a monitor. Output your favorite videos to an external monitor via the Inspire's DisplayPort and HDMI ports. Moreover, the Inspire delivers up to 4K UHD resolution at 60 frames per second for even streaming.

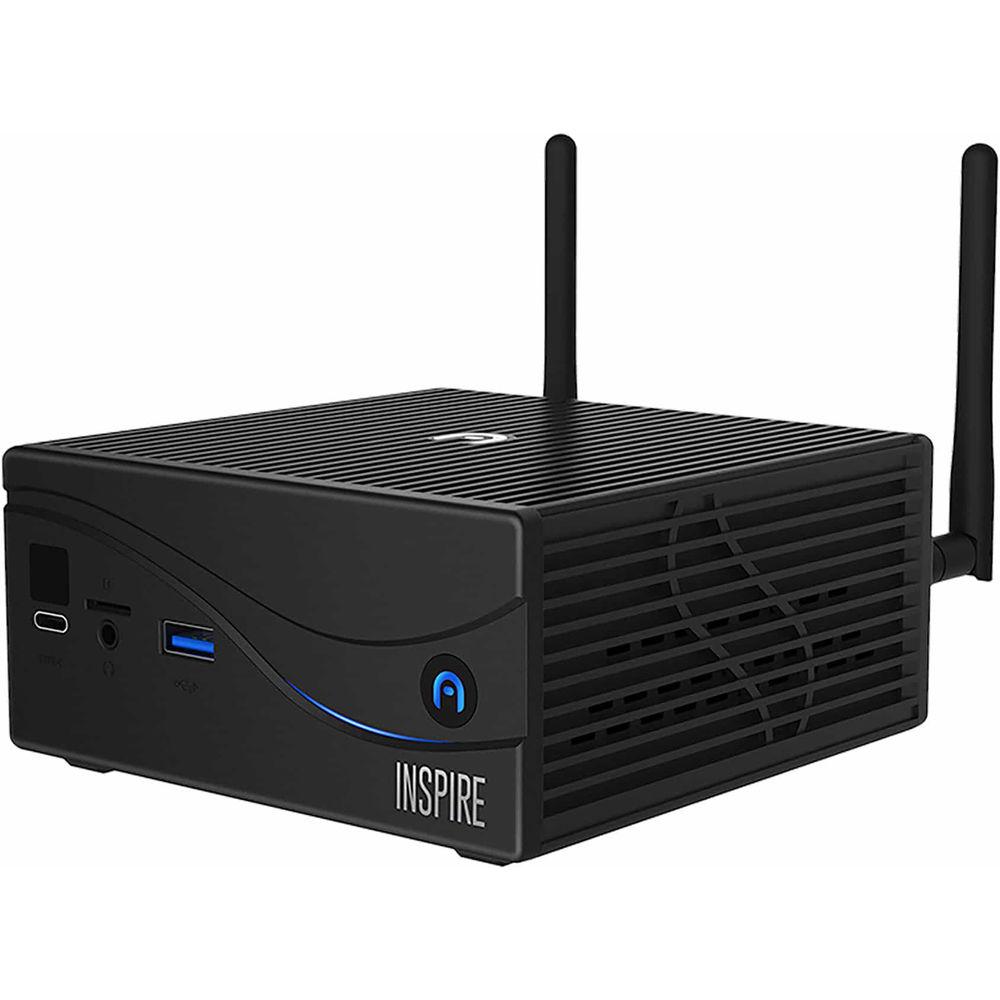

The Inspire connects to the internet for all your online needs using its Gigabit Ethernet jack and built-in dual-band 802.11ac Wi-Fi. Users can also sync their Inspire with Bluetooth 4.0-compatible wireless devices, such as keyboards, mice, and headphones. The Inspire features a fanless design for quiet and cool operation. - Quiet and Cool
- The Inspire Mini PC is designed to operate quietly with minimal noise. Furthermore, this system maintains a low operating temperature while also remaining energy efficient.
- Compact and Thin
- AZULLE's Inspire Mini PC provides flexible portability with its slim form factor at 4.9 x 4.9 x 1.9".
UPC: 853685006719 In the Box Azulle Inspire Fanless Mini PC Barebone System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Azulle Inspire Fanless Mini PC Barebone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzulle Inspire Mini PC Specs Operating System | None | CPU | 2.4 GHz Intel Core i7-7500U Dual-Core | Memory Type | 2133 MHz DDR4 | Total Installed Memory | None | Maximum Memory Capacity | 32 GB | Graphics Type | Integrated | GPU | Intel HD Graphics 620 | | Total Drive Bays | 1 x 2.5" (Internal) | Hard Disk Storage | None | PCI Expansion | 1 x M.2 2230 (E-Key) | Optical Drive | None | | Ports | 3 x USB Type-A (USB 3.1 Gen 1) | USB Type-C Ports | 1 x USB 3.1 Gen 1 | Display | 1 x DisplayPort 1 x HDMI | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | Media Card Slots | 1 x microSD (Unspecified Type) | | Ethernet | 1 x RJ45 (Gigabit) | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | Bluetooth | 4.0 | | Power Supply | None | Dimensions | 4.9 x 4.9 x 1.9" / 12.4 x 12.4 x 4.8 cm |
