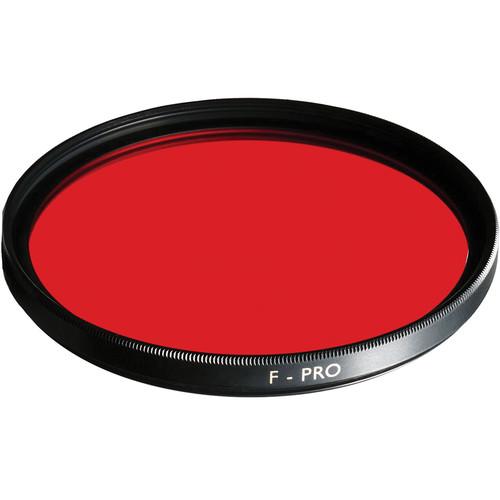

Product description The B+W 60mm Light Red MRC 090M Filter can be used to increase image contrast when photographing using a film camera system with black-and-white film installed.
This filter's effect corresponds to that of a Wratten 25 filter. Wavelengths of visible light that are apparent as green and blue colors to the human eye are suppressed, while visible light associated with yellow, orange, and red colors are able to more easily pass though the B+W 60mm Light Red MRC 090M Filter and into the lens it is mounted in front of. When photographing with this filter along with black-and-white film, green to blue-colored subjects within a scene are reproduced in very dark shades of grey than if a filter was not used. Simultaneously, yellow to red subjects are rendered in very light shades of grey.
When applied to black-and-white photography, the increased contrast provided by the B+W 60mm Light Red MRC 090M Filter can result in very dark skies with extremely defined clouds. Shades of green among foliage can become strongly differentiated from neighboring shades of yellow, orange, or red, while light skin tones can be rendered as white or near-white. Additionally, this filter can also minimize the presence of haze caused by the bluish cast of daylight.
To prevent internal ghosting and reflections, each glass surface includes eight layers of anti-reflection coating. This Multi-Resistant Coating (MRC) also offers greater protection to the filter substrate and helps it to stay clean for longer than with uncoated filters. B+W filters are constructed from Schott glass for increased optical clarity. This filter features an F-Pro brass filter ring for durability as well as jamming prevention . - Increases image contrast when photographing using a film camera system with black-and-white film installed
- Produces very dark shades of grey from green to blue-colored subjects and very light shades of grey from yellow, orange, or red subjects than without a filter
- When applied to black-and-white photography, can result in very dark skies with extremely defined clouds, strongly differentiated green foliage, light skin tones rendered as white or near-white, and minimizes the presence of haze caused by the bluish cast of daylight
- 0.7 density and 5x filter factor create up to a two and one-third stop reduction of light
- Multi-coated to prevent internal ghosting and reflections
- Constructed from Schott glass for optical clarity
- F-Pro brass filter ring helps to prevent jamming and provides additional strength
- Plastic case included for storage and transport
In the Box B+W 60mm Light Red MRC 090M Filter Filter Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the B W 60mm Light Red MRC 090M Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersB+W 66-040578 Specs | Filter Factor/Density | 0.7 (2.3 Stops) 5x | | Circular Size | 60 mm | | Front Accessory Thread / Bayonet | 60 mm | | Filter Material | Glass | | Coatings | Multi-Coating | | Grade | Equivalent to Wratten 25 | | Color Type | Black-and-White Contrast | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 3.7 x 3.7 x 0.7" |
