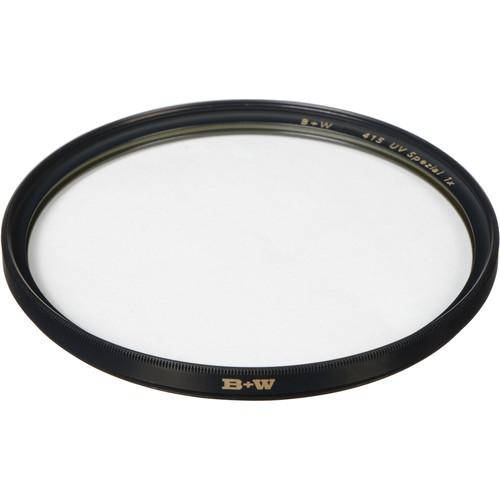

Product description The B+W 72mm Strong UV Absorbing 415 Filter is designed to help maintain image sharpness when photographing subjects that emit fluorescence while being exposed to a UV excitation light.
Fluorescence is a process that begins with chemical compounds called fluorophores as they absorb light energy from an outside source. Atoms and molecules within the fluorophores then emit their own light at lower energies and wavelengths that correspond to the original light source, making the fluorophores appear to glow. The proteins in various plants and animals contain fluorophores, creating the opportunity for unusual or unique images. Similarly, minerals distributed within rocks can produce a wide variety of fluorescent reactions and patterns. Since UV wavelengths with their relatively high energy levels can help yield intense fluorophore reactions, UV light sources are frequently considered ideal for producing colorful and easy-to-photograph fluorophore effects.
However, reflected light from a UV lamp used to excite the atoms and molecules within fluorophores may not fully converge with the visible light entering a lens and the camera it is attached to, resulting in chromatic aberrations within an image. Upon close inspection, such chromatic aberrations can appear as purple fringes along the edges of a subject or other photographed objects. When viewed from a distance, these purple fringes also have the overall effect of decreasing contrast along those edges, making an image affected by chromatic aberrations appear unsharp, or slightly out of focus. The B+W 72mm Strong UV Absorbing 415 Filter helps capture sharp images featuring fluorescing subjects by blocking reflected light from a UV lamp being used to provide the energy needed to initiate a fluorophore reaction, while allowing the resulting glow into your lens and camera.
B+W filters are constructed from Schott glass for increased optical clarity and color fidelity. This filter features an F-Pro brass filter ring for durability as well as jamming prevention. - Helps maintain image sharpness when photographing subjects that emit fluorescence while being exposed to a UV excitation light.
- Blocks UV light used to trigger fluorescence that could also result in chromatic aberrations, causing an image to appear unsharp or slightly out of focus while allowing the fluorescent glow to be photographed or recorded.
- Does not require adjustments to exposure while in use.
- Constructed from Schott glass for optical clarity.
- F-Pro brass filter ring helps to prevent jamming and provides additional strength.
- 72mm front filter threads allow use with other filters.
- Plastic case for storage and transport.
In the Box B+W 72mm Strong UV Absorbing 415 Filter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the B W 72mm Strong UV Absorbing 415 Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersB+W 65-014340 Specs | Filter Type | Ultraviolet control | | Size | 72 mm | | Filter Factor | 1 (0 stop) | | Effect | Helps maintain image sharpness when photographing subjects that emit fluorescence while being exposed to a UV excitation light by blocking reflected UV light that could result in chromatic aberrations that decrease contrast along the along the edges of the subject or other photographed objects | | Construction | Schott glass | | Rear Thread | 72 mm | | Front Filter Thread Size | 72 mm | | Front Lens Cap Size | 72 mm | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 3.7 x 3.7 x 0.8" |
