User Manual for B W 77mm Close-Up 5 SC NL 5 Lens Click to enlarge the picture
Contents of the user manual for the B W 77mm Close-Up 5 SC
- Product category: Close-up Lens Filters B W
- Brand: B W
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for B W Close-up Lens Filters
|
User manual for the B W 77mm Close-Up 5 SC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any B W product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official B W user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a B W product will considerably shorten its lifespan!
|

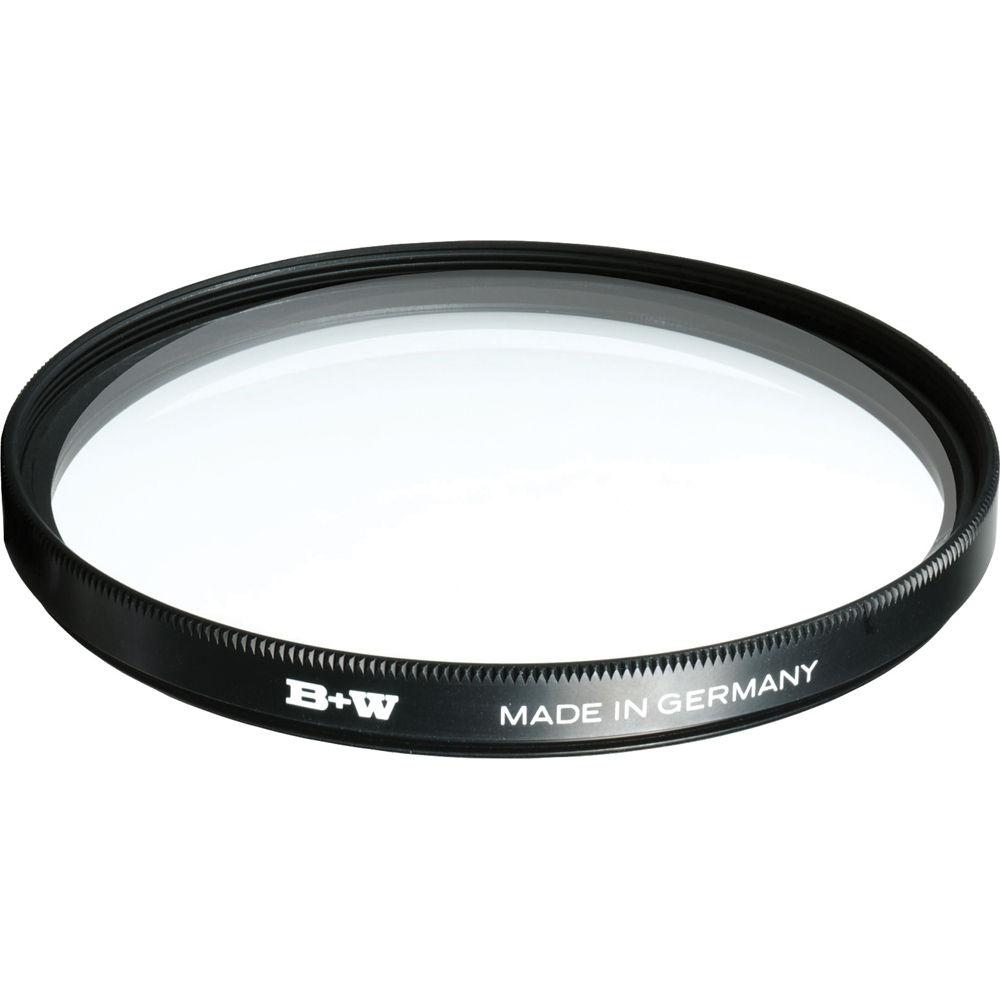

Product description The B+W 77mm Close-Up +5 SC NL 5 Lens offers the ability to achieve macro-like results with camera lenses that have 77mm front filter threads. A close-up lens is a magnifier that optically decreases the focal length of a camera lens placed behind it. This effect lessens the minimum focus distance between the camera lens and a subject. Magnification can then be obtained by decreasing the distance between the subject and the combined camera lens and close-up lens. The magnifying power of a close-up lens is indicated by its diopter strength. A close-up lens with a higher diopter number provides more relative magnification, and can be combined with other close-up lenses to increase or fine-tune the macro effect. This close-up lens has a diopter strength of +5. Diopter strengths of +1, +2, +3, or +4 are also available where this close-up lens type's effect becomes progressively stronger with each diopter strength number increase. To prevent internal ghosting and reflections, each glass surface of this lens includes one layer of anti-reflection coating. B+W close-up lenses are constructed from Schott glass for increased optical clarity. This close-up lens features an F-Pro brass filter ring for durability as well as jamming prevention. The B+W Close-Up +5 SC NL 5 Lens possesses a front surface with a high degree of curvature and no front filter threads. To combine this B+W 77 Close-Up +5 SC NL 5 Lens with other close-up lenses or filters, it must screwed onto the very top of any combination of stacked close-up lenses or filters. - Offers macro-like results for camera lenses that have a 77mm front filter threads
- Can be screwed on top of separately available close-up lenses with +1, +2, +3, or +4 diopter strengths and 77mm front threads, which allows the desired close-up effect to be varied and modified
- Constructed from Schott glass for optical clarity
- F-Pro brass filter ring helps to prevent jamming and provides additional strength
- Plastic case included for storage and transport
In the Box B+W 77mm Close-Up +5 SC NL 5 Lens Filter Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the B W 77mm Close-Up 5 SC NL 5 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersB+W 65-076665 Specs Diopter Strength | +5 | Shape | Circle | Circular Size | 77 mm | Front Accessory Thread / Bayonet | Unthreaded | Filter Material | Glass | | Package Weight | 0.25 lb | Box Dimensions (LxWxH) | 3.7 x 3.7 x 0.8" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
