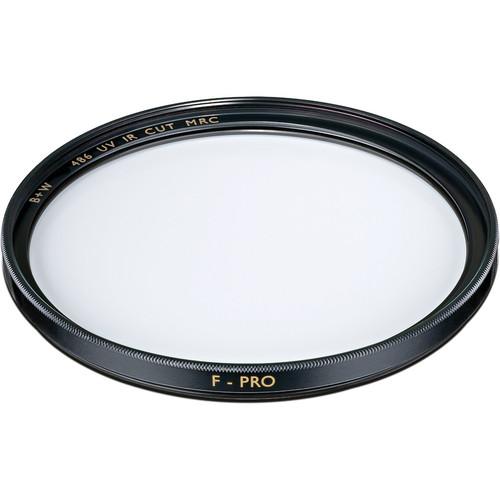

User Manual for B W Series 8 486 UV IR Cut Filter Click to enlarge the picture
Contents of the user manual for the B W Series 8 486 UV
- Product category: IR Control B W
- Brand: B W
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for B W IR Control
|
User manual for the B W Series 8 486 UV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any B W product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official B W user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a B W product will considerably shorten its lifespan!
|
Product description B+W's Series 8 486 UV/IR Cut Filter has a completely colorless glass carrier coated with a number of extremely thin, partially reflecting layers with precisely computed thicknesses, similar to a multi layer coating. This filter does not block by means of absorption, but rather by interference of the unwanted UV and IR radiation that is repeatedly reflected between these layers, affecting the wavelengths on both sides of the visible spectrum with a steep cut-off. It is used mainly on digital and video cameras with CCD sensors without an integrated IR protection filter, because the IR sensitivity of the CCD sensor would otherwise cause color changes and un-sharpness. That un-sharpness results from the chromatic aberration of the lenses that are only corrected for visible light. In the visible range, the transmission curve is very high and straight. This filter is completely clear and it requires no increase in exposure.
The Multi-Resistant Coating (MRC) is not only an extraordinarily effective multiple layer coating, it is also harder than glass, so that it protects filters from scratches (for instance when cleaning the filters), and it is also water and dirt repellent, thus facilitating filter maintenance.
This filter uses the standard B+W F-Pro filter mount, which has a front accessory thread and is made of brass. Compared to the earlier standard mount introduced in 2001, the F-Pro mount has become thinner. Now it can be used with wide angle lenses, including most 24mm focal lengths on a full frame body, without vignetting. Another advantage of the F-Pro mount is it's modified retaining ring, which is no longer threaded in from the front, but holds the filter glass in place from the back. When removing a filter or lens hood that has been screwed on too tight to the filter, the retaining ring is not at risk of loosening. Table of Contents
|
Upload User Manual
Have you got an user manual for the B W Series 8 486 UV IR Cut Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersB+W 66-1070165 Specs | Type | UV/IR Control | | Size | Series 8 | | Filter Factor | 1 | | Multi-Coated | Yes | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 3.8 x 3.75 x 0.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
