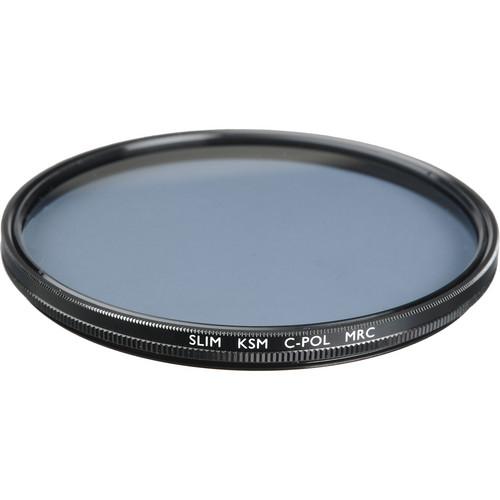

Product description The B+W Series 8 Kaesemann Circular Polarizer MRC Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
Kaesemann-type filters feature greater optical efficiency than regular polarizing foils and are more neutral in color. The polarizing foils are cemented between plano-parallel optical glass layers, which are then precision-polished to achieve the most accurate plano-parallel surface. This edge sealing protects the filter layers from humidity and are ideal for use with high-speed telephoto and apochromatic lenses.
The Multi-Resistant Coating (MRC) is both an anti-reflection coating as well as a protective surface. It helps to increase light transmission by reducing reflections, scattered light, and ghosting. Additionally, it offers greater protection to the filter substrate and stays cleaner for longer than uncoated filters.
B+W filters are constructed from high quality Schott glass for increased optical clarity and color fidelity. This filter features a brass filter ring for increased durability and is compatible with Series 8 filter holders. - Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
- Clears up haze in distant landscapes and provides more saturated, vivid colors.
- Strongest effect when used at a 90° from the sun.
- Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
- Kaesemann polarizing foils provide highly neutral coloring and higher image quality than conventional polarizing foils.
- Multi-Resistant Coating offers both protection to the glass and helps to improve light transmission and image quality.
- Constructed from high quality Schott glass for optical clarity.
- This filter is compatible with Series 8 filter holders and features a brass ring for additional strength.
In the Box B+W Series 8 Kaesemann Circular Polarizer MRC Filter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the B W Series 8 Kaesemann Circular Polarizer MRC Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersB+W 66-011610 Specs | Filter Type | Circular Polarizer | | Filter Factor | 2.5 (1.3 Stop) | | Shape | Circle | | Circular Size | 63.5 mm | | Rotating | Yes | | Front Accessory Thread / Bayonet | Unthreaded | | Filter Material | Glass | | Coatings | Multi-Coating | | | | Package Weight | 0.16 lb | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 1.0" |
