User Manual for Back-Bone Gear H5M12 Ribcage Modified GoPro HERO5 Black Click to enlarge the picture
Contents of the user manual for the Back-Bone Gear H5M12 Ribcage Modified GoPro
- Product category: Sports & Action Cameras Back-Bone Gear
- Brand: Back-Bone Gear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Back-Bone Gear Sports & Action Cameras
 |
User manual for the Back-Bone Gear H5M12 Ribcage Modified GoPro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Back-Bone Gear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Back-Bone Gear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Back-Bone Gear product will considerably shorten its lifespan!
|

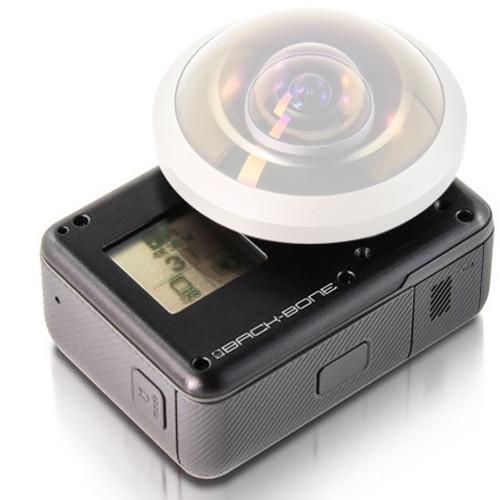

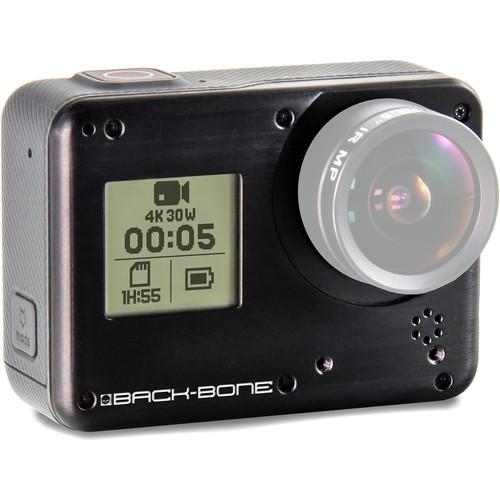

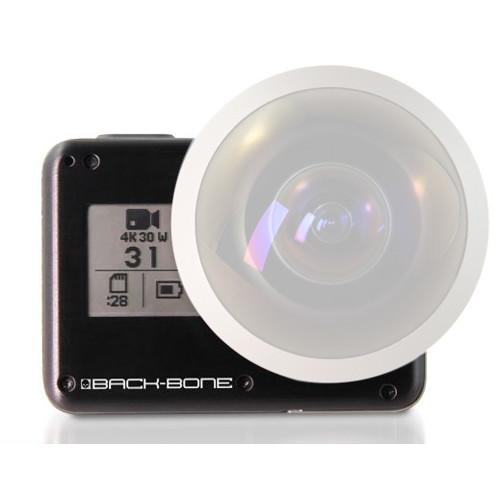

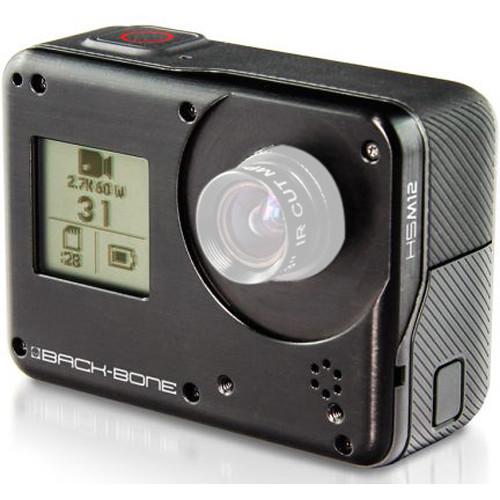

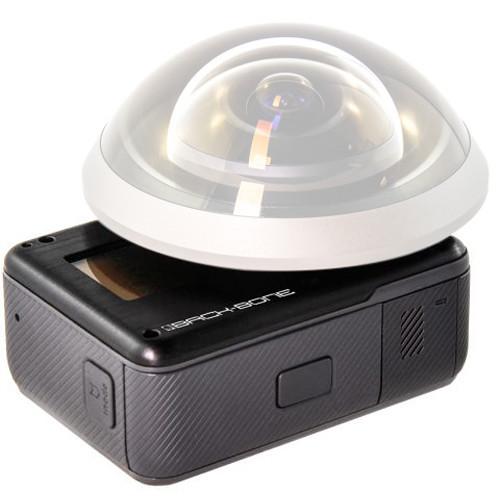

Product description New from Back-Bone Gear: Modified Action Cameras and Lenses Read More sxyxwtewxbadxceccyabdfttdxvqasxcd The H5M12 Ribcage Modified GoPro HERO5 Black from Back-Bone Gear features the advanced GoPro HERO5 Black action camera professionally installed in a heavy-duty yet ultra-lightweight cage with a built-in M12 lens mount (also called S-mount). It allows you to significantly expand your shooting options with ultra-high-resolution M12 lenses, including Entaniya 220/250/280/360° lenses, sold separately. The camera also comes with the native HERO5 Black lens, which has been redesigned to attach to the M12-mount, so you have an ultra-wide angle lens to shoot with right out of the box.
The Ribcage Modified HERO5 Black is ideal for 360 video capture with compatible lenses. The image sensor remains in position at the rear of the camera for the lowest possible parallax when two cameras are placed back-to-back or in other multi-camera VR arrays.
Furthermore, the camera is designed to fit the Frame, the Karma Harness, as well as the Super Suit Dive Housing for the HERO5 Black. (Installation in the Dive Housing is dependent on the size and weight of the lens you use.)
The HERO5 Black itself is a sophisticated camera with many special features. It has a 12MP image sensor capable of capturing up to Ultra HD 4K resolution video at 30 fps and 12MP stills in bursts of up to 30 images a second. It can also capture raw still image files. Features include advanced wind-noise reduction, voice control, digital video stabilization, wide dynamic range, built-in GPS for location tagging, automatic upload to the cloud, and a Linear FOV selection for correction of fish-eye distortion.

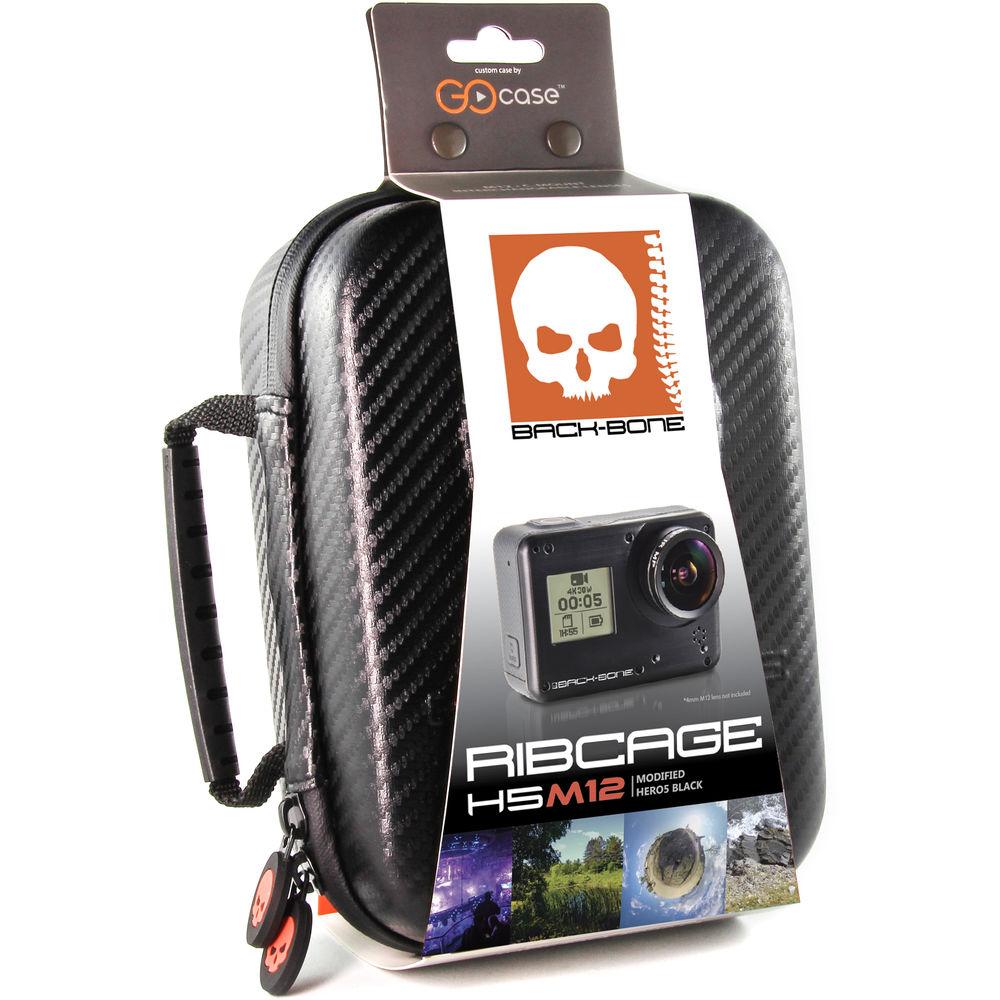

Included with the Ribcage Modified camera is a custom Back-Bone GOcase, which is durable and offers all the right pockets for neatly carrying the camera, lenses, and accessories. Note: This camera is not waterproof unless installed in the HERO5 Black Super Suit Dive Housing. - Key Features
-
- HERO5 Black professionally installed in a heavy-duty yet lightweight cage with a built-in, dedicated M12 lens mount
- Expand your shooting options with ultra-high-resolution M12 lenses, including Entaniya 220/250/280/360° lenses
- Includes native HERO5 Black lens modified to attach to the M12 mount
- Capture up to UHD 4K at 30 fps, 1080p at up to 120 fps, and more
- Up to 12MP photos in bursts up to 30 fps
- Time-lapse mode
- Raw file option
- Wide Dynamic Range mode
- Simple one-button control
- Wi-Fi and Bluetooth connectivity
- Advanced wind-noise reduction using 3 microphones
- Voice control
- Digital video stabilization
- Rear touchscreen display
- Automatic upload to the cloud
- Built-in GPS
- Video & Audio
- Video Recording Modes
Select the desired resolution to fit your project. Record in UHD 4K resolution up to 30 fps or switch to lower resolutions such as 1080p and 720p for access to higher frame rates, more FOV (Field Of View) options, and electronic stabilization. In 2.7K widescreen and lower resolutions, for instance, narrower FOV options open up, including Medium, Narrow, and the new Linear mode (only available in 2.7K and 1080p settings), which corrects the lens's barrel distortion.
Auto/Manual Exposure
All video recording modes can be as simple or advanced as you want them to be. If you only want to ensure that a shot is captured, auto-exposure is at your disposal. For those who are shooting less off-the-cuff footage and want complete control, manual control of exposure is also available.
Audio
Audio for video is recorded using three microphones. In normal conditions, the HERO5 Black will process the audio for a stereo signal. If high winds start affecting the audio, the HERO5 Black can intuit which microphone is picking up the best sound and automatically switch to that microphone in real-time and filter out any excess wind noise. While the audio will only be in mono, you will know that you're getting the highest possible audio quality. - Photo Modes
- Raw File Option
In addition to standard JPEG capture, the HERO5 Black can also capture raw images in the .GPR format. Raw images offer enthusiasts or professional photographers more flexibility after the photo is taken. Raw images can be processed after-the-fact for higher quality output.
WDR Mode
Bridging the gap between JPEG capture and raw, the WDR (Wide Dynamic Range) mode is also available. If the scene has dark shadows and bright highlights, WDR mode will retain better detail in those areas.
Burst Mode
Bursts of photos can be taken during high-action sequences to ensure that you capture the moment. The camera's buffer can fit up to 30 photos from a single burst, and burst durations can be set from six seconds to one second, effectively offering a 30 fps burst of 12MP photos.
Time-Lapse Mode
Record clouds floating by, traffic snaking through cityscapes, or stars and constellations tracing their way across the sky with the time-lapse mode. Set your interval from a picture every 1/2 second to every minute for different effects. - GoPro Apps
- GoPro apps Capture and Quik allow you to access and edit your GoPro footage with simple to use yet powerful functions. There's also GoPro Plus, which lets you access your GoPro content on the cloud.
GoPro Capture (iOS/Android)
Use your iOS or Android device to live-preview and play back shots, control your GoPro, and share on the fly.
- Live preview makes it easy to frame the perfect shot
- Get full remote control of all camera functions
- Share photos and videos to Instagram, Facebook, Twitter and more
GoPro Quik (iOS/Android)
Edit videos with just a few taps.
- Analyze your photos and video clips to find great moments
- Adds transitions and effects, and sync everything to the beat of the music
- Customize your story with text, filters, music, and more
GoPro Quik | Desktop (Mac/Windows)
Import and edit your videos with just a few clicks.
- Transform your footage into edited videos synced to music
- Automatically import your photos and videos and share your best shots
- Comes bundled with GoPro Studio for more advanced editing
GoPro Plus (Cloud-Subscription)
Access your GoPro footage wherever you are, and create and share your story.
- Auto upload to the cloud
- Access your footage in the cloud, then use Quik to edit on your phone or computer
- Enjoy your photos and videos from your phone or TV using the optional AirPlay and Apple TV
- Unlock an expanded library of soundtracks for your footage - Custom Back-Bone GOcase
-
- Fits camera, lenses, and accessories
- Durable 4-layer construction
- Custom cut foam interior
- Removable accessory pouch
- Water-resistant hard shell and waterproof zipper
- Microsuede lining for scratch-free protection
- Included carabiner, loop, and handle
UPC: 645871595387 In the Box Back-Bone Gear H5M12 Ribcage Modified GoPro HERO5 Black (M12 Mount) USB-C Cable GoPro Mounting Frame Battery Original HERO5 Black Lens (Prepared for Use) HERO5 Black Lens Mounting Ring Custom Back-Bone GOcase Focus Rings Mounting Buckle Curved-Surface Adhesive Mount Flat-Surface Adhesive Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Back-Bone Gear H5M12 Ribcage Modified GoPro HERO5 Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBack-Bone Gear Ribcage Specs | | | Sensor | 1-Chip CMOS | | Sensor Resolution | 12 MP | | | | Recording Media | x microSD/HC/XC | | Video Format | 3840 x 2160p at 24/25/30 fps (MP4)
2704 x 2028p at 25/30 fps (MP4)
2704 x 1520p at 24/25/30/48/50/60 fps (MP4)
1920 x 1440p at 24/25/30/48/50/60/80 fps (MP4)
1920 x 1080p at 24/25/30/48/50/60/80/90/120 fps
1280 x 960 at 50/60/120 fps (MP4)
1280 x 720 at 25/30/50/60/100/120/240 fps (MP4)
854 x 480 at 240 fps (MP4) | | Aspect Ratio | 16:9
4:3 | | Still Image Resolution | Raw: 12 Megapixel
JPEG: 12 Megapixel | | Channels | 2.0-Channel Stereo | | Audio Format | WAV | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 2" | | Status Display | Yes | | | | Burst Photo | 30 Photos / 1 Second | | | | Image Stabilization | Digital | | Waterproof Depth Rating | None | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Wi-Fi | Yes | | | | Outputs | 1 x Micro-HDMI (Type D) | | Microphone Input | Yes USB-C port for optional GoPro Pro 3.5mm Mic Adapter | | Headphone Jack | No | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 1220 mAh | | Charging Method | AC Adapter
USB | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.1 x 6.1 x 3.2" |
