Product description New from Back-Bone Gear: Modified Action Cameras and Lenses Read More The H5PRO Ribcage Modified GoPro HERO5 Black from Back-Bone Gear features the advanced GoPro HERO5 Black action camera professionally installed in a heavy-duty yet ultra-lightweight cage that supports interchangeable lens mounts, allowing you to significantly expand your shooting options. It comes with an M12-mount (also called S-mount), CS-mount, and 5mm C-mount ring that attaches to the CS-mount and allows you to use professional C-mount lenses.

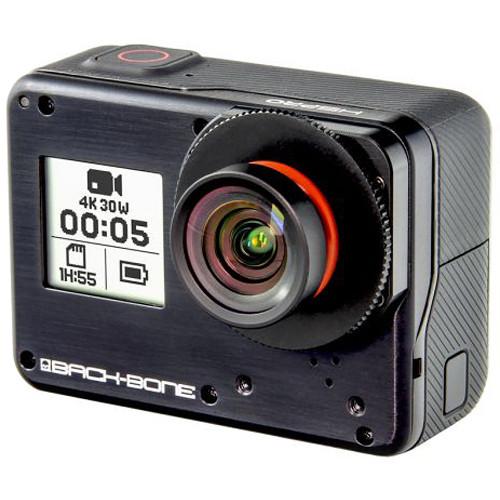

The camera also comes with the native HERO5 Black lens, which has been redesigned to attach to the M12-mount, so you have an ultra-wide angle lens to shoot with right out of the box.
The CS-mount is limited to varifocal lenses only, but does directly support select Entaniya, iZugar, and other fixed focal length lenses that allow for high-resolution, high frame rate 360° spherical VR video capture with fewer cameras.

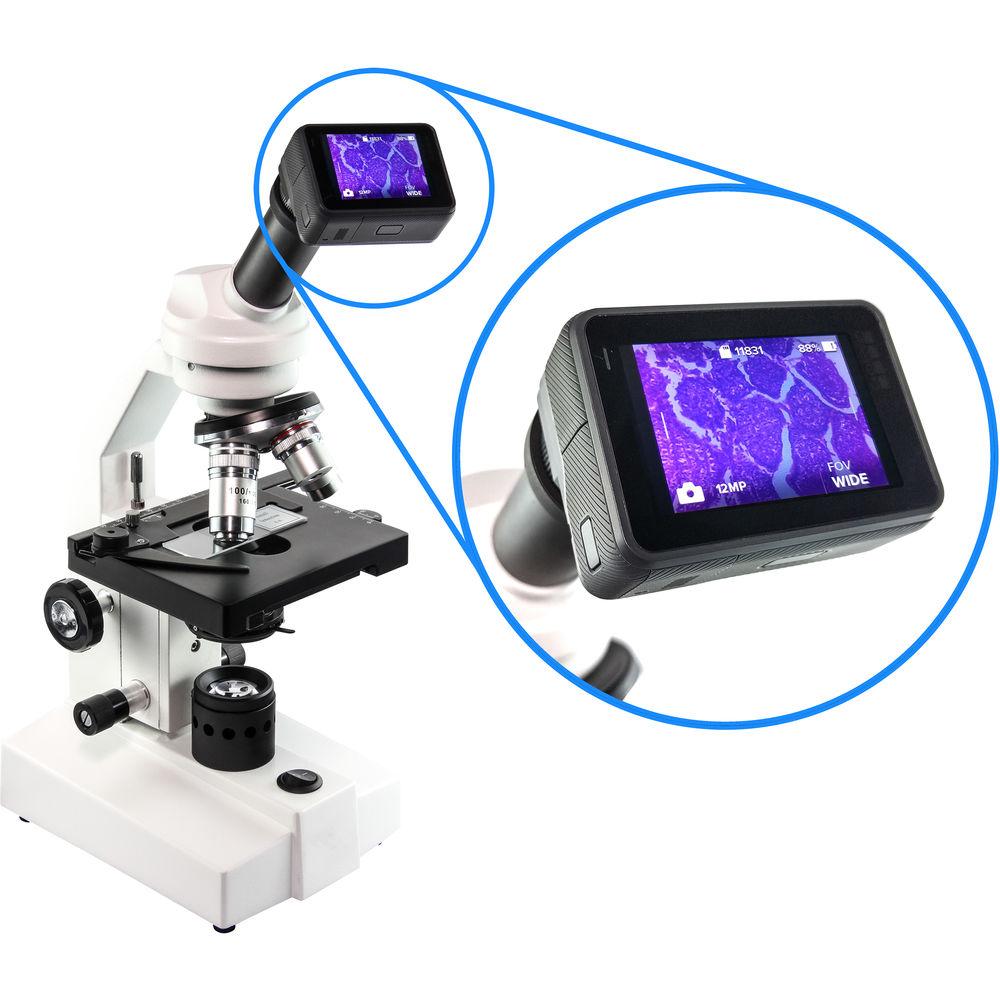

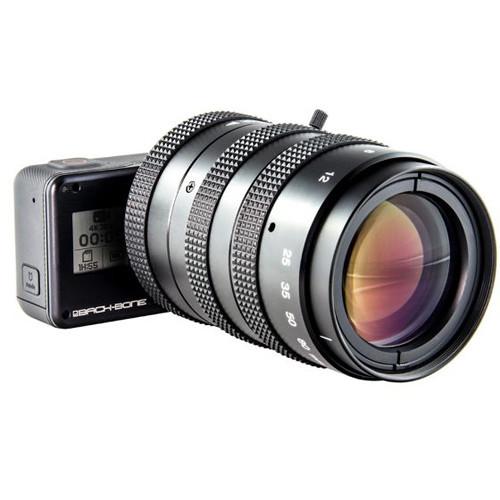

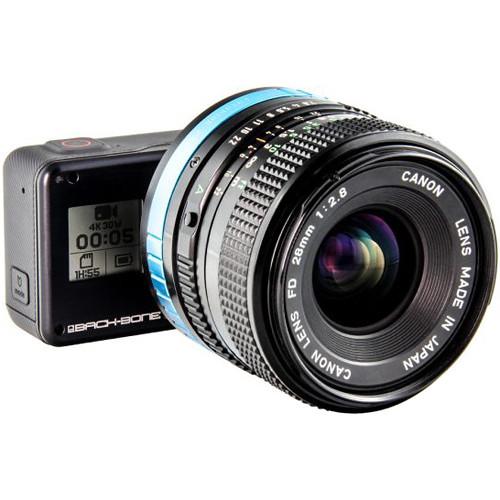

C-mount compatibility, however, is where this camera really takes off. There is a large variety of vintage C-mount lenses, such as those designed for 16mm movie cameras. C-mount lenses are also commonly used in scientific and medical imaging equipment, so the camera can be connected directly to many microscopes and telescopes, and you can additionally insert custom filters in order to capture specific wavelengths.
Among the advantages of using these optional C-mount lenses is the ability to manually control focus, zoom, and iris, achieve more cinematic depth of field, and shoot macro images, depending on the lens. In addition to that, the advantage of interchangeability means you can use one type of lens when using the camera on large gimbals and another when using it on small gimbals and drones.
The HERO5 Black itself is a sophisticated camera with many special features. It has a 12MP image sensor capable of capturing up to Ultra HD 4K resolution video at 30 fps and 12MP stills in bursts of up to 30 images a second. It can also capture raw still image files. Features include advanced wind-noise reduction, voice control, digital video stabilization, wide dynamic range, built-in GPS for location tagging, automatic upload to the cloud, and a Linear FOV selection for correction of fish-eye distortion.

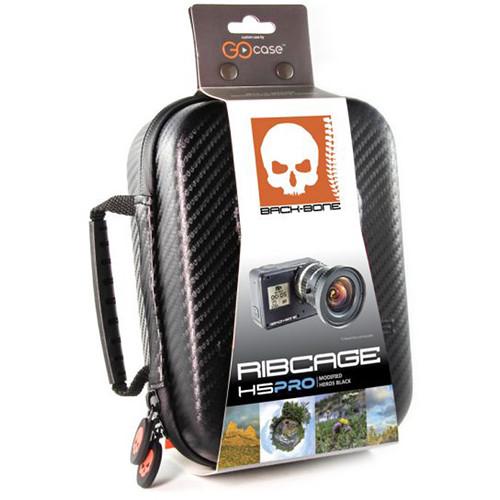

Included with the Ribcage Modified camera is a custom Back-Bone GOcase, which is durable and offers all the right pockets for neatly carrying the camera, lenses, and accessories. - Key Features
-
- HERO5 Black professionally installed in a heavy-duty yet lightweight cage with interchangeable lens mount support
- Includes interchangeable M12-mount (also called S-mount) and CS-mount lens mounts

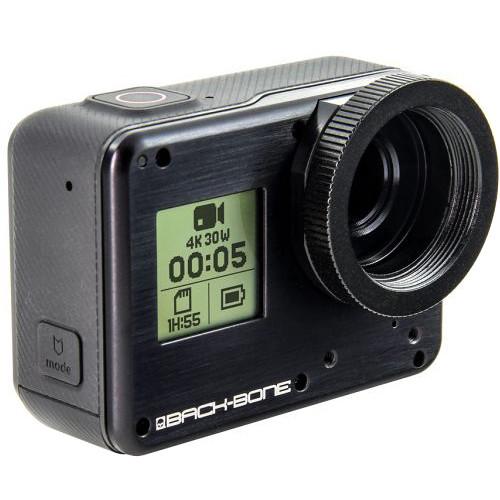

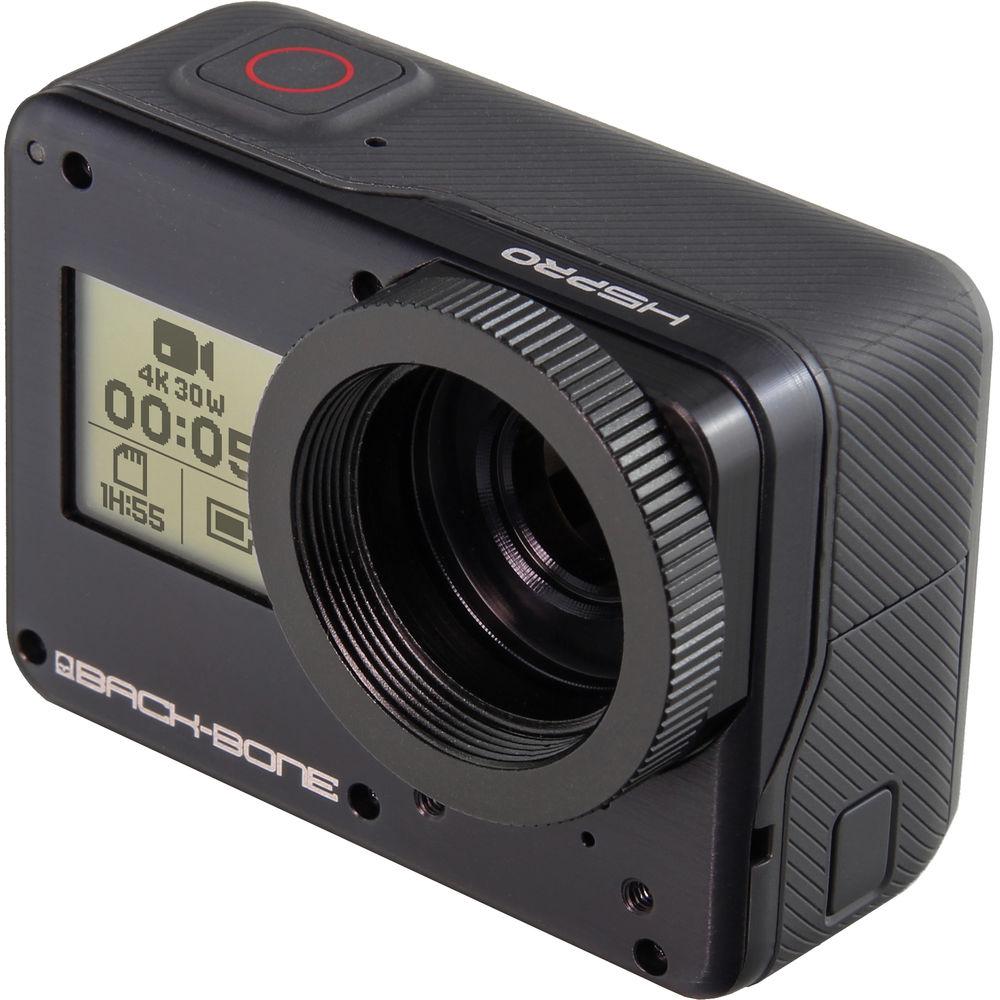

- Includes 5mm C-mount ring that allows using numerous professional C-mount lenses
- Includes native HERO5 Black lens modified to attach to the M12 mount
- Supports Entaniya, iZugar, and other lenses for 360° spherical VR capture
- Karma ready with compatible lenses
- Capture up to UHD 4K at 30 fps, 1080p at up to 120 fps, and more
- Up to 12MP photos in bursts up to 30 fps
- Time-lapse mode
- Raw file option
- Wide Dynamic Range mode
- Simple one-button control
- Wi-Fi and Bluetooth connectivity
- Advanced wind-noise reduction using 3 microphones
- Voice control
- Digital video stabilization
- Rear touchscreen display
- Automatic upload to the cloud
- Built-in GPS
- Video & Audio
- Video Recording Modes
Select the desired resolution to fit your project. Record in UHD 4K resolution up to 30 fps or switch to lower resolutions such as 1080p and 720p for access to higher frame rates, more FOV (Field Of View) options, and electronic stabilization. In 2.7K widescreen and lower resolutions, for instance, narrower FOV options open up, including Medium, Narrow, and the new Linear mode (only available in 2.7K and 1080p settings), which corrects the lens's barrel distortion.
Auto/Manual Exposure
All video recording modes can be as simple or advanced as you want them to be. If you only want to ensure that a shot is captured, auto-exposure is at your disposal. For those who are shooting less off-the-cuff footage and want complete control, manual control of exposure is also available.
Audio
Audio for video is recorded using three microphones. In normal conditions, the HERO5 Black will process the audio for a stereo signal. If high winds start affecting the audio, the HERO5 Black can intuit which microphone is picking up the best sound and automatically switch to that microphone in real-time and filter out any excess wind noise. While the audio will only be in mono, you will know that you're getting the highest possible audio quality. - Photo Modes
- Raw File Option
In addition to standard JPEG capture, the HERO5 Black can also capture raw images in the .GPR format. Raw images offer enthusiasts or professional photographers more flexibility after the photo is taken. Raw images can be processed after-the-fact for higher quality output.
WDR Mode
Bridging the gap between JPEG capture and raw, the WDR (Wide Dynamic Range) mode is also available. If the scene has dark shadows and bright highlights, WDR mode will retain better detail in those areas.
Burst Mode
Bursts of photos can be taken during high-action sequences to ensure that you capture the moment. The camera's buffer can fit up to 30 photos from a single burst, and burst durations can be set from six seconds to one second, effectively offering a 30 fps burst of 12MP photos.
Time-Lapse Mode
Record clouds floating by, traffic snaking through cityscapes, or stars and constellations tracing their way across the sky with the time-lapse mode. Set your interval from a picture every 1/2 second to every minute for different effects. - GoPro Apps
- GoPro apps Capture and Quik allow you to access and edit your GoPro footage with simple to use yet powerful functions. There's also GoPro Plus, which lets you access your GoPro content on the cloud.
GoPro Capture (iOS/Android)
Use your iOS or Android device to live-preview and play back shots, control your GoPro, and share on the fly.
- Live preview makes it easy to frame the perfect shot
- Get full remote control of all camera functions
- Share photos and videos to Instagram, Facebook, Twitter and more
GoPro Quik (iOS/Android)
Edit videos with just a few taps.
- Analyze your photos and video clips to find great moments
- Adds transitions and effects, and sync everything to the beat of the music
- Customize your story with text, filters, music, and more
GoPro Quik | Desktop (Mac/Windows)
Import and edit your videos with just a few clicks.
- Transform your footage into edited videos synced to music
- Automatically import your photos and videos and share your best shots
- Comes bundled with GoPro Studio for more advanced editing
GoPro Plus (Cloud-Subscription)
Access your GoPro footage wherever you are, and create and share your story.
- Auto upload to the cloud
- Access your footage in the cloud, then use Quik to edit on your phone or computer
- Enjoy your photos and videos from your phone or TV using the optional AirPlay and Apple TV
- Unlock an expanded library of soundtracks for your footage - Custom Back-Bone GOcase
-
- Fits camera, lenses, and accessories
- Durable 4-layer construction
- Custom cut foam interior
- Removable accessory pouch
- Water-resistant hard shell and waterproof zipper
- Microsuede lining for scratch-free protection
- Included carabiner, loop, and handle
UPC: 645871595394 In the Box Back-Bone Gear H5PRO Ribcage Modified GoPro HERO5 Black (M12, CS, and C-Mount) M12 Lens Mount CS Lens Mount 5mm C-Mount Ring Original HERO5 Black Camera Lens (Prepared for Use) Battery GoPro Mounting Frame 2 x IR-Cut Filters M12 locking ring Plastic Cap USB-C Cable Curved Adhesive Mount Flat Adhesive Mount Mounting Buckle Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Back-Bone Gear H5PRO Ribcage Modified GoPro HERO5 Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBack-Bone Gear Ribcage Specs | | | Sensor | 1-Chip CMOS | | Sensor Resolution | 12 MP | | | | Recording Media | x microSD/HC/XC | | Video Format | 3840 x 2160p at 24/25/30 fps (MP4)
2704 x 2028p at 25/30 fps (MP4)
2704 x 1520p at 24/25/30/48/50/60 fps (MP4)
1920 x 1440p at 24/25/30/48/50/60/80 fps (MP4)
1920 x 1080p at 24/25/30/48/50/60/80/90/120 fps
1280 x 960 at 50/60/120 fps (MP4)
1280 x 720 at 25/30/50/60/100/120/240 fps (MP4)
854 x 480 at 240 fps (MP4) | | Aspect Ratio | 16:9
4:3 | | Still Image Resolution | Raw: 12 Megapixel
JPEG: 12 Megapixel | | Channels | 2.0-Channel Stereo | | Audio Format | WAV | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 2" | | Status Display | Yes | | | | Burst Photo | 30 Photos / 1 Second | | | | Image Stabilization | Digital | | Waterproof Depth Rating | None | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Wi-Fi | Yes | | | | Outputs | 1 x Micro-HDMI (Type D) | | Microphone Input | Yes USB-C port for optional GoPro Pro 3.5mm Mic Adapter | | Headphone Jack | No | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 1220 mAh | | Charging Method | AC Adapter
USB | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.7 x 6.4 x 3.3" |
