Product description - H6PRO - MODIFIED HERO6 BLACK

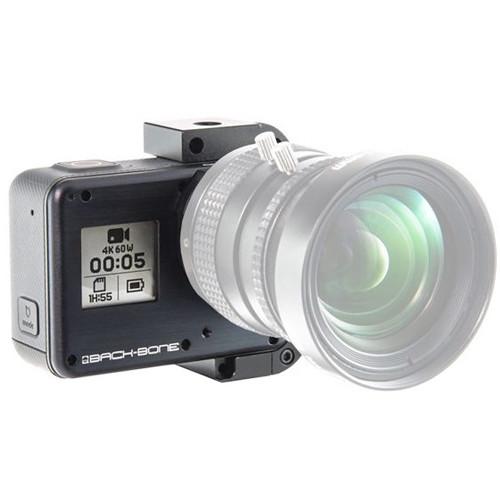

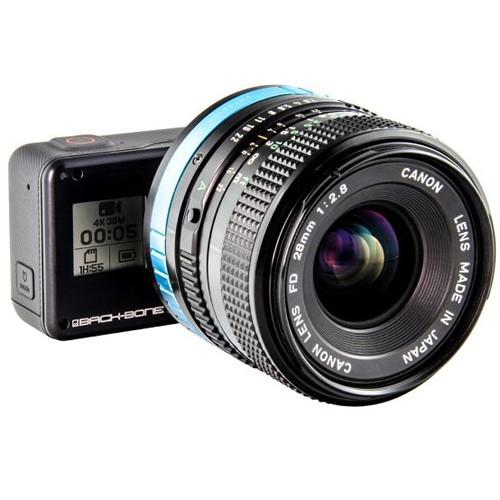

Based on the GoPro HERO6 Black, the Back-Bone Gear Ribcage H6PRO Modified GoPro HERO6 Black offers the versatile recording options and durability of the HERO6 platform while opening up the world of readily available interchangeable lenses. The added M12 mount can accept CS and C-Mount lenses using included adapters. Lenses supported by these mounts have been around for many years, yielding many cost-effective yet high-quality creative options with different looks and fields of view. The original GoPro HERO6 lens, modified for the M12 mount, has been included for usability right out of the box. Since only the front of the camera needs to be changed, the convenient features built into the HERO6 remain. Voice control, GPS, image stabilization, and the touchscreen function as normal. Plus, all the high frame rates and recording options, such as 4K at 60 fps, and 1080p at 240 fps, provide great ways to create dramatic imagery of your adventures.Note: The modification defeats the waterproof seal. The H6PRO is not waterproof. - Sidearm Tripod Mount Bracket
- The included Sidearm bracket replaces the port cover on the H6PRO and introduces standard tripod mounting points. This bracket will also work with stock camera models.
Note: Stock cameras will not be waterproof while the Sidearm is attached instead of the port cover - Use with Drones and Gimbals
- The H6PRO is compatible with the Karma when using small M12 lenses, and can be mounted to other aerial platforms and gimbals designed for the HERO6 Black. Interchangeable lenses allow you to customize your field of view by choosing your own lens—there's no need to sacrifice resolution for more zoom.
- Enable Spherical Video Capture

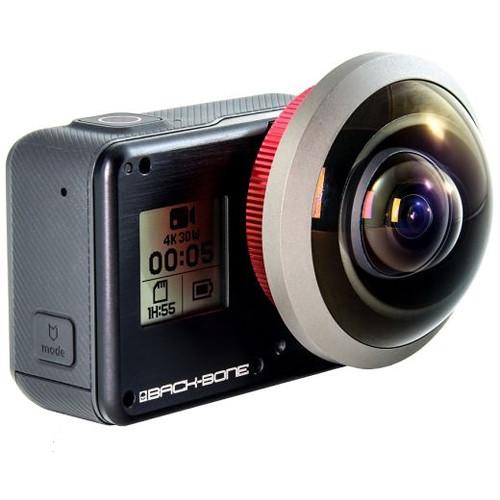

- Mount a circular fisheye lens, like those from Entaniya, iZugar, and others for an ultra-wide field of view. With multiple cameras, a full sphere can be captured. The wider FOV allows for simpler stitching algorithms to be employed, as fewer cameras are needed for the full spherical capture.
UPC: 037136048910 In the Box Back-Bone Gear Ribcage H6PRO Modified GoPro HERO6 Black Sidearm Tripod Mounting Bracket Battery Frame Mount 2 x IR Cut Filters 5mm to C-Mount Ring M12 to CS Adapter M12 Locking Ring HERO6 Black Lens HERO6 Lens Adapter Ring Plastic Cap USB-C Cable Curved Adhesive Mount Flat Adhesive Mount Mounting Buckle Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Back-Bone Gear Ribcage H6PRO Modified GoPro HERO6 Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBack-Bone Gear Ribcage Specs | | | Sensor | 1-Chip CMOS | | Sensor Resolution | 12 MP | | | | Recording Media | x microSD/HC/XC | | Video Format | 3840 x 2880 at 24/25/30 fps (60, 78 Mb/s MP4)
3840 x 2160p at 24/25/30/50/60 fps (60, 78 Mb/s MP4)
2704 x 2028p at 24/25/30/50/60 fps (MP4)
2704 x 1520p at 24/25/30/50/60/100/120 fps (MP4)
1920 x 1440p at 24/25/30/50/60 fps (MP4)
1920 x 1080p at 24/25/30/50/60/100/120/240 fps
1280 x 720 at 50/60 fps (MP4) | | Aspect Ratio | 16:9
4:3 | | Still Image Resolution | Raw: 12 Megapixel
JPEG: 12 Megapixel | | Channels | 2.0-Channel Stereo | | Audio Format | AAC
WAV | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 2" | | Status Display | Yes | | | | Burst Photo | 30 Photos / 1 Second | | | | Image Stabilization | Digital | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Wi-Fi | Yes | | | | Outputs | 1 x Micro-HDMI (Type D) | | Microphone Input | Yes USB-C port for optional GoPro Pro 3.5mm Mic Adapter | | Headphone Jack | No | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 1220 mAh | | Charging Method | AC Adapter
USB | | Dimensions (W x H x D) | 2.6 x 1.8 x 1.4" / 6.5 x 4.5 x 3.5 cm | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.3 x 6.0 x 3.4" |
