User Manual for Back-Bone Gear Ribcage HERO3 3 Modification Kit Click to enlarge the picture
Contents of the user manual for the Back-Bone Gear Ribcage HERO3 3 Modification
- Product category: Other Accessories Back-Bone Gear
- Brand: Back-Bone Gear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Back-Bone Gear Other Accessories
 |
User manual for the Back-Bone Gear Ribcage HERO3 3 Modification contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Back-Bone Gear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Back-Bone Gear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Back-Bone Gear product will considerably shorten its lifespan!
|

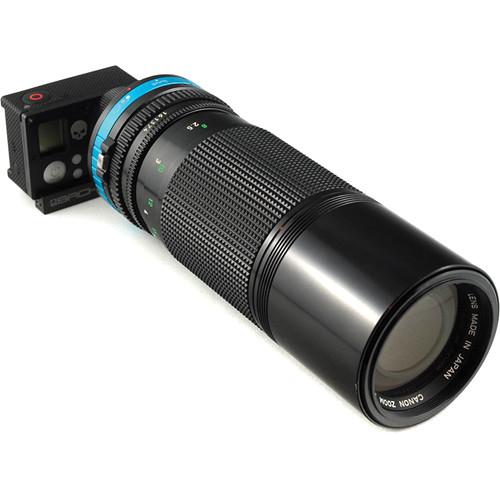

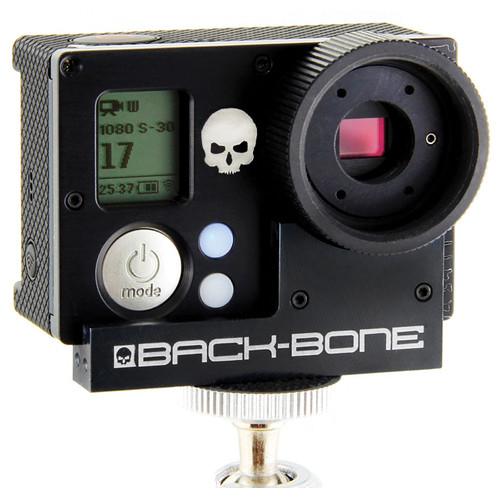

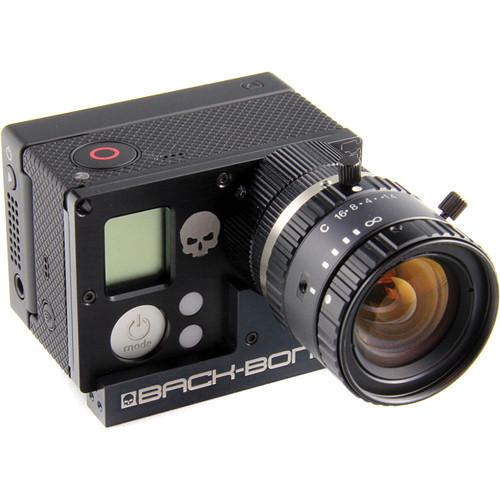

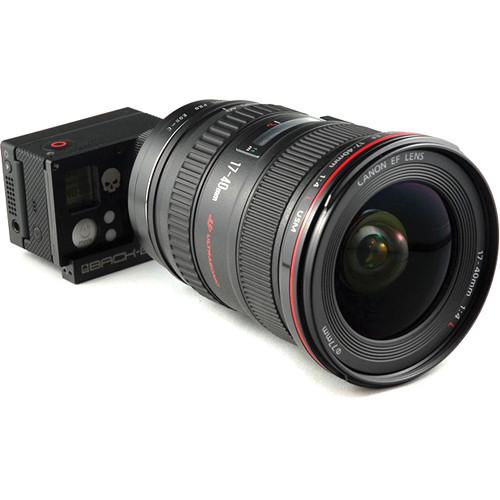

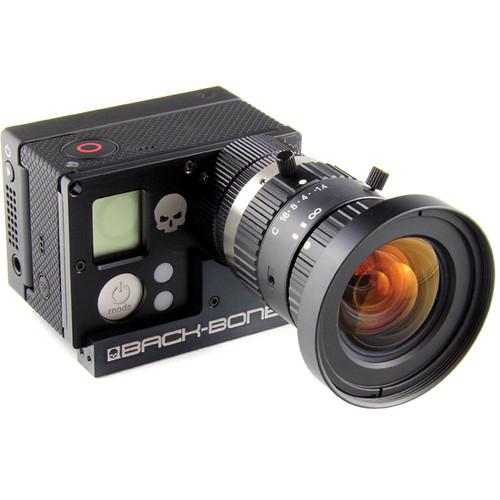

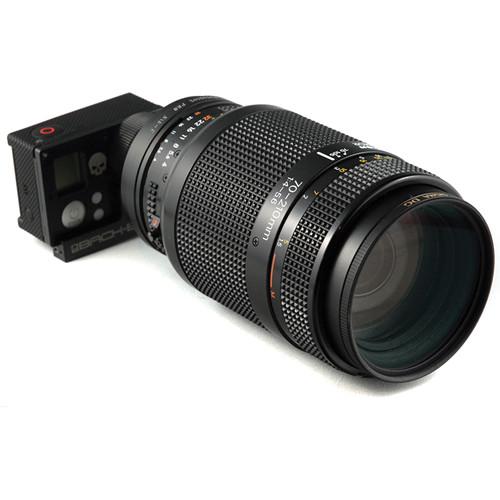

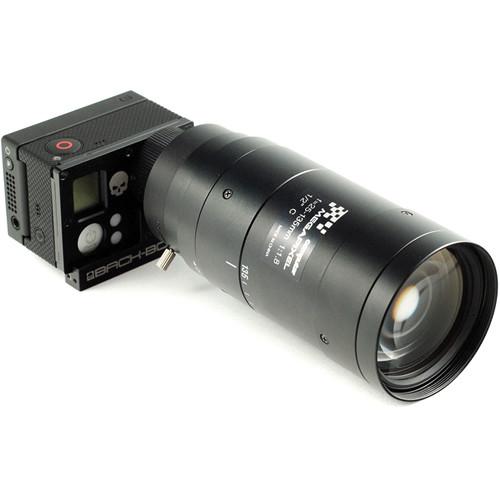

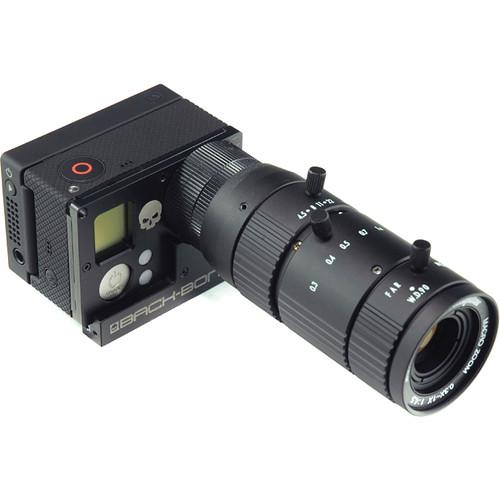

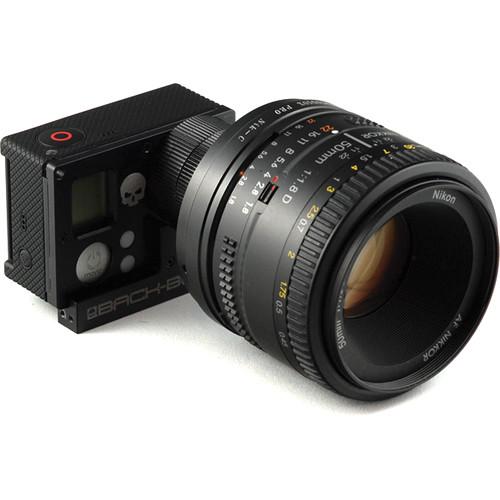

Product description The Ribcage HERO3/3+ Modification Kit from Back-Bone Gear replaces the lens and front of your GoPro HERO3 or HERO3+ camera with an aluminum plate and removable lens mount rings that allow you to use M12, CS-Mount, or C-Mount lenses, as well as other types of lenses with optional C-mount adapters. This lets you take advantage of all the benefits that professional lenses have to offer, including manual focus control and iris control, optical zoom, and macro shooting. Please be advised that this modification kit requires you to completely take apart and re-assemble your camera, which will void the manufacturer's warranty.
Included in the Modification Kit is a removable tripod mount adapter so you can use your camera with professional mounts and supports. Additionally, you use GoPro's optional The Frame mount to use the camera with GoPro-style mounting accessories. Also included in the kit are IR cut filters, which can be removed so you can see in the dark when shooting with any optional IR light source. - Key Features
-
- Compatible with GoPro HERO3/3+ Silver and Black cameras
- Custom modification kit for mounting M12 (S-Mount), CS-Mount, or C-Mount lenses
- Adjustable flange distance
- IR cut filters in removable trays
- Easy access to image sensor for cleaning
- Beveled opening for the power/mode button
- Tripod mount adapter included

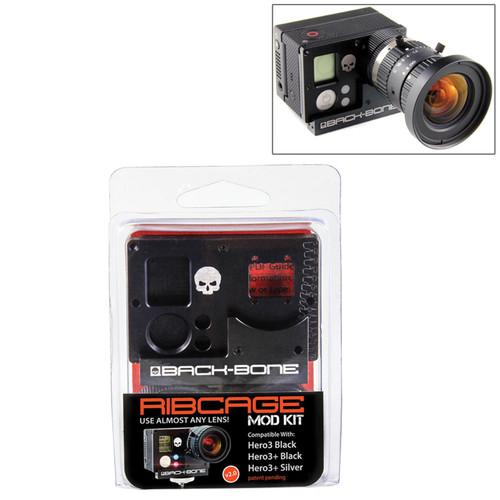

UPC: 737534847107 In the Box Back-Bone Gear Ribcage HERO3/3+ Modification Kit PCB Plate Cover Plate M12 Locking Ring CS-Mount Ring C-Mount Spacer 2 x IR-Cut Filter 2 x Filter Holder 4 x IR-Cut Stickers Plastic Stand-Off Electrical Jumper Protective Cap 2 x Micro Allen Key Screws, Connectors, and Hardware Tripod Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Back-Bone Gear Ribcage HERO3 3 Modification Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBack-Bone Gear BBRC001 Specs | Lens Compatibility | M12
CS-Mount
C-Mount | | Tripod Mount | 1/4"-20 (on included adapter) | | Dimensions | Excluding Lens Mount Rings: 2.32 x 1.61 x 0.20" (59 x 41 x 5 mm) | | Weight | Ribcage: 1.02 oz (29 g)
CS-Mount: 0.28 oz (8 g)
C-Mount Spacer: 0.14 oz (4 g)
Tripod Mount Attachment: 0.35 oz (10 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 3.5 x 2.7 x 0.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
