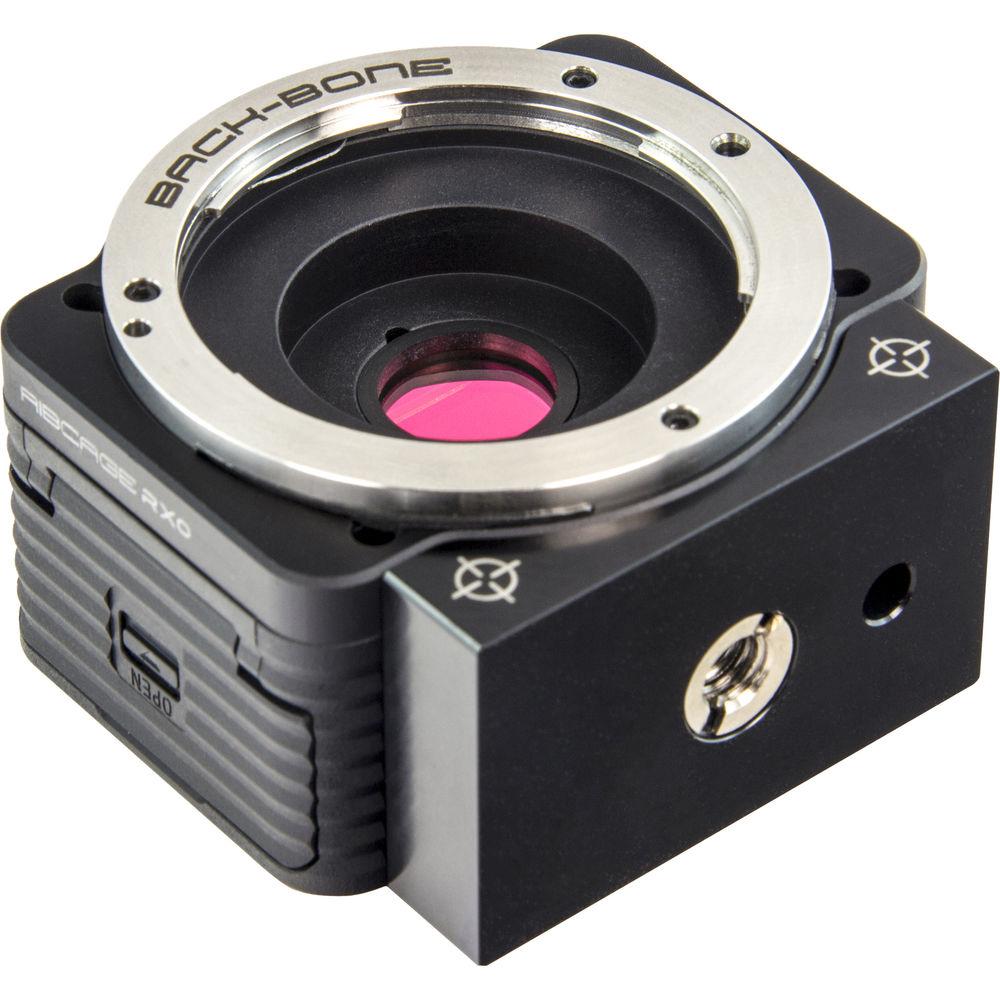

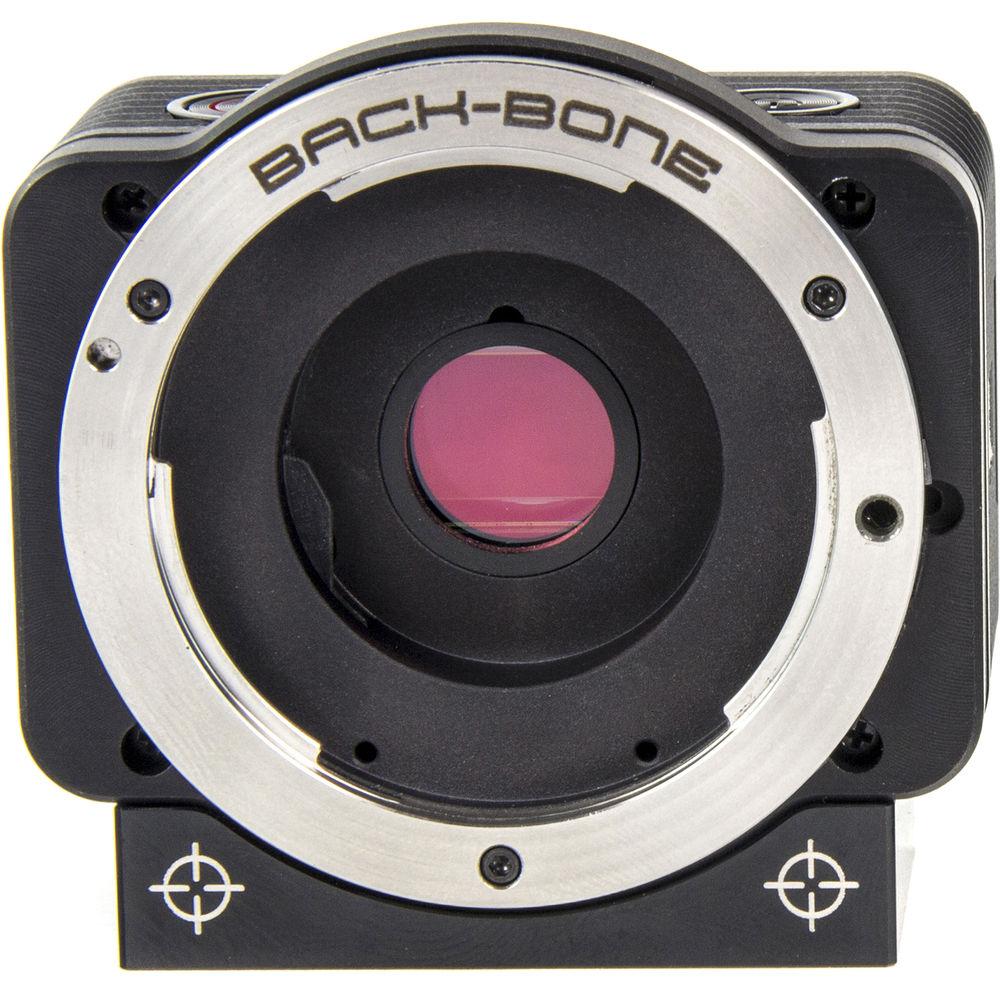

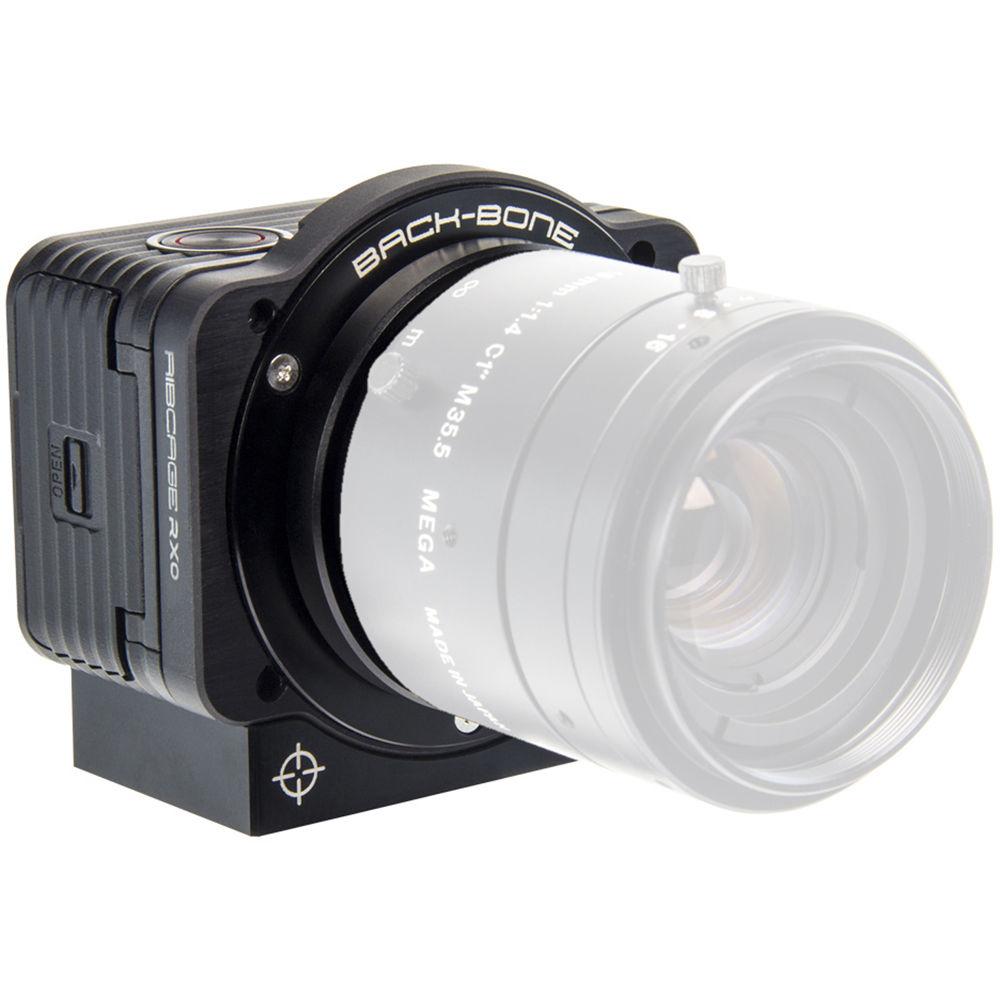

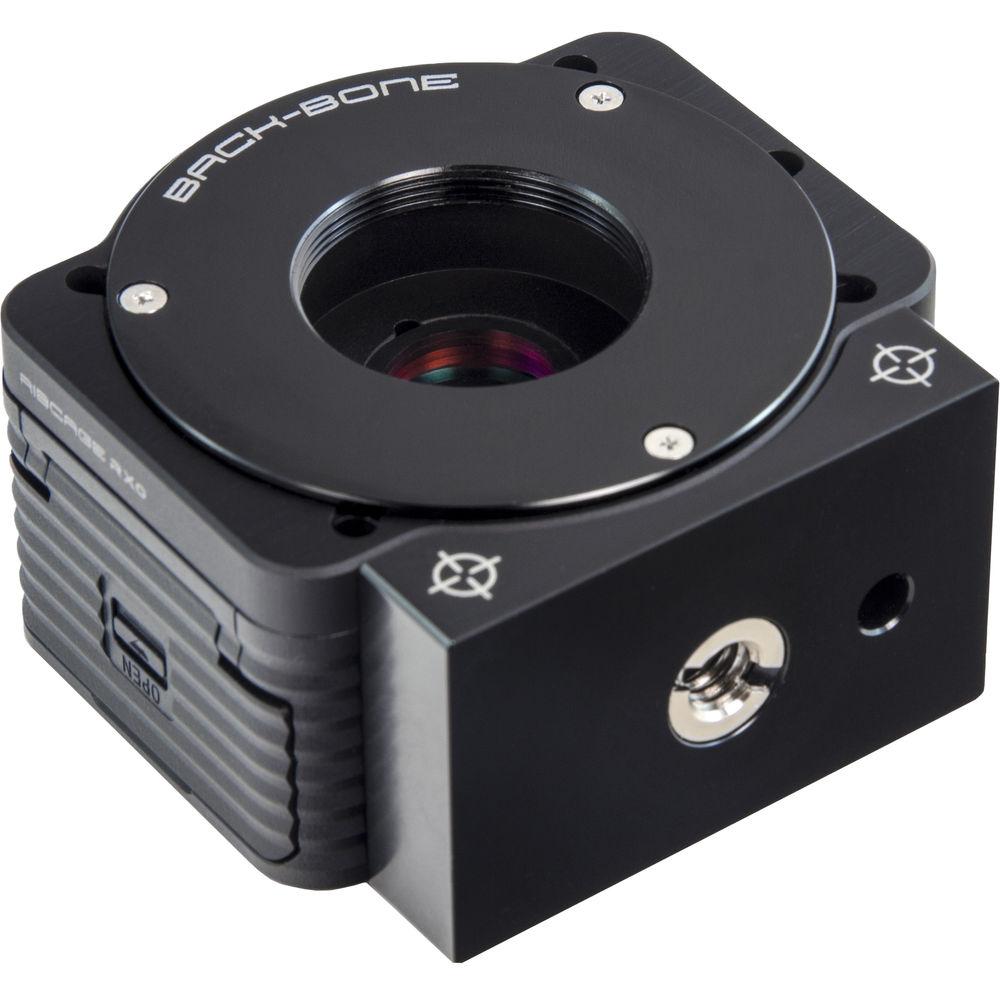

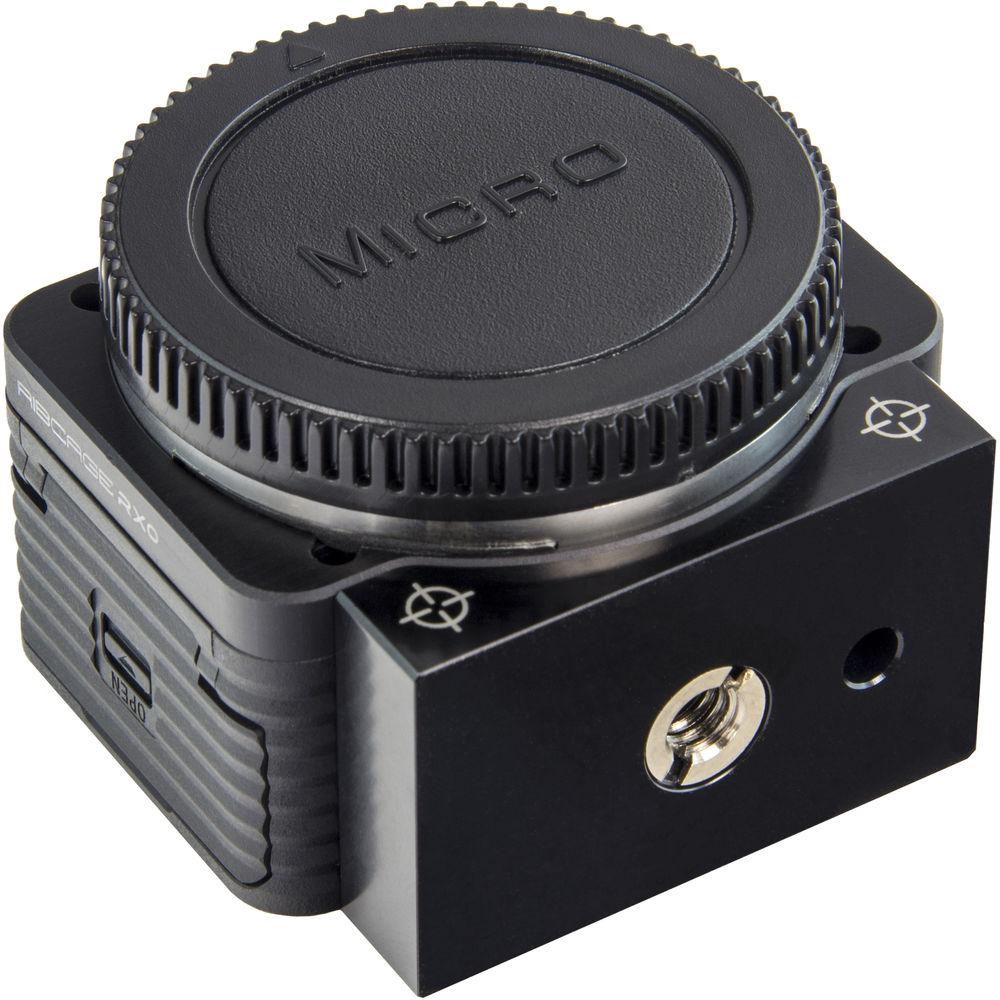

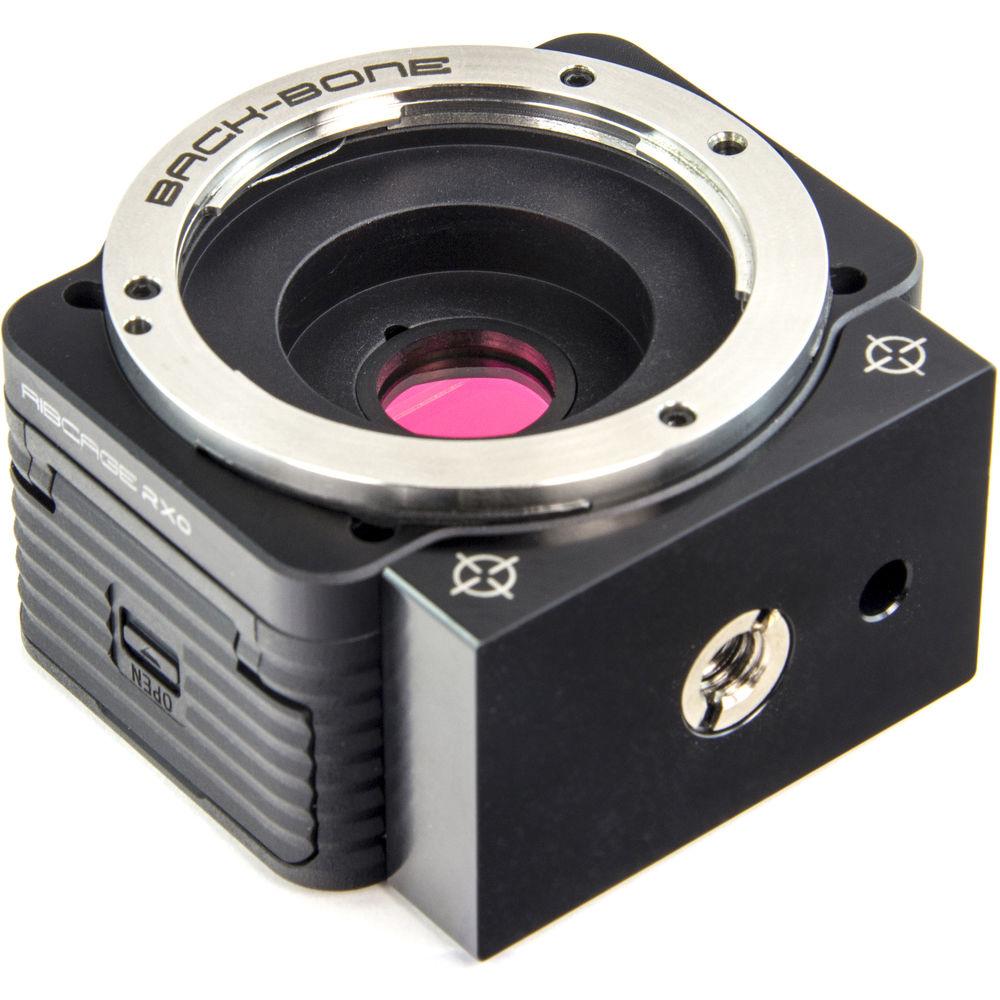

Product description The Back-Bone Gear Ribcage Modified Sony RX0 adds the option of using interchangeable lenses to the lightweight, ultra-compact Sony RX0 UHD 4K camera. The Ribcage Modified RX0 incorporates a passive MFT mount which can be switched out with the included ring to attach C-mount lenses. Use this RX0 with SLR or vintage cine-style lenses, or link the camera to a microscope, telescope, or other imaging device. This modified RX0 includes a removable IR-cut filter and an internal filter holder for controlling possible IR contamination. This camera maintains features of the Sony RX0 like a 21MP 1" stacked CMOS censor, 1080p60 internal recording, and UHD 4K video output via HDMI. Capture options include slow motion up to 1000 fps, shutter speeds up to 1/32000 second for crisp imaging, and Sony S-Log2 gamma for flexible post-production control. Sync and control up to five cameras using your smartphone and Bluetooth, or link to Wi-Fi to control greater than five units. Modified to improve cooling, the Ribcage Modified RX0 includes a removable mounting plate with both 3/8"-16 and 1/4"-20 tripod threads.Note: The modification defeats the RX0's waterproof seal. The Ribcage Sony RX0 is not waterproof. Note: * The passive MFT mount is for manual lenses only. If using C-mount, 1" or 1.1" format lenses are recommended. Features - Interchangeable MFT and C lens mounts, compatible with separately available lens adapters 1
Please Note: The passive MFT mount is for manual lenses only. 1 or 1.1" format lenses are recommended when using the C-mount. close - 21MP 1" stacked Exmor RS CMOS sensor provides optimal image quality and minimizes rolling shutter artifacts
- Outputs uncompressed UHD 4K to an external recorder, captures up to 1080p60 internally

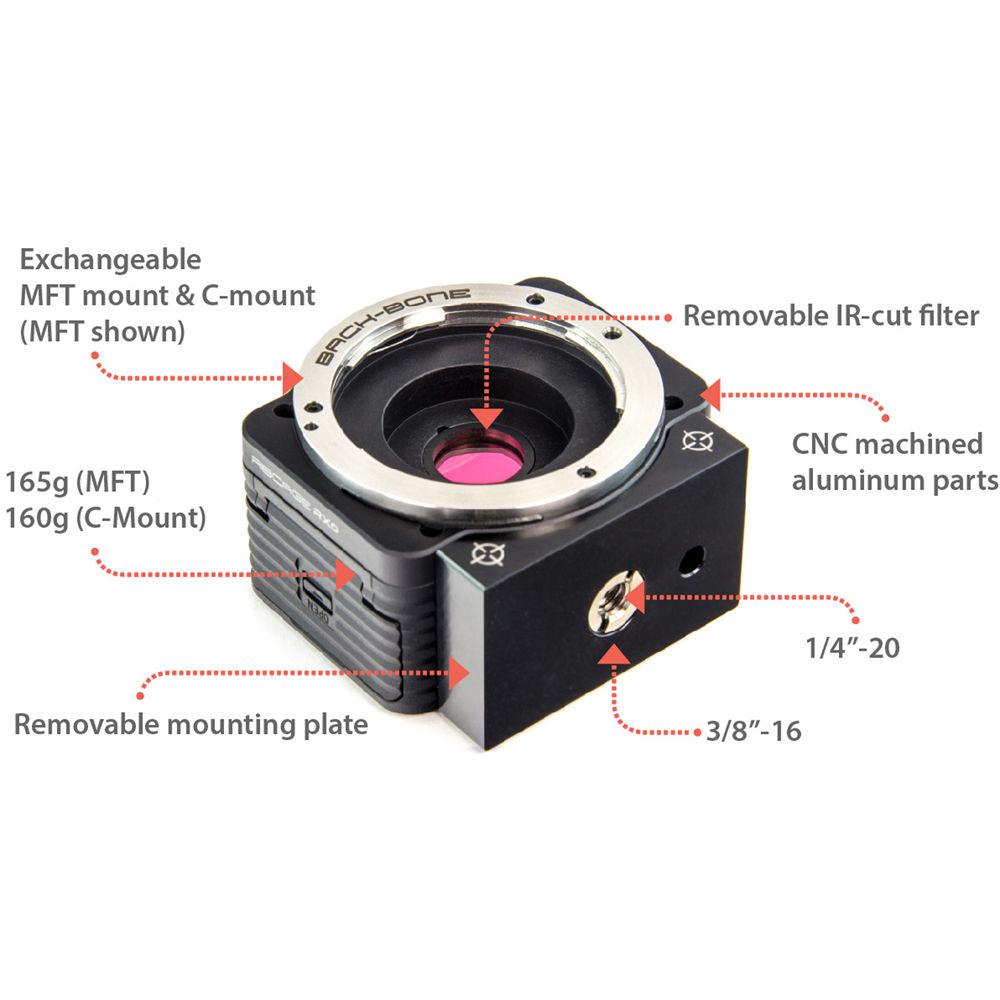

- Removable IR-cut filter; removable mount with 3/8"-16 and 1/4"-20 tripod threads
- Improved cooling allows for extended shooting
- High-speed sensor readout even at super slow motion up to 960/1000 fps
- S-Log2 gamma setting, and multiple picture profiles for image customization
- Shutter speeds up to 1/32,0000 per second for crisp, clear images
- Timecode sync and control of up to five cameras with one smartphone via Bluetooth; control greater than five cameras when connected to Wi-Fi
UPC: 037136048934 In the Box Back-Bone Gear Ribcage Modified Sony RX0 (MFT & C-Mount) C-Mount Lens Ring Mounting Plate with 3/8"-16 & 1/4"-20 Threads Micro-USB Charging Cable & Wall Plug Replacement IR-Cut Filter Back-Bone Pro GOcase Memory Card Protector Bracket Wrist Strap Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Back-Bone Gear Ribcage Modified Sony RX0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBack-Bone Gear Ribcage Specs | | | Sensor | 1-Chip 1" CMOS | | Sensor Resolution | 21 MP | | Effective Pixels | 15.3 MP (Video) | | Lens Mount | Micro Four Thirds
C (via Included Adapter) | | | | System | NTSC/PAL | | Recording Media | 1 x Memory Stick Micro, microSD, microSD/HC, microSD/HC/XC (128 GB Maximum) | | Video Format | 1920 x 1080p at 24/25/30/50/60 fps (50 Mb/s XAVC S) | | Slow Motion Mode | 1000 fps Recorded at 1920 x 1080p 240/250/480/500/960/1000 | | Still Image Resolution | JPEG / Raw: 15 Megapixel | | | | Display Type | LCD | | Touchscreen | No | | Screen Size | 1.5" | | Screen Resolution | 23,400 Dots | | Aspect Ratio | 4:3 | | | | Shutter Speed | 1/4 - 1/32000 Second (Photo, Video, Streaming) | | Photo ISO Range | 125 - 12,800 (Manual) Auto and manual modes. | | Video ISO Range | 125 - 12,800 (Manual) Auto and manual modes. | | Self-Timer | 2, 5, 10 Sec | | Remote Control | PlayMemories Mobile App, CCB-WD1 (Optional) | | | | Scene Modes | Preset: Yes | | Shockproof Rating | 6.5' / 2.0 m | | IP Rating | IPX8 | | White Balance Modes | 3000K
5500K
6500K
Auto
Cloudy
Cool White
Custom
Daylight
Fluorescent (Day White)
Fluorescent (Natural White)
Fluorescent (White)
Shade
Underwater | | Creative Effects | Yes | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Wi-Fi | Yes, 802.11b/g | | Tripod Mount | 3/8" - 16 3/8"-16 and 1/4"-20 with included mount. | | | | Inputs | 1 x USB 2.0 Type-A
1 x 1/8" / 3.5 mm Stereo Microphone In | | Outputs | 1 x Micro-HDMI (Type D)
1 x USB Micro-AB | | Video Output | HDMI: 3840 x 2160 | | Microphone Input | Yes | | | | Battery | Rechargeable Battery Pack, 3.7 VDC | | Charging Method | AC Adapter
USB | | Power Adapter | 5.0 VAC | | Power Consumption | Operating: 1.3 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 8.7 x 5.9 x 2.4" / 22.0 x 15.0 x 6.0 cm | | Weight | 1.76 lb / .8 kg | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 10.9 x 6.6 x 3.05" |
