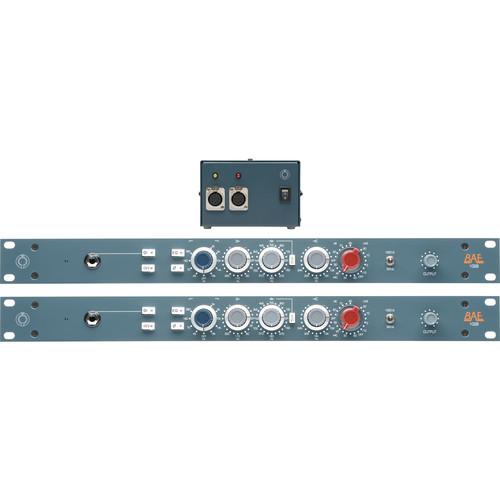

Product description The 1028 Kit from BAE is a pair of completely hand-wired, 3-band equalizers that use Carnhill (St. Ives) transformers, and offer more EQ frequencies in the mid and high sections. It can be used by musicians, producers, and engineers in audio applications such as broadcast TV, live sound, recording studios, rehearsals, and more. The 1028 features the same mic/line preamps as the 1073 EQ but has more frequencies to play with. In addition, the expanded EQ sections also allow you to play the mid-bell curve directly against the high, and low-shelves where they overlap. This capability opens the tone shaping possibilities in more musical ways. The 1028's back panel is built with an XLR mic input, an XLR line input, and an XLR output jack along with the DC power input jack. The front panel has one DI instrument input jack. Furthermore, the 48V phantom power is built-in and a switch on the front panel allows you to switch it on and off. The 1028 also includes a low pass filter giving it a total of 28 frequencies. A 24V PSU power supply is also included. - Expanded High EQ Frequencies
- 20 kHz and 24 kHz
- Expanded Mid EQ Frequencies
- 160 Hz, 270 Hz, 510 Hz, 8.2 kHz, and 10 kHz
In the Box BAE 1028 3-Band EQ (Pair), with Single Power Supply, Rackmount Kit 24V Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 1028 3-Band EQ , with Single Power Supply, Rackmount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBAE PAIR 1028WPS Specs | Frequency Response | 10 Hz to -3 dB at 55 kHz | | 3-Band Equalizer | HF: +/-16 dB fixed frequency shelving at 10 kHz, 12 kHz, 16 kHz, 20 kHz and 24 kHz
LF: +/-16 dB shelving with selectable frequencies of 35 Hz, 60 Hz, 110 Hz, and 220 Hz
MF: +/-18 dB +/-12 dB or +/-18 dB peaking with switchable selectable centre frequencies of 160 Hz, 270 Hz, 360 Hz, 510 Hz, 700 Hz, 1.6 kHz, 3.2 kHz, 4.8 kHz, 7.2 kHz, 8.2 kHz, and 10 kHz | | High Pass Filter | 18 dB per octave slope, switchable between 45 Hz, 70 Hz, 160 Hz, and 360 Hz | | Low Pass Filter | 18 dB per octave slope, switchable between 6 kHz, 8 kHz, 10 kHz, 14 kHz, and 18 kHz | | Mic Input Impedance | 1200/300 ohms | | Line Input Impedance | 10 kOhms | | DI Input Impedance | 150 kOhms | | Output Impedance | 65 ohms | | Common Mode Rejection Ratio | 100 dB min @ 60 Hz | | Maximum Output Level | +27.4 dBu @ 600 ohms | | Power Requirements | 115/230 VAC, 28 W | | Gain | 0 to 80 dB | | Equivalent Input Noise | -110 dBu; unweighted 300 kHz bandwidth | | Dimensions (W x H x D) | 19 x 1.8 x 9" (48 x 4.6 x 23 cm) per unit | | Weight | 10 lb (4.54 kg) per unit |
