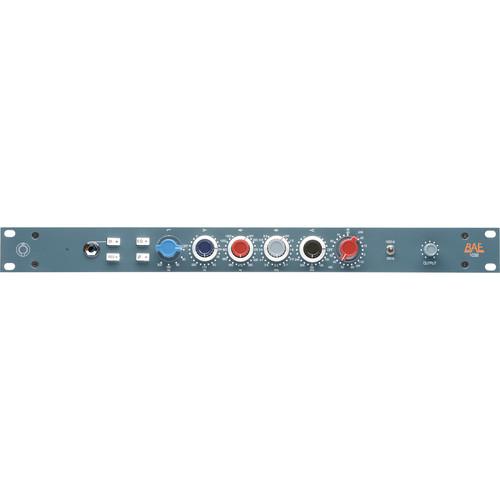

Product description This version of the BAE 1032 4-Band Mic/Line Preamp Module was inspired by the design of the classic 1081. It uses the same components and manufacturing techniques used in other modules that feature the same Class-A transformer-coupled circuits and modular cards for long-term serviceability.
In addition to a passive inductor high-pass filter, the 4-band equalizer provides greater coverage of the frequency spectrum. The high-mid and low-mid frequencies overlap for flexibility in correcting problematic frequencies.
The unit also provides a more comprehensive high-frequency shelf up to 24 kHz for extended high-frequency correction without compromising the midrange. Unlike the 1081, this unit utilizes a Class-A amplifier output stage. The unit incorporates Swiss-made Elma rotary switches to create a preamp that looks as good as it sounds. In the Box BAE 1032 4-Band Mic/Line Preamp Module (19" Rackmount Version, No Power Supply) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 1032 4-Band Mic Line Preamp Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBAE 1032NOPS Specs | Design | Class-A mic preamplifier with HI-LO selectable input impedance, balanced and floating | | Gain | 80 dB | | High Frequency EQ | ±16 dB selectable frequency shelving at 10, 12, or 16 kHz | | Low Frequency EQ | ±16 dB with selectable frequency shelving at 35, 60, 110, and 220 Hz | | Mid Frequency EQ | 1081 Upper Mid: ±18 dB peaking, fixed 'Q', selectable center frequencies of 1.5, 1.8, 2.2, 2.7, 3.3, 3.9, 4.7, 5.6, 6.8, and 8.2 kHz (inductor based)
1081 Lower Mid:1081 Upper Mid: ±18 dB peaking, fixed 'Q', selectable center frequencies of 220, 270, 330, 390, 470, 560, 680, 820, 1000, 1200 Hz (inductor based) | | High Pass Filter | 18 dB per octave slope, switchable between 50, 80, and 300 Hz (inductor based) | | Phase | Flips phase 180° | | Mic Input Impedance | HI: 1200 ohms minimum
LO: 300 ohms | | Line Input Impedance | 10 kOhms bridging, transformer balanced and floating | | Output Impedance | Less than 75 ohms, transformer balanced and floating, to drive a load of 600 ohms | | Maximum Output | Greater than +26 dBm into 600 ohms, greater than +32 dBu into 10 kOhms | | THD | Less than 0.025% at 1 kHz, less than 0.05% at 100 Hz | | Frequency Response | 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB) | | Maximum Gain | Slightly greater than 80 dB | | Noise | Less than -100 dBm | | Power Consumption | 110 mA at 24 VDC | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer |
