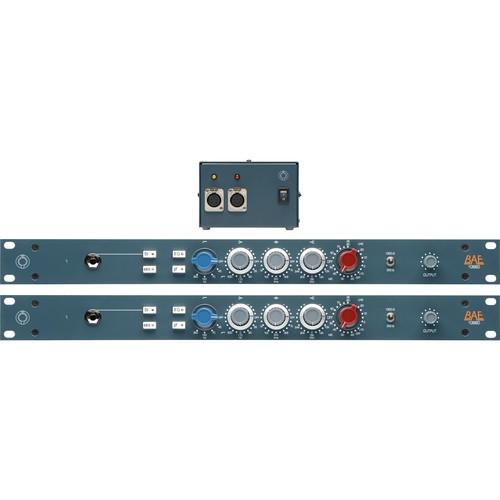

Product description This version of the BAE 1066D Mic/Line Preamp Module is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073 with the exception that the unit adds a few new frequencies to the pallet.
Popular among guitarists for its unique mid-range, the preamp offers up to 80 dB of gain and ±16 dB selectable high frequency shelving at 10 kHz, 12 kHz, 16 kHz, and 24 kHz. It also offers ±16 dB shelving at selectable frequencies of 35 Hz, 60 Hz, 110 Hz, and 220 Hz.
For mids, it offers ±16 dB peaking at selectable center frequencies of 700 Hz, 1.2 kHz, 2.4 kHz, 3 kHz, and 7 kHz. An 18 dB/octave high pass filter can be switched between 45 Hz, 70 Hz, 160 Hz and 360 Hz. An EQ button and a 180° phase button complete the preamplifier's controls. In the Box BAE 1066D Mic/Line Preamp Module (Pair, 19" Rackmount, Power Supply) 2 x Power Supplies Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 1066D Mic Line Preamp Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBAE PAIR 1066DWPS Specs | Frequency Response | 10 to 55,000 Hz (-3 dB) | | Equalizer | HF: ±16 dB fixed frequency shelving at 10, 12, 15, 20, and 24 kHz
LF: ±16 dB shelving with selectable frequencies of 35, 60, 110 and 220 Hz
MF: ±16 dB peaking with switchable selectable center frequencies of 700, 1200, 2400, 3000, and 7000 Hz | | High Pass Filter | 45, 70, 160, and 360 Hz | | Mic Input Impedance | Approximately 1200/300 ohms | | Line Input Impedance | 10 kOhms | | DI Input Impedance | 150 kOhms | | Output Impedance | 65 ohms | | Common Mode Rejection Ratio | 100 dB minimum at 60 Hz | | Maximum Output Level | +27.4 dBu at 600 ohms | | Power Requirements | 115/230 VAC, 28 W | | Gain | 0 to 80 dB | | Equivalent Input Noise | -110 dBu, unweighted 300 kHz bandwidth | | Dimensions | 19.00 x 1.75 x 9.00" (48.3 x 4.4 x 22.9 cm) | | Weight | 10.00 lb (4.54 kg) |
