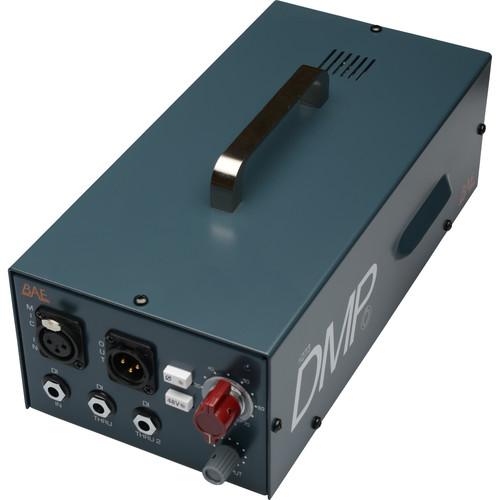

User Manual for BAE 1073 DMP - Desktop Mic Pre Click to enlarge the picture
Contents of the user manual for the BAE 1073 DMP - Desktop Mic
- Product category: Microphone Preamps BAE
- Brand: BAE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BAE Microphone Preamps
|
User manual for the BAE 1073 DMP - Desktop Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BAE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BAE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BAE product will considerably shorten its lifespan!
|
Product description The 1073 DMP from BAE is a portable hand-wired desktop mic preamp using Canford wire, with St. Ives (Carnhill) transformers, and Elma switches. It can be used by engineers, producers, and musicians for applications such as recording, broadcast TV, sound reinforcement, and more. The 1073 DMP features a frequency range of 10 Hz to 55 kHz. It comes standard with the Bootsy Collins modification, which consists of a Jensen DI transformer. This makes it suitable as a 1073 direct box for an instrument. Some other features include two DI thru, an XLR mic in and output, a phase reverse, a 48V phantom power switch, and a built-in power supply unit (PSU) for extra portability. It is enclosed in a solid steel chassis and includes a built-in carry handle. In the Box BAE 1073 DMP - Desktop Mic Pre Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 1073 DMP - Desktop Mic Pre in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBAE DMP Specs | Input/Output | 1/4" (6.3 mm) DI input
2x 1/4" (6.3 mm) through
3-pin XLRF (mic, line)
3-pin XLRM (output) | | Frequency Response | 10 Hz to -3 dB at 55 kHz | | Mic Input Impedance | 1200 ohms | | DI Input Impedance | ≅150 kOhms | | Output Impedance | 65 ohms | | Common Mode Rejection Ratio | 100 dB min @ 60 Hz | | Maximum Output Level | +27.4 dBu @ 600 ohms | | Power Requirements | 115/230 VAC, 28 W | | Gain | Voltage: 0 to 33.4 V | | Gain | 0 to 71 dB | | Equivalent Input Noise | -110 dBu; unweighted 300 kHz bandwidth | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
