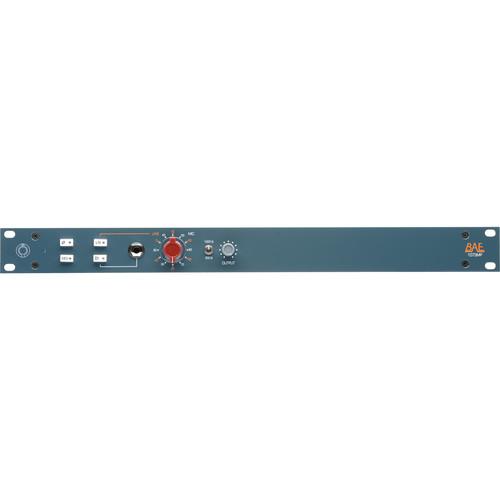

User Manual for BAE 1073MP Microphone Pre-Amplifier Click to enlarge the picture
Contents of the user manual for the BAE 1073MP Microphone Pre-Amplifier
- Product category: Microphone Preamps BAE
- Brand: BAE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BAE Microphone Preamps
|
User manual for the BAE 1073MP Microphone Pre-Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BAE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BAE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BAE product will considerably shorten its lifespan!
|
Product description This version of the BAE Audio 1073MP Microphone Pre-Amplifier is an all Class-A microphone preamp version of the well known classic 1084 and 1073 equalizer, well known for its rich low end, slight resonant highs, and focused mids. The 1 RU 19" rackmountable unit uses a transformer-coupled input with two selectable impedances of 1200 or 300 ohms, which allows it to work with a wide variety of microphones.
A line-level XLR input is included for adding depth to 2-bus mixes and a DI input is also included for use with passive and active instruments. It features a modular design and hand-wiring that helped build the company's reputation.
The unit's regulated linear power supply(sold separately) can run up to four channels at a time. In the Box BAE 1073MP Microphone Pre-Amplifier (No Power Supply) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 1073MP Microphone Pre-Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBAE SIN73MPNOPS Specs | I/O | 1x mic level XLR
1x line level XLR
1x 1/4" (6.35mm) DI input | | Gain | 0 to 71 dB | | Frequency Response | 10 Hz to 55 kHz (±3 dB) | | Mic Input Impedance | 1200/300 ohms | | Line Input Impedance | 10 kOhms | | DI Input Impedance | 150 kOhms | | Output Impedance | 65 ohms | | Common Mode Rejection Ratio | 100 dB at 60 Hz | | Maximum Output Level | +27.4 dBu at 600 ohms | | Power Requirements | 115/230 VAC, 30 W | | Equivalent Input Noise | -110 dBu, unweighted 300 kHz bandwidth | | Dimensions (W x L x D) | 19.00 x 1.75 x 9.00" (48.26 x 4.45 x 22.86 cm) | | Weight | 8.00 lb (3.63 kg) |
