User Manual for BAE 1073MPF - Dual-Channel Mic Pre and Filter, No Power Supply Click to enlarge the picture
Contents of the user manual for the BAE 1073MPF - Dual-Channel Mic Pre
- Product category: Microphone Preamps BAE
- Brand: BAE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BAE Microphone Preamps
|
User manual for the BAE 1073MPF - Dual-Channel Mic Pre contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BAE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BAE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BAE product will considerably shorten its lifespan!
|

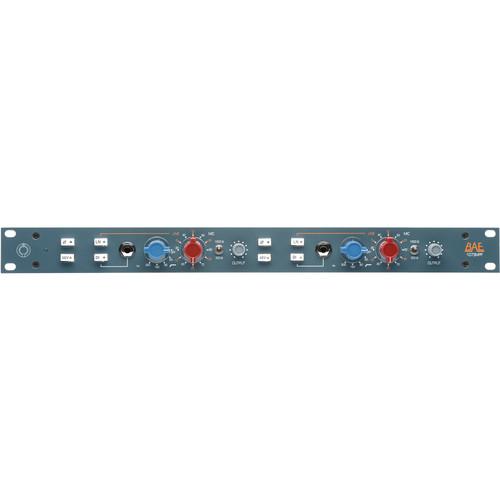

Product description The 1073MPF from BAE is a dual-channel hand-wired mic preamp with a high-pass filter and no power supply. It can be used by engineers, producers, and musicians for applications such as recording, broadcast TV, sound reinforcement, and more. The 1073MPF features a frequency range of 10 Hz to 55 kHz and shares the same characteristic Class A sound as the mic preamp version of the 1073 equalizer. The high-pass filter frequencies are set at 50, 80, 16, and 300 Hz. Built with a transformer-coupled input with two selectable impedances, the 1073MPF works well with a variety of different microphones. There is also a line-input feature for adding depth to 2-bus mixes, and a DI input for all passive and active instruments. Other features include a phase switch and a 48V phantom switch on the front panel. On the back panel there is one XLR input and output connector for each channel, and one mixed XLR output. - All Class-A, transformer-coupled design in a 19" 1U chassis
- Inductor-based high-pass filter
- Line-level XLR inputs for extra versatility as a line preamp
- High-impedance DI for guitar and synth
- The same Class-A components as the 1073 and 1084
- Illuminated phase reverse and phantom power pushbuttons
- Input impedance selector switch between 1200 and 300 ohms
- Regulated linear power supply will run up to four channels
- Same modular design and hand-wiring BAE is known for
In the Box BAE 1073MPF - Dual-Channel Mic Pre and Filter, No Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 1073MPF - Dual-Channel Mic Pre and Filter, No Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBAE DUAL73MPFNOPS Specs | Input/Output | 2x 1/4" (6.3 mm) DI input
2x 3-pin XLRF (output)
2x 3-pin XLRM (mic/line input)
| | Frequency Response | 10 Hz to 55 kHz @ -3 dB | | High Pass Filter | 50, 80, 160, and 300 Hz | | Mic Input Impedance | 1200/300 ohms | | Line Input Impedance | 10 kOhms | | DI Input Impedance | 150 kOhms | | Output Impedance | 65 ohms | | Common Mode Rejection Ratio | 100 dB min @ 60 Hz | | Maximum Output Level | +27.4 dBu @ 600 ohms | | Power Requirements | 115/230 VAC, 30 W | | Gain | 0 to 71 dB | | Equivalent Input Noise | -110 dBu; unweighted 300 kHz bandwidth | | Dimensions (W x H x D) | 19 x 1.8 x 9" (48 x 4.6 x 23 cm) | | Weight | 10 lb (4.54 kg) | | | | Package Weight | 13.4 lb | | Box Dimensions (LxWxH) | 25.7 x 15.3 x 5.9" |
