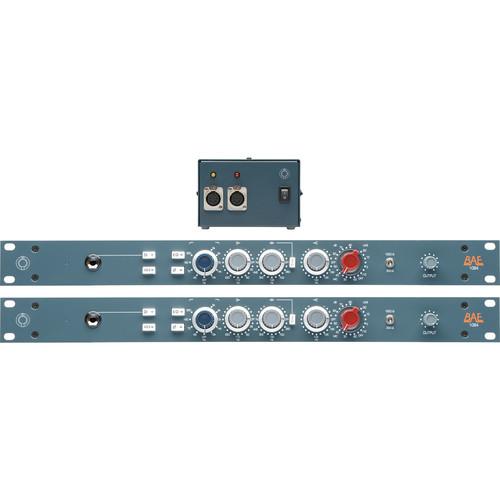

Product description The 1084 19" Pair with Power Supply from BAE is a pair of 1084 modules and a power supply. Each module features St Ives (Carnhill) transformers, Elma switches, and Canford wire. They have the same chassis construction, connectors, printed circuit board layouts, hand-wired looms, and circuitry as vintage models. In the Box BAE 1084 19" Pair with Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 1084 19" Pair with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBAE PAIR 1084WPS Specs | Frequency Response | 10 Hz to -3 dB @ 55 kHz | | 3-Band Equalizer | High-Frequency:+/-16 dB fixed frequency shelving at 10 kHz, 12 kHz and 16 kHz
Low--Frequency: +/-16 dB shelving with selectable frequencies of 35 Hz, 60 Hz, 110 Hz, and 220 Hz
Mid--Frequency: +/-18 dB peaking, fixed 'Q' with selectable center frequencies of 0.36 kHz, 0.7 kHz, 1.6 kHz, 3.2 kHz, 4.8 kHz, and 7.2 kHz | | High Pass Filter | 50 Hz, 80 Hz, 160 Hz, and 300 Hz | | Low Pass Filter | 6 kHz, 8 kHz, 10 kHz, 14 kHz, and 18 kHz | | Mic Input Impedance | ≈1200/300 ohms | | Line Input Impedance | 10 kOhms | | DI Input Impedance | ≈150 kOhms | | Output Impedance | 65 ohms | | Common Mode Rejection Ratio | 100 dB min @ 60 Hz | | Maximum Output Level | +27.4 dBu @ 600 ohms | | Gain | 0 to 80 dB | | Equivalent Input Noise | -110 dBu; unweighted 300 kHz bandwidth | | Buttons | EQ Button: switches the equalizer on or off
Phase Button: 180° | | Power Requirements | 115/230 VAC, 28 W | | Dimensions | 1.77 x 8.75 x 10.5" (4.5 x 22.22 x 26.67 cm) 19 x 1.75 x 9" (48.26 x 4.44 x 22.86 cm) | | Weight | Module: 6 lb (2.72 kg) Rackmount: 10 lb (4.54 kg) |
