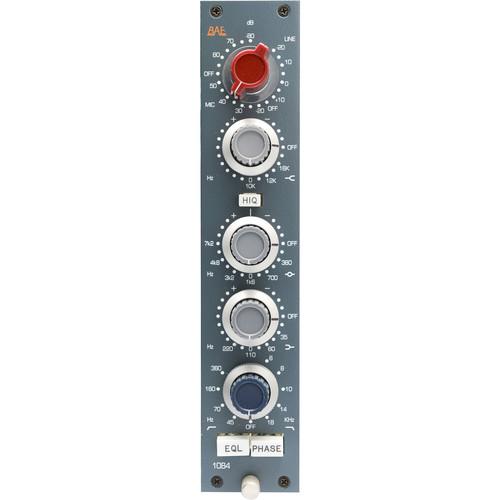

Product description The 1084 Module from BAE is a hand-wired mic preamp/EQ that uses Canford wire with St. Ives (Carnhill) transformers and Elma switches. It can be used by engineers, producers, and musicians for applications such as recording, broadcast TV, sound reinforcement, and more. The 1084 features a frequency range of 10 Hz to 55 kHz and has a 3-band equalizer; it looks identical to the original module and will happily retrofit in vintage Neve 80 Series consoles. It is engineered in exactly the same way as the original: the same chassis construction, connectors, printed circuit board layouts, hand-wired looms, and circuitry. Some other features include an EQ switch, and phase switch on the front panel. - High Frequency
- +/-16 dB shelving with selectable frequencies of 10 kHz, 12 kHz, and 16 kHz
- Low Frequency
- +/-16 dB shelving with selectable frequencies of 35 Hz, 60 Hz, 110 Hz, and 220 Hz
- Mid-Range
- +/-12 dB or +/-18 dB peaking with switchable high Q, selectable center frequencies of 0.36 kHz, 0.7 kHz, 1.6 kHz, 3.2 kHz, 4.8 kHz, and 7.2 kHz
- High Pass Filter
- 18 dB per octave slope, switchable between 45 Hz, 70 Hz, 160 Hz, and 360 Hz
In the Box BAE 1084 Mic Pre/EQ Module Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 1084 Mic Pre EQ Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBAE 1084MOD Specs | Input/Output | N/A | | Frequency Response | 10 Hz to -3 dB at 55 kHz | | 3-Band Equalizer | HF: +/-16 dB fixed frequency shelving at 10 kHz, 12 kHz, and 16 kHz
LF: +/-16 dB shelving with selectable frequencies of 35 Hz, 60 Hz, 110 Hz, and 220 Hz
MF: +/-18 dB peaking, fixed Q with selectable frequencies of 36 Hz. 0.7 kHz, 1.6 kHz, 3.2 kHz, 4.8 kHz & 7.2 kHz. | | High Pass Filter | 50 Hz, 80 Hz, 160 Hz, and 300 Hz | | Low Pass Filter | 6 kHz, 8 kHz, 10 kHz, 14 kHz, & 18 kHz | | Mic Input Impedance | 1200/300 ohms | | Line Input Impedance | 10 kOhms | | DI Input Impedance | 150 kOhms | | Output Impedance | 65 ohms | | Common Mode Rejection Ratio | 100 dB min @ 60 Hz | | Maximum Output Level | +27.4 dBu @ 600 ohms | | Power Requirements | 115/230 VAC, 28 W | | Gain | 0 to 80 dB | | Equivalent Input Noise | -110 dBu; unweighted 300 kHz bandwidth | | Dimensions (W x H x D) | 1.8 x 8.8 x 10.5" (4.6 x 22 x 27 cm) | | Weight | 6 lb (2.72 kg) |
