User Manual for BAE 10DCF Compressor Limiter with Power Supply Click to enlarge the picture
Contents of the user manual for the BAE 10DCF Compressor Limiter with Power
- Product category: Dynamics Processors BAE
- Brand: BAE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BAE Dynamics Processors
 |
User manual for the BAE 10DCF Compressor Limiter with Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BAE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BAE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BAE product will considerably shorten its lifespan!
|

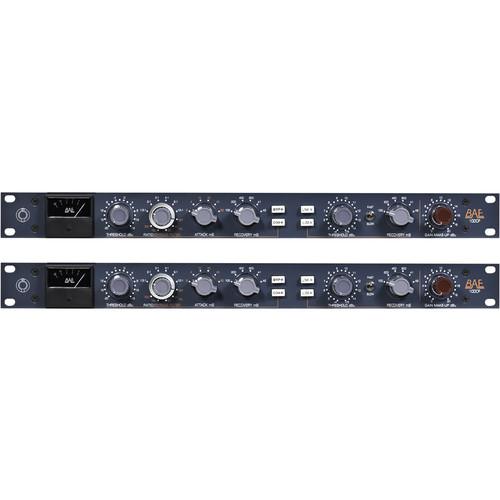

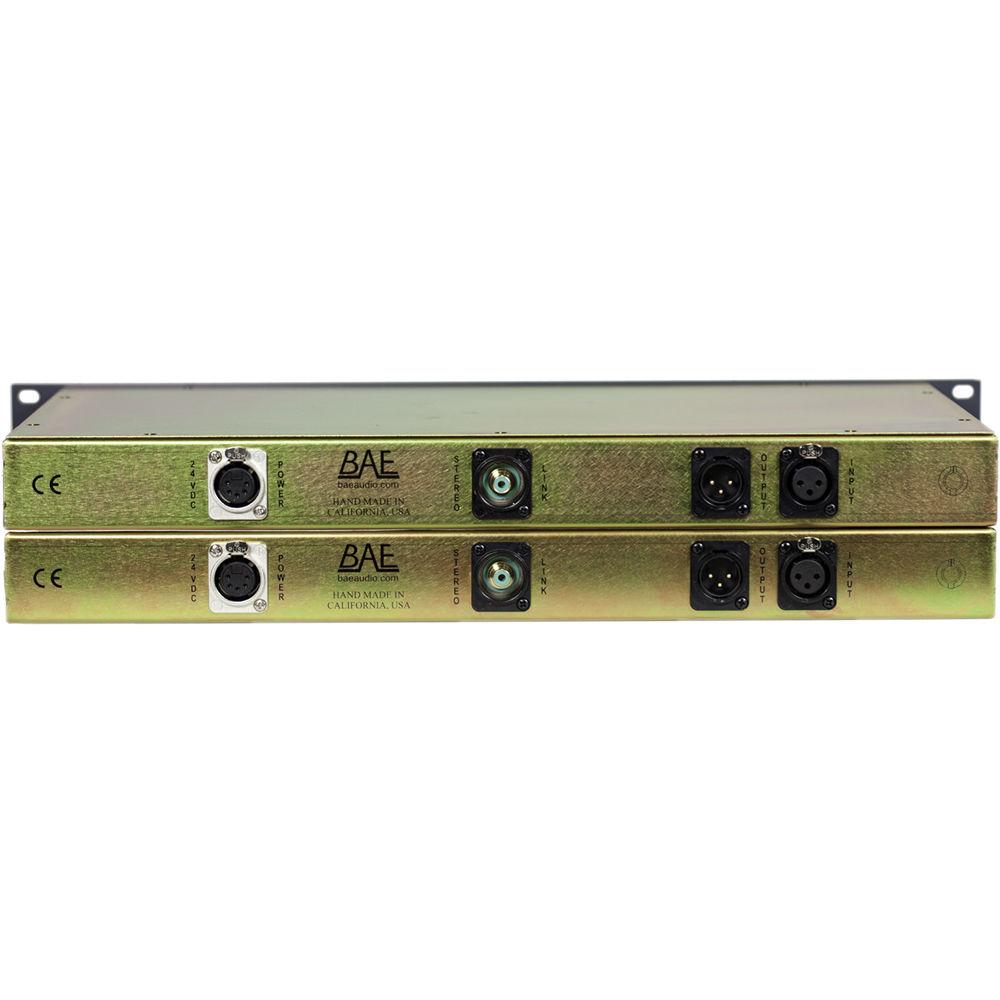

Product description The pair of 10DCF Compressor/Limiter with Power Supply from BAE employs Carnhill and Jensen transformers with discrete circuitry while adding an inductor-based bypass filter. The bypass filter delivers increased flexibility while recording low-frequency ranged instruments, and engages at 50, 80, 160, and 300 Hz, ideal for users who want to compress a broad frequency range while leaving lower frequencies uncompressed. The 10DCF Compressor is also stereo linkable, making them the suitable complement for the output stage of a mixer.The 10DCF Compressor is a versatile tool for both tracking and mixing. It retains the same top grade, Class A circuitry that is present in BAE gear, while providing bypass filter options that make it more customizable, especially useful for drum and bass applications. It also features a useful range of features on its front panel, including Elma stepped switches for each control, BAE Audio's Marconi knobs, and a gastank style analog meter.The combination of these elements provides users with accurate visual and tactile reference points as they adjust and shape their sounds. The metering on the compressor incorporates a sleek and simple design, with easy-to-read white lettering set against a black background in a rugged gastank style encasement. -
- Discrete Class A transformer-coupled circuit throughout
- Fully independent compressor and limiter for separate audio dynamics control
- Intuitive layout with illuminated meter showing gain reduction
- High-quality stepped Elma switches for dialing accuracy and repeatability
- True bypass even when the unit is off

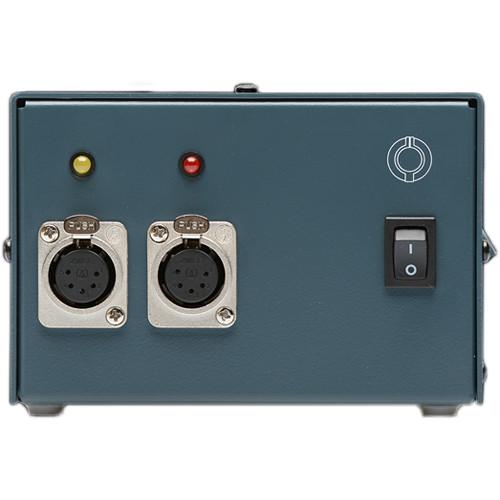

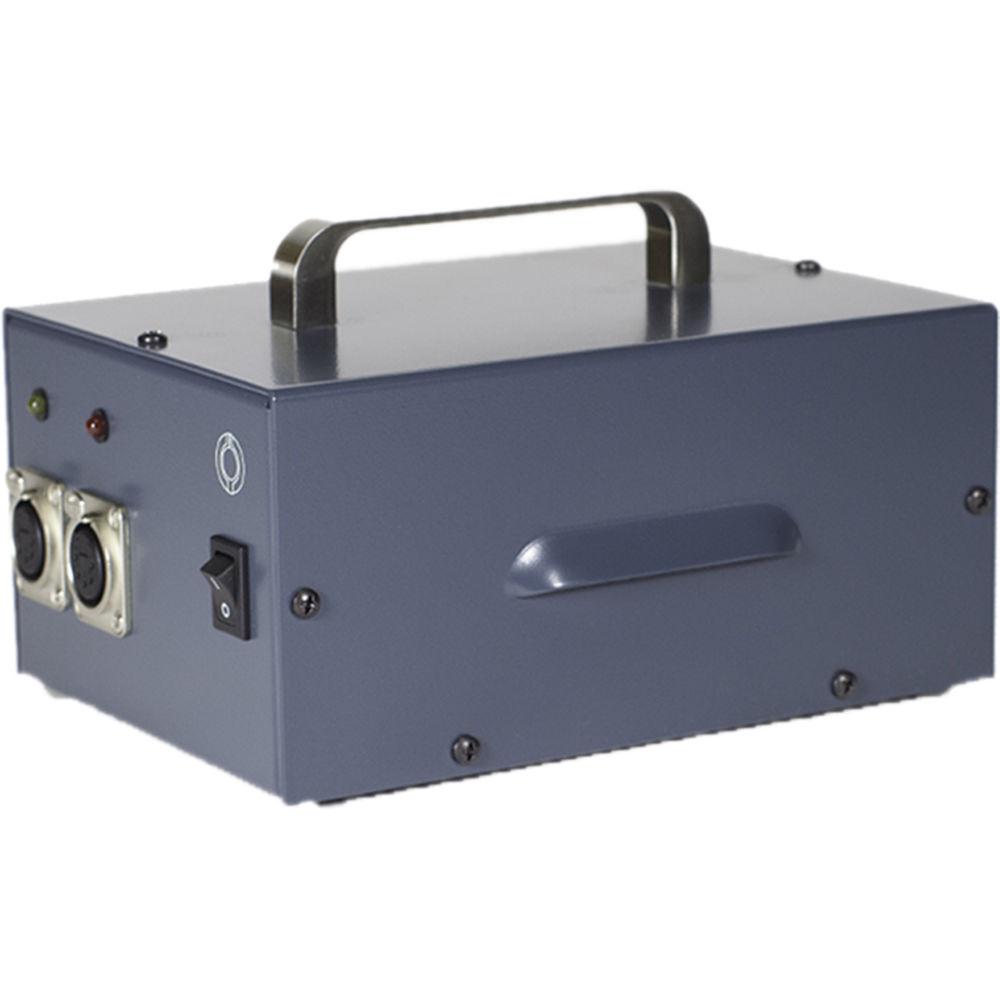

- 24 VDC power supply included
- One power supply can run two units
UPC: 856558005765 Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 10DCF Compressor Limiter with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBAE PAIR10DCF Specs | | | Threshold | -20 dBu to +16 dBu with 2 dB steps | | Ratio | 1.5:1 to 10:1 with 6 position switch | | Attack | 2 to 80 ms with 6 position switch | | Recovery | 100, 200, 400, 800 ms
Auto 1: 100 ms isolated peaks, 2 sec prolonged levels
Auto 2: 50 ms isolated peaks, 5 sec prolonged levels | | | | Threshold | +4 dBu to +15 dBu with 0.5 dB steps | | Attack | Slow 4 ms, Fast 2 ms | | Recovery | 100, 200, 400, 800 ms
Auto 1: 100 ms isolated peaks, 2 sec prolonged levels
Auto 2: 50 ms isolated peaks, 5 sec prolonged levels | | | | Frequency Response | 5 Hz to 45 kHz -1 dB, measured at +8 dBu | | Noise | -80 dBu with 200 Ohms source | | Maximum Output Level | +33 dBu into 10 kOhms
+27 dBU into 600 Ohms | | Distortion | Varies from 0.03% to greater than 1% | | Bypass | Bypass Filter: 50, 80, 160, and 300 Hz | | Gain | 0 to +20 dBu in 1 dB steps | | Output Impedance | 100 Ohms balanced earth free | | Power Consumption | 200 mA at 24 VDC (power supply included) | | Dimensions (W x L x D) | 19 x 1.7 x 9.0" (48 x 4.3 x 23 cm) | | Weight | 22 lb (10 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
