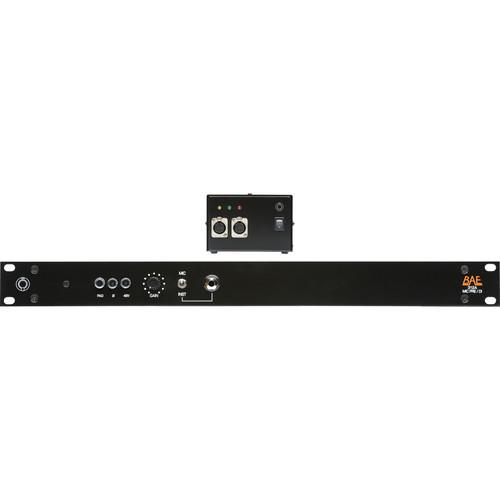

User Manual for BAE 312A Rackmount and Module Click to enlarge the picture
Contents of the user manual for the BAE 312A Rackmount and Module
- Product category: Microphone Preamps BAE
- Brand: BAE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BAE Microphone Preamps
|
User manual for the BAE 312A Rackmount and Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BAE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BAE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BAE product will considerably shorten its lifespan!
|
Product description This version of the BAE Audio 312A Preamp Rackmount Module has a capacitor-free circuit design, a 1 RU 19" rackmount form factor, and utilizes Jensen input and output transformers as well as the Avedis 1122 opamp.
I/O is provided by rear-panel XLR connectors as well as a high-impedance front-panel 1/4"phone DI input for guitars, synthesizers, and other instruments. A front-panel MIC/INST switch engages the DI, while a dedicated gain knob allows you to add 10 to 66 dB of gain. Three dedicated switches provide phantom power, polarity inversion, and a signal pad. The contacts in the preamplifier's switches are gold-plated to ensure reliability and signal fidelity. In the Box BAE 312A Rackmount and Module (Single, With Power Supply) Remote Power Supply with 4' (1.2 m) Cable Limited 5-Year Warranty (If Purchased in the U.S.A.) Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 312A Rackmount and Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBAE SIN312WPS Specs | I/O | 2x XLR rear-panel connectors for mic I/O
1x front panel 1/4" (6.35 mm) DI input | | Frequency Response | 5 Hz to 75 kHz (-3 dB) | | Input Impedance | Mic: 1400 ohms
Line: 10 kOhms
D.I.: 250 kOhms | | Output Impedance | 75 ohms | | Common Mode Rejection Ratio | 110 dB minimum at 60 Hz | | Maximum Output Level | +27.1 dBu at 600 ohms | | Power Requirements | 115/230 VAC, 27 W(Rackmount)
40 mAh per rail | | Gain | 10 to 66 dB | | Equivalent Input Noise | -120 dBu, unweighted 300 kHz bandwidth | | Dimensions (W x L x D) | 19 x 1.75 x 9" (48.26 x 4.45 x 22.86 cm) |
