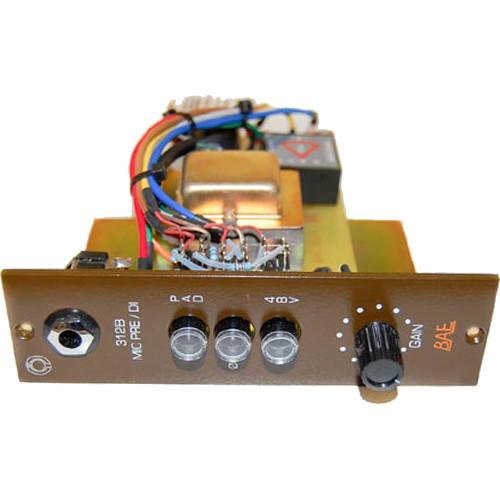

User Manual for BAE 312B - Mic Preamp, 500 Series Module Click to enlarge the picture
Contents of the user manual for the BAE 312B - Mic Preamp, 500
- Product category: Preamp Accessories BAE
- Brand: BAE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BAE Preamp Accessories
|
User manual for the BAE 312B - Mic Preamp, 500 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BAE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BAE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BAE product will considerably shorten its lifespan!
|
Product description The 312B Module from BAE is a mic preamp with 48V phantom power, a pad switch, and a phase reverse switch that is compatible with the API 500 series modules. It can be used when paired with a (DLB) Desktop Lunchbox (sold separately) as a portable solution for musicians, engineers, and producers in applications such as broadcast TV, recording studios, live stage, theater, and more. The 312B, just like the 312A, is built with Jensen input and output transformers and the Avedis 1122 op-amp. It is similar to the 312A module but uses an alternative Jensen transformer delivering about 7 dB of lower gain, to accommodate louder sound sources without losing the characteristics of the 312A. It also includes a high impedance DI for instruments. A gain control knob, a 48V phantom switch, a phase reverse switch, and a pad switch are located on the front panel. In addition, there are no capacitors in the audio path allowing transients to pass easily, making them a favorite for drummers. The 312 series is designed to deliver a fast and punchy sound. In the Box BAE 312B - Mic Preamp, 500 Series Module Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 312B - Mic Preamp, 500 Series Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBAE 312BMOD Specs | Frequency Response | 5 Hz to 75 kHz (-3 dB) | | Mic Input Impedance | 1400 ohms | | Line Input Impedance | 10 kOhms | | DI Input Impedance | 250 kOhms | | Output Impedance | 75 ohms | | Common Mode Rejection Ratio | 110 dB min @ 60 Hz | | Maximum Output Level | +27.1 dBu @ 600 ohms | | Power Requirements | 40 mA per rail | | Gain | 3 to 59 dB | | Equivalent Input Noise | -120 dBu, unweighted 300 kHz bandwidth | | Dimensions (W x H x D) | 1.5 x 5.5 x 6" (3.8 x 14 x 15 cm) | | Weight | 1 lb (0.45 kg) |
