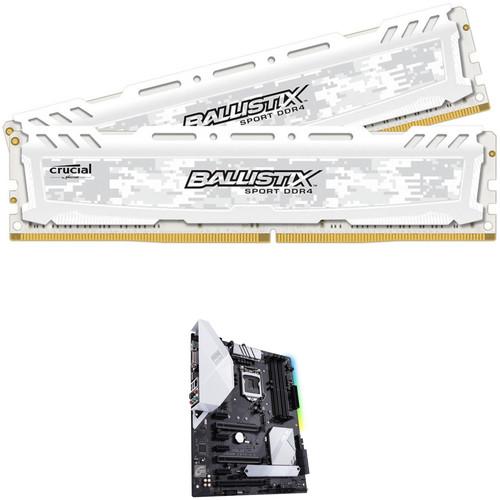

Product description Build your own PC with the 32GB Ballistix Sport LT DDR4 Memory & ASUS Prime Z370-A II LGA 1151 ATX Motherboard Kit from . Designed for gamers and performance enthusiasts, this pack of Ballistix Sport LT memory includes two 16GB modules for a total capacity of 32GB, which is enough for gaming, everyday tasks, and content creation. The motherboard supports socket LGA 1151 processors and features enough connectivity options for multiple storage drives and PCIe expansion cards. Aside from these two items, you'll need other components for a complete system. - Ballistix 32GB Sport LT Series DDR4 2666 MHz DR UDIMM Memory Kit (2 x 16GB, White) The white 32GB Ballistix Sport LT Series DDR4 2666 MHz DR UDIMM Memory Kit from Ballistix is a set of 2 memory units, each of 16GB capacity. These are unbuffered, non-ECC modules that operate on a frequency of 2666 MHz for use with DDR4 compatible systems. With a digital camo design and an integrated heat spreader for enhanced thermal performance, these modules look cool and stay cool. It features XMP 2.0 profiles for easy configuration in Intel-supported systems and engineered to deliver fast and reliable performance memory for enthusiasts and mainstream users alike.
- Provides XMP 2.0 profile for easy configuration
- Features heat spreader for effective heat dissipation
- Performance memory for gamers and enthusiasts
- Optimized for Intel platforms
- Easy plug-and-play installation
UPC: 649528782243 - ASUS Prime Z370-A II LGA 1151 ATX Motherboard Powered exclusively by 8th Generation Intel Core processors, the Prime Z370-A II LGA 1151 ATX Motherboard from ASUS maximizes connectivity and speed with dual M.2 slots, 10 Gb/s USB 3.1 Gen 2 connectivity, Thunderbolt 3 support, and Intel Optane Memory compatibility. It provides a solid foundation for your first build, plus the flexibility for growth, all of which are backed by automated system tuning, cooling controls, onboard audio, and support for the ASUS Fan Extension Card. This motherboard is designed to fit in ATX sized cases, supports the LGA 1151 socket, the Intel Z370 chipset, and is compatible with Windows 10 (64-bit).
The ATX form factor of the Prime Z370-A II can support up to 64GB of DDR4 RAM over four dual-channel slots, or 16GB per slot at speeds of 4000 (OC), 3866 (OC), 3733 (OC), 3600 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666 (OC), 2400 (OC), and 2133 MHz non-ECC unbuffered memory. For storage, there are six SATA III 6 Gb/s ports and two M.2 Socket 3, with M key, one of which supports type 2242, 2260, 2280, and 22110 SATA and PCIe 3.0 x4 SSDs, while the other supports type 2242, 2260, and 2280 PCIe SSDs.
There is also one USB 3.1 Gen 2 Type-C port (rear panel), one USB 3.1 Gen 2 Type-A port (rear panel), two USB 3.1 Gen 1 Type-A ports (rear panel), two USB 2.0 Type-A ports (rear panel), two USB 3.1 Gen 1 connectors (mid-board) that support four additional 19-pin USB 3.1 Gen 1 ports, and two USB 2.0 connectors (mid-board) that support an additional four USB 2.0 ports. For those looking to expand their system using PCIe, there are two PCIe 3.0/2.0 x16 slots (x16, x8/x8, x8/x4+x4, x8+x4+x4/x0), one PCIe 3.0/2.0 x16 slot (max at x4 mode), and four PCIe 3.0/2.0 x1 slots.
For delivering sharp, clear graphics, this motherboard supports Intel HD Graphics with HDMI, DisplayPort, and DVI-D outputs. HDMI supports a maximum resolution of 4096 x 2160 at 30 Hz or 2560 x 1600 at 60 Hz, the DisplayPort supports a maximum resolution of 4096 x 2304 @ 60 Hz, and the DVI-D port supports a maximum resolution of 1920 x 1200 at 60 Hz. Integrated graphics has access to up to 1024MB of shared memory and also supports Intel InTru 3D, Quick Sync Video, Clear Video HD, and Intel Insider. Using DisplayPort 1.2 multi-stream technology, up to three monitors can be used at once.
Using the 8-Channel Realtek S1220A HD audio codec, the Prime Z370-A II can support audio with higher fidelity than standard controllers. Audio can also be output using the integrated five 3.5mm audio outputs or S/PDIF output header. This motherboard is also equipped with features such as SafeSlot, a TurboV Processing Unit, an Energy Processing Unit, Fan Xpert 4, Digi+ Power Control, Turbo App, 5X Protection III, 5-Way Optimization, and more. Included is a Q-Shield, an ASUS Fan Holder, three SATA III 6 Gb/s cables, an M.2 screw package, an SLI HB Bridge (2-Way-M), and a Q-connector (1-in-1). This motherboard is protected by a limited 3-year warranty. General Features Power Delivery Enhancements - Dr. MOS
- The Prime Z370-A II's CPU VRM utilizes Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that Intel processors need.
- ProCool Power Connector
- Compared with traditional power inputs, ProCool sockets are built to tight specifications to help ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.
Tune It Your Way - 5-Way Optimization
- ASUS 5-Way Optimization makes your system smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.
- An automated tuning utility optimizes overclocking and cooling profiles for your unique system configuration
- Fans stay whisper-quiet with everyday computing, and deliver efficient airflow when the system is crunching through CPU- or GPU-intensive tasks
- Stress test functionality helps optimize and overclock for CPU- or memory-centric workloads
- TPU (CPU Performance Boost)
- Unleash your system's full potential with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind their automated system-tuning utility, offering the ability to fine-tune voltages, monitor system tasks, and adjust overclock parameters for improved performance.
- EPU (All-Round Energy Efficiency)
- With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away Mode, a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
- Fan Xpert 4 (Flexible Cooling Controls for Air/Liquid)
- With the Prime Z370-A II, you have comprehensive control over fans, water, pumps, and even all-in-one (AIO) coolers—all via Fan Xpert 4, which is ASUS' UEFI. Whether you're cooling with aur or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also Extreme Quiet mode, which reduces all fan noise speeds to below the default minimum, keeping your system whisper-quiet when performing light tasks.
- Digi+ Power Control
- Digi+ delivers real-time control over voltage droop, switching frequency, and power efficiency settings, allowing you to fine tune CPU voltage regulation for stability and performance.
- Turbo App
- Whether you're a professional designer or hardcore gamer, you'll feel the benefit of ASUS' Turbo App. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data, and optimize audio settings at the app level, so your Prime Z370-A II system is optimized for whatever you're doing.
- Make Your Memory Go Faster
- ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and their T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing memory speeds of DDR4-4000 and beyond with all slots populated.
- OC Design - ASUS Pro Clock Technology
- The Prime Z370-A II includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from Intel Core 8th Generation processors.
- Cooler By Design
- The Prime Z370-A II features comprehensive cooling controls, configurable via Fan Xpert 4 or the UEFI BIOS.
Multiple Temperature Sources
Each header can be set to monitor and react to three thermal sensors, and via Fan Xpert 4, you can even assign a sensor to monitor the temperature of supported ASUS graphics cards for optimal cooling during GPU- or CPU-intensive workloads.
AIO Pump
A dedicated PWM/DC header for self-contained water-cooling setups.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
ASUS Fan Extension Card Support
Includes three additional DC or PWM fan headers, plus three thermal probe headers.
Smart Protection A dedicated integrated circuit protects each fan header from over-temperature and over-current. - ASUS Fan Holder
- The ASUS Fan Holder increases airflow your Prime Z370 Series motherboard's VRM area. Just screw on a 40/50mm fan, mount the bracket on the heatsink, and hook the fan up to a header for a targeted cooling boost. With the Fan Holder and fan in place, VRM temperatures are reduced by up to 77°F / 25°C, which is good for your overclocking adventures.
- UEFI BIOS
- The mouse-controllable graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you find your way, quickly and easily.
EZ Tuning Wizard
Quickly apply a CPU overclock to improve system performance, or configure a RAID array for faster data retrieval and backups.
My Favorites
Quickly discover tuning options and add preferred tools to the list. - EZ Mode
- Intuitive Graphical Fan Control
Fine-tune individual fans simply by dragging a curve with the mouse.
EZ XMP
Improve your DRAM performance with a click.
SATA Information
Display SATA port details that help you easily recognize drives.
Fast Clock Adjustment
Use mouse controls to change the time and date. - Advanced Mode
- GPU POST
View recommendations for multi-VGA configurations and detailed information for select ASUS graphics cards.
Secure Erase
Restore your SSDs to factory-fresh condition.
Last Modified Log
Track last change and save preferred profiles onto a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification. Fast Connectivity - M.2 up to 32 Gb/s
- With PCI Express 3.0/2.0 x4 bandwidth, M.2 supports data transfer speeds of up to 32 Gb/s. It's a good choice for an operating system or application drive, providing fast access to data.
- M.2 Heatsink - Keep Your SSD Cooler
- The Prime Z370-A II has an efficient heatsink to reduce M.2 SSD temperatures by up to 68°F / 20°C, which that means improved storage performance and SSD longevity.
- Intel Optane Memory
- Intel Optane is a non-volatile memory technology supported by Prime Z370-A II. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.
- 10 Gb/s USB 3.1 Gen 2 Type-A & Type-C
- With backward-compatible USB 3.1 Gen 2 Type-A and reversible USB 3.1 Gen 2 Type-C ports, you'll experience connection flexibility and data transfer speeds of up to 10 Gb/s.
- ThunderboltEX 3 Card
- The Prime Z370-A II provides full support for a ThunderboltEX 3 card. An Intel-certified Thunderbolt 3 add-on card enables bi-directional speeds of up to 40 Gb/s through a single cable, which is up to 4x faster than other PC data transfer protocols. Beyond sheer bandwidth, Thunderbolt 3 supports daisy-chaining up to six devices, utilizes a USB Type-C reversible connector for compatibility with USB 3.1 Gen 2 Type-C devices, and meets USB Power Delivery specifications for fast, high-power charging of up to 36W.
- Intel Ethernet
- The Prime Z370-A II features latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering high TCP and UDP throughput for faster, smoother data transfers.
- Turbo LAN
- Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface and reduces network lag.
Reliable Stability and Compatibility - Built to Last
- ASUS motherboards are compatible with more than 1000 components and devices, and each new model undergoes a minimum of 8000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for virtually all environments and applications.
- 5X Protection III
- Prime series motherboards are engineered with 5X Protection III, employing fine components, excellent circuit design, and exacting standards to help guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build - thanks to decades of engineering experience.
- SafeSlot
- SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
- LANGuard
- ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.
- Overvoltage Protection
- A circuit design with built-in voltage regulators helps protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
- DIGI+ VRM Precision control for stable pow
- DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
- DRAM Overcurrent Protection
- Onboard resettable fuses help prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
- Stainless-Steel Back I/O
- Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide help assure a lifespan that's longer than ordinary panels.
- ESD Guards
- ASUS ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to ±10kV of air discharge and ±6kV of contact discharge.
- 1000+ Compatible Devices and Components
- The compatibility of the Prime Z370-A II is evidenced by ASUS' extensive list of supported devices—which includes thousands of compatible components—and their Qualified Vendor List (QVL) that identifies memory compatibility. It all adds up to more choices for worry-free PC-building experiences.
- 8000+ Validation Hours
- Temperature and Humidity Tests
Ensures components withstand extreme conditions.
Thermal Measurement Tests
Ensures that the system remains cool and stable under the heaviest loads.
Insertion Tests
Every post and connector is put through repeated installation cycles.
Up to 48 Hours of Aging Tests
Up to 48-hour aging test ensures reliability.
Power Consumption Tests
Checked for energy efficiency.
Temperature and DC Margin Tests
Ensures that the motherboard is capable of coping with voltage fluctuations caused by varying temperatures.
Thermal Shock Tests
Ensures the motherboard has the ability to survive temperature changes of -40 to 185°F / -40 to 85°C during transportation.
Non-Operation Shock Tests
Built to withstand jolts that may occur during shipping.
Burn-In Tests
Every component is checked to ensure functional operation.
Installation Tests
Connector placement is double-checked to ensure user-friendly installation.
Drop Tests
Drop tests from various heights help ensure durability.
Salt and Spray Tests
Tested for I/O reliability, prolonged lifespan, and rust resistance. Upgraded Audio - Realtek S1220A Codec
- The Prime Z370-A II utilizes a unique audio codec designed in close collaboration with Realtek—the Realtek S1220A. It also features a 120-dB signal-to-noise (SNR) ratio for the stereo line-out and a 113-dB SNR for the line-in, providing high audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure the proper volume range for your headphones.
- DTS Headphone:X Surround Sound
- Immersive 3D surround-sound technology provides a grand audio experiences.
- Crystal Sound 3 - Audio That Immerses You In the Game
- Power Pre-Regulator
Reduces power input noise to help ensure consistent performance.
Audio Shielding
Separates analog/digital signal domains, helping to reduce multi-lateral interference.
Separate Layer for Left and Right Tracks
Helps ensure minimal crosstalk between audio paths.
Integrated Amplifier
Capable of driving high-impedance headphones without rolling off high or low frequencies.
De-Pop Circuit
Reduces startup popping noise to all audio outputs.
Japanese Audio Capacitors
Premium parts provide an immersive sound signature, with high fidelity. Visual Beauty, Virtual Worlds - Aura Sync
- A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full RGB control with a variety of functional presets for the built-in RGB LEDs, as well as the LED strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
- Beyond VR Ready
- The Prime Z370-A II isn't just VR ready - it goes beyond. The ASUS Beyond VR Ready marque means that Prime Z370-A II has been tested with loads of components to ensure that your productivity, gaming, and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.
Intel Design - Intel Z370 Chipset
- The Intel Z370 is a single-chipset design that supports 8th Generation Intel Core LGA 1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the Z370 provides a maximum of 10 USB 3.1 Gen 1 ports, six SATA III 6 Gb/s ports, and 32 Gb/s M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z370 also supports integrated-graphics, so you'll enjoy the great graphics performance.
- Ready for 8th Generation Intel LGA 1151 Core Processors
- This motherboard supports 8th Generation Intel Core processors in the LGA 1151 package, with integrated graphics, memory, and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory, and 16 PCI Express 3.0/2.0 lanes for great performance.
UPC: 192876137536 In the Box - 32GB Sport LT Series DDR4 2666 MHz DR UDIMM Memory Kit (2 x 16GB, White) xqcezzbevqdvrywvtdbscatqzrzqrbea
- Limited Lifetime Warranty
- ASUS - Prime Z370-A II LGA 1151 ATX Motherboard
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ballistix 32GB Sport LT DDR4 Memory & ASUS Prime Z370-A II LGA 1151 ATX Motherboard Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ballistix 32GB Sport LT Series DDR4 2666 MHz DR UDIMM Memory Kit (2 x 16GB, White)
| Capacity | 32 GB | | Kit Configuration | 2 x 16 GB | | Speed | PC4-21300 (2666 MHz) | | Memory Type | DDR4 | | DIMM Type | 288-Pin DIMM | | Buffered/Registered | No | | Error Correction (ECC) | Non-ECC | | Voltage | 1.2 V | | CAS Latency | CL16 | | Performance Profile | XMP 2.0 | | Memory Rank | Dual Rank | | | | Box Dimensions (LxWxH) | 6.8 x 4.7 x 0.5" | - ASUS Prime Z370-A II LGA 1151 ATX Motherboard
| | | Chipset | Intel Z370 | | CPU Socket | LGA 1151 | | | | USB | 1 x USB 3.1 Gen 2 Type-C
1 x USB 3.1 Gen 2 Type-A
2 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Display | 1 x DVI-D
1 x DisplayPort
1 x HDMI | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Intel i219V Gigabit | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280 (PCIe (Unspecified)) | | U.2 | None | | Optane Memory Support | Yes | | RAID Support | RAID 0, 1, 5, 10 | | | | Expansion Slots | 2 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way NVIDIA SLI
3-Way AMD CrossFireX | | Air Cooling | 2 x 4-Pin CPU
2 x 4-Pin System
1 x 4-Pin M.2
1 x 5-Pin Extension
1 x Thermal Sensor | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 1 x RGB | | Audio | None | | Diagnostics | Clear CMOS, Power | | Add-On | 1 x Thunderbolt Card Header | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek S1220A (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12.0 x 9.6" / 30.48 x 24.38 cm | | | | Box Dimensions (LxWxH) | 16.1 x 12.6 x 10.5" |
