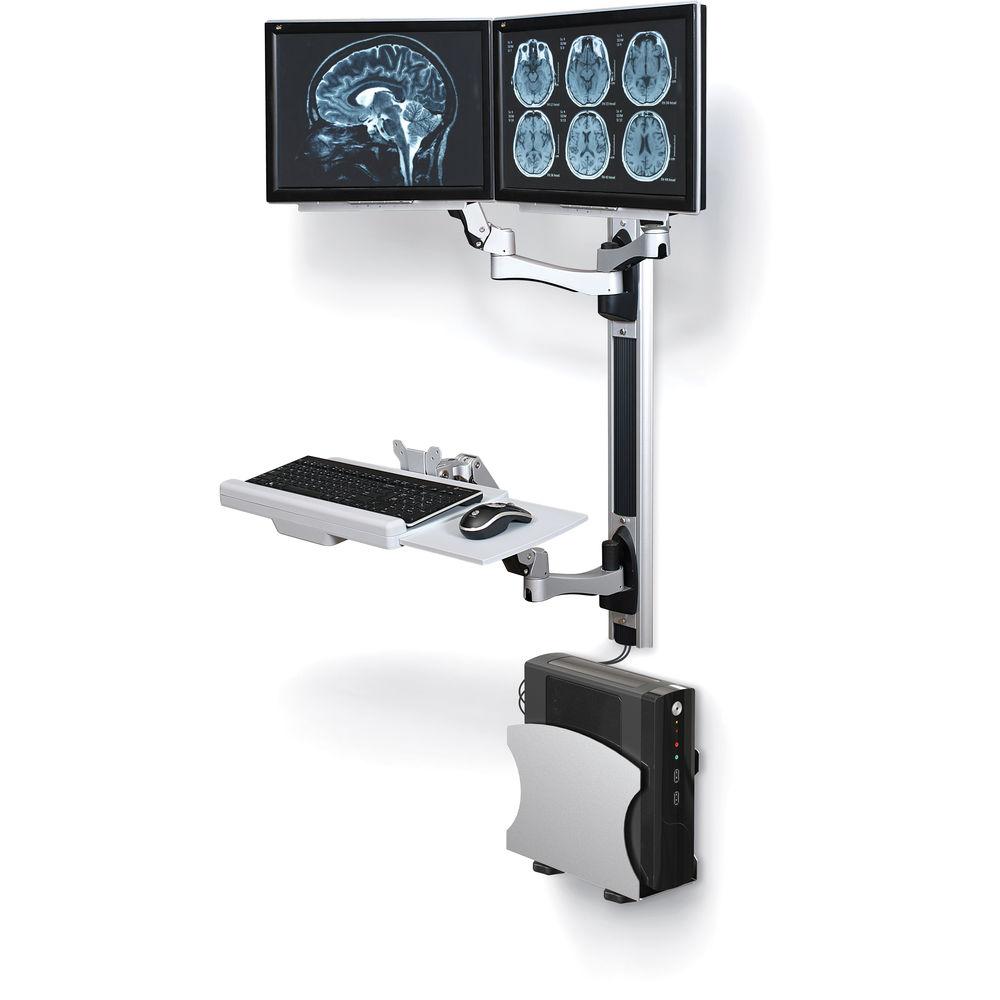

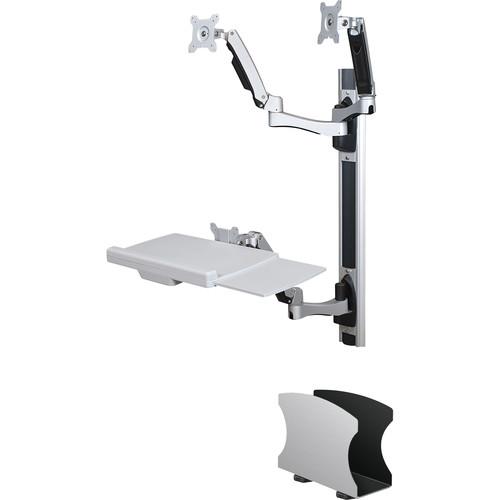

Product description The Balt HG Wall Mount Workstation with CPU Holder and Additional Monitor Arm includes an HG Wall Mount Workstation, a CPU holder, and an additional monitor arm.

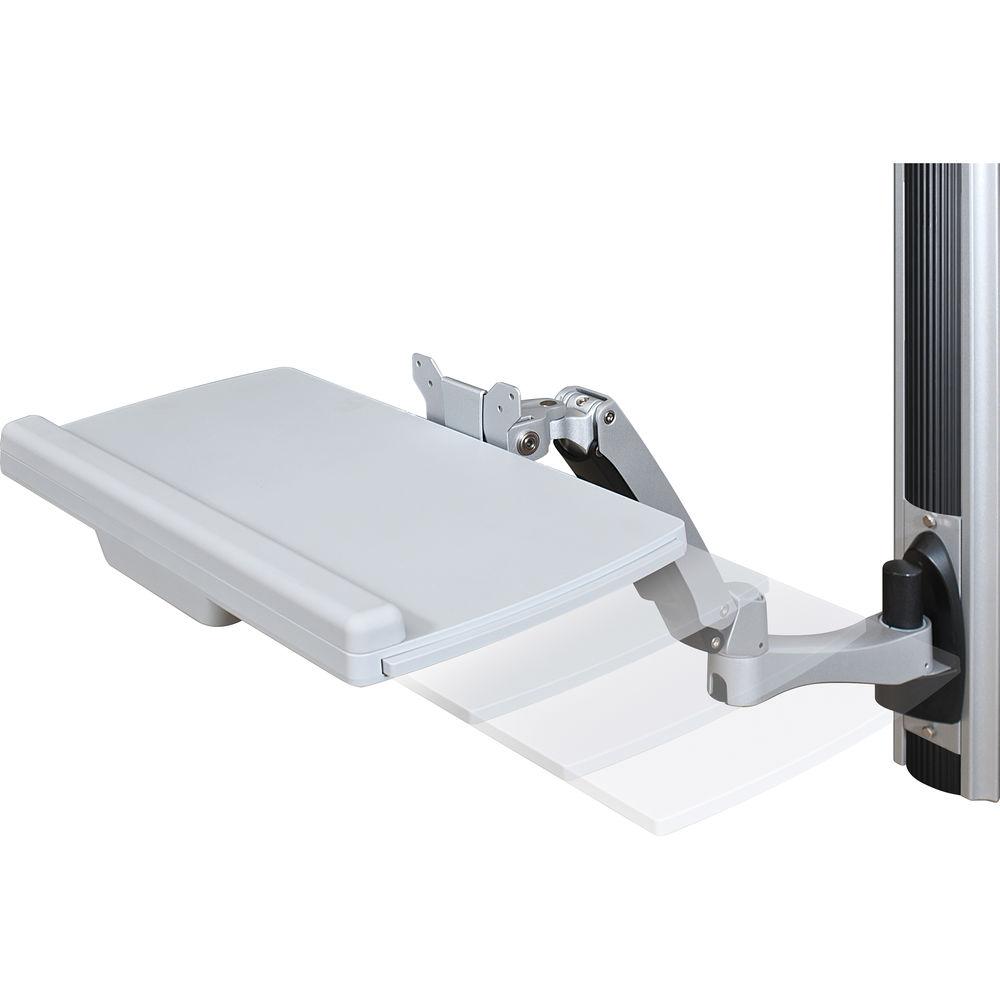

The workstation is wall mountable and holds a monitor, keyboard, and mouse. The workstation features a wide range of one touch adjustments with no buttons, knobs, levers, or switches. Use just one hand to adjust tilt, swivel, and pan on each of the arms. Spring-loaded joints ensure the arms stay in place, yet are easily repositionable. This base unit includes a single monitor mount and a keyboard arm. The base and components include cable management channels to keep cords out of your way. The dual-jointed adjustable keyboard arm features height adjustment, lateral adjustment, and tilts for correct positioning. The keyboard tray measures 18.25 x 10" and includes a retractable mouse platform (8.5 x 8.38") that can be used on the right or left side. The monitor arm accommodates a monitor up to 24". Dual jointed arms feature swivel, tilt, and pan adjustments and allow landscape and portrait orientation. It is VESA compatible and folds to 22.87 x 7.91" when not in use.

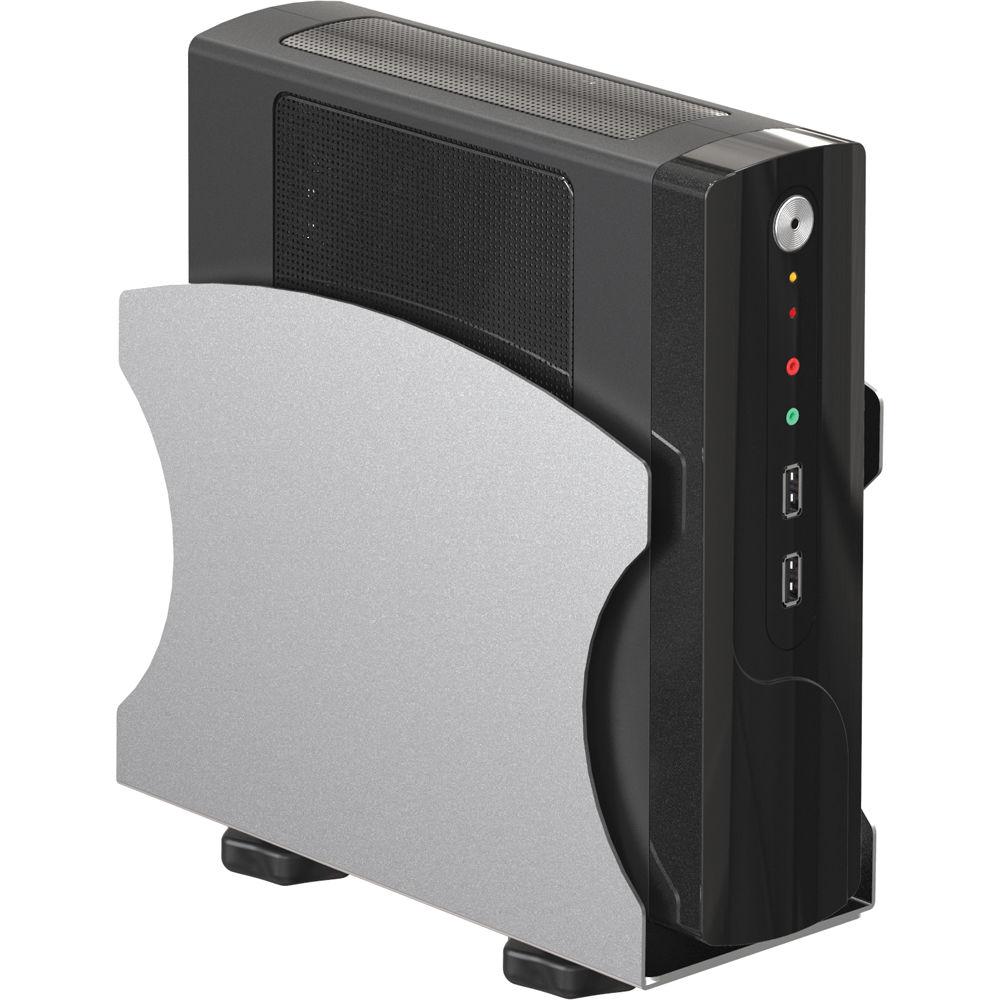

The CPU holder attaches to the HG Wall Mount Workstation by sliding it onto the base of the unit. It adjusts from 2-4.25" in width and from 4.25-7.88" in depth.

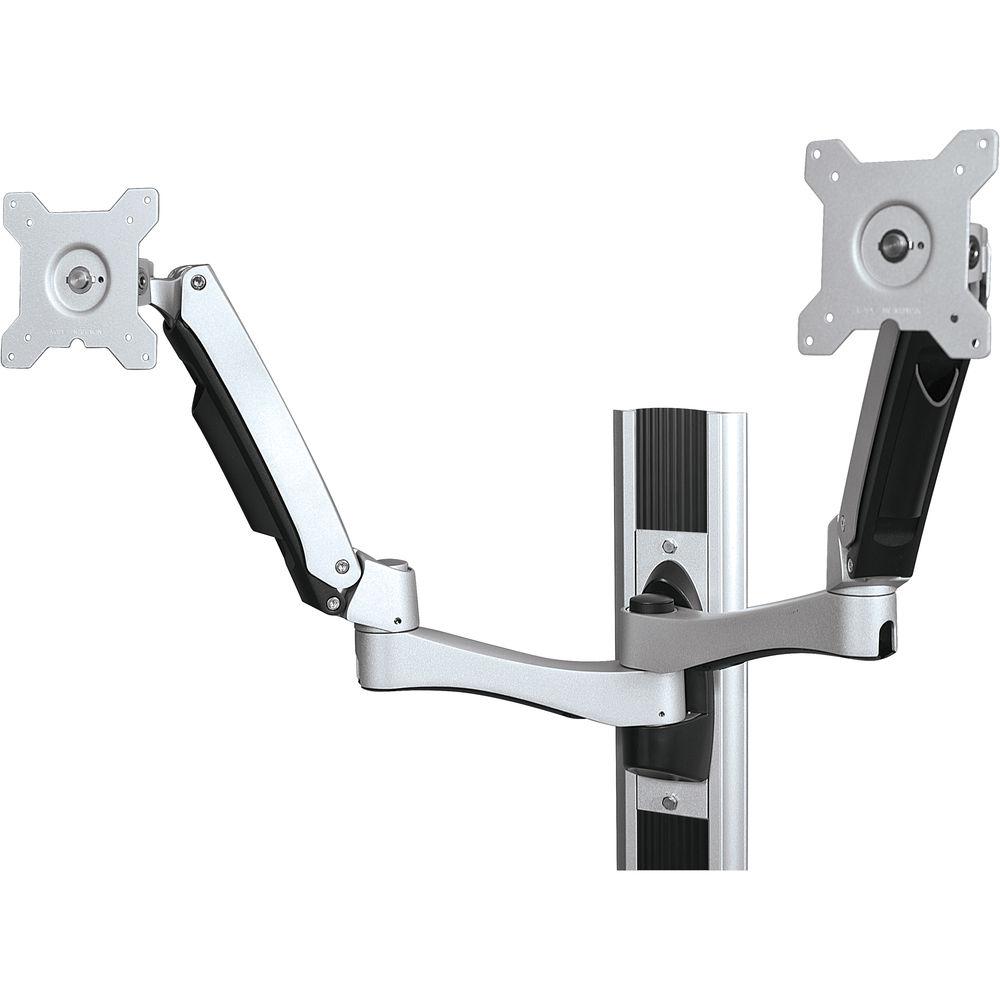

The additional monitor mount saves desktop space while providing full adjustment for ergonomic viewing and accessibility. The dual-jointed arm features 95º of tilt adjustment. The monitor mount joint features 180º of swivel and 110º of tilt adjustment. A full 360º of rotation adjustment allows you to fix your monitor in either landscape or portrait orientation. The arm holds a monitor up to 24" and 22 lb and is VESA compatible in 75x75mm or 100x100mm mounting patterns. The arm locks attaches to the existing HG mount. UPC: 717641666600 In the Box Balt HG Wall Mount Workstation with CPU Holder and Additional Monitor Arm Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Balt HG Wall Mount Workstation with CPU Holder and Additional Monitor Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBalt 66660 Specs | Screen Size Supported | Each Monitor Arm: Up to 24" (60.96 cm) | | Weight Capacity | Each Monitor Arm: 22 lb (9.98 kg) | | Monitor | Tilt: 110º
Pan: 180º
Rotate: 360º | | Orientation | Landscape and portrait | | Tilt | Each Monitor Arm: 95º | | Adjustments | CPU Holder Width: 2-4.25" (5.08-10.8 cm)
CPU Holder Depth: 4.25-7.88" (10.8-20.02 cm)
Each Monitor Arm: 180º of swivel and 110º of tilt | | Compliance | TAA | | VESA Compatibility | 75 x 75 or 100 x 100 mm | | Arm Extended Dimensions | Keyboard: 33.88" (86.06 cm)
Monitors: 16.25" (41.76 cm) | | Dimensions | Keyboard Tray: 18.25 x 10" (46.36 x 25.4 cm)
Mouse Platform: 8.5 x 8.38" (21.6 x 21.29 cm)
Folded: 22.87 x 7.91" (58.1 x 20.1 cm)
CPU Holder: 7.38 x 9.5 x 8.63" (18.75 x 24.13 x 21.92 cm)
Each Monitor Arm: 4.53 x 4.53 x 16.26" (11.51 x 11.51 x 41.3 cm)
Overall: 34.65 x 22.87 x 7.91" (88.01 x 58.1 x 20.1 cm) | | | | Box Dimensions (LxWxH) | 26.0 x 20.0 x 7.0" |
