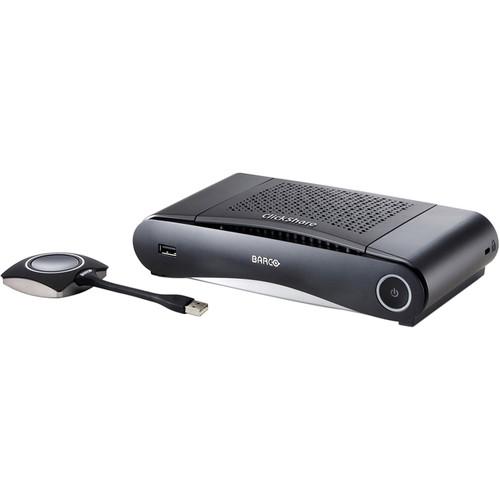

User Manual for Barco CS-100 ClickShare Wireless Presentation System Click to enlarge the picture
Contents of the user manual for the Barco CS-100 ClickShare Wireless Presentation System
- Product category: Projector Accessories Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Projector Accessories
|
User manual for the Barco CS-100 ClickShare Wireless Presentation System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description - Barco ClickShare CS-100 wireless presentation system for small sized meeting rooms
Quickly share data, audio, and HD video over a secure wireless connection with the Barco CS-100 ClickShare Wireless Presentation System. Plug the included ClickShare Button into your computer and connect the Base Unit to your HDMI-compatible display or projector to wirelessly share content. Alternatively, you can use the ClickShare app to mirror your Android or iOS smartphone or tablet to the connected display. This ClickShare system has a range of up to 100' via Wi-Fi 802.11a/g/n technology. - Sharing As a Basic Need
- The CS-100 brings the ClickShare experience to small meeting and huddle rooms where sharing content from a laptop or mobile device is a basic need. Anyone – including guests – can connect with one click and share right away, without the need for any training. Users simply plug the USB-powered ClickShare Button into their Windows or Mac computer and click the button to get the content from their laptop on the meeting room screen. With the ClickShare App, users can also share content from their mobile phones or tablets.
- A Stand-Alone Model
- The CS-100 is a stand-alone model with an HDMI output that allows up to 8 users to connect with one user wirelessly sharing at a time. The CS-100 includes the standard ClickShare security features including encryption, login management, https, and the possibility to hide the SSID of the Base Unit's wireless network.
In the Box Barco CS-100 ClickShare Wireless Presentation System DC Adapter with Type A, C, G, and I AC Clips USB Stick with User Documentation Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco CS-100 ClickShare Wireless Presentation System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Barco CS-100 ClickShare Wireless Presentation System can be downloaded in PDF format at the link stated below.
Technical parametersBarco CS100 Specs | Inputs and Outputs | 1 x Ethernet LAN
2 x USB Type-A (1 front, 1 back)
1 x HDMI out
1 x 1/8" audio out | | Simultaneous Sources on Screen | 1 | | Simultaneous Connections | 8 | | Encryption | WPA2-PSK in standalone mode | | System Requirements | Computer:
Windows 7/8/8.1/10
Mac OS X 10.10/10.11
ClickShare App:
Android 4.1 and later
iOS 7.0 and later | | Content Sharing | Documents, browser, and camera for both Android and iOS devices | | Output Resolution | 1920x1200 | | Frame Rate | Up to 30 fps | | Wi-Fi Bands | IEEE 802.11a/g/n | | Wireless Range | Up to 100' (30 m) between ClickShare Button and ClickShare Base Unit | | Noise Level | Fanless | | Frequency Band | 2.4 and 5 GHz | | Kensington Lock Support | Yes | | Approvals | FCC, CE | | Temperature Ranges | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C)
Max: 95°F (35°C) at 9842.5' (3000 m) | | Non-Condensing Humidity Range | Operating: 0 to 85% RH
Storage: 0 to 90% RH | | Power Consumption | Operating: 6 W typical
Maximum: 18 W
ECO Standby: 2.6 W
Deep Standby: 0.4 W | | Dimensions | ClickShare Base Unit: 8.1 x 4.5 x 1.8" (205 x 115 x 45 mm) minimum | | Weight | ClickShare Base Unit: 1.32 lb (600 g) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 13.9 x 7.7 x 3.4" |
