Barco CS-100 ClickShare Wireless Presentation System

Search your instruction manual in PDF to download

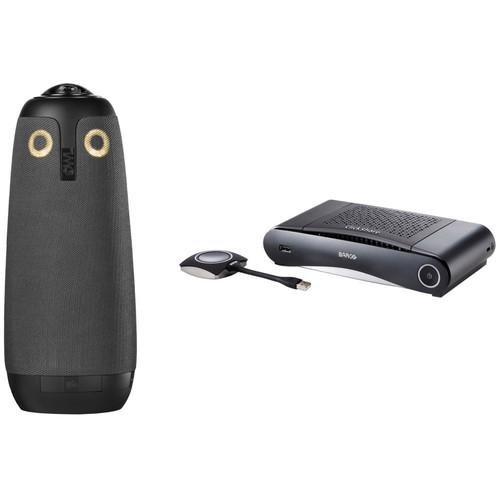

User Manual for Barco CS-100 ClickShare Wireless Presentation System and 360° Video Conferencing Kit

Click to enlarge the picture
Barco CS-100 ClickShare Wireless Presentation System and 360° Video Conferencing Kit Contents of the user manual for the Barco CS-100 ClickShare Wireless Presentation System
  • Product category: Projector Accessories Barco
  • Brand: Barco
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Barco Projector Accessories

User manual for the Barco CS-100 ClickShare Wireless Presentation System contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Barco product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!



Product description

Create an all-in-one wireless presentation and teleconferencing setup with this Kit that consists of the Barco CS-100 ClickShare Wireless Presentation System and the Owl Labs Meeting Owl A/V 360° Conference Device. Using the two systems together, you can host teleconferences complete with wireless presentation from Windows, Mac, iOS, and Android devices.
  • Barco CS-100 ClickShare Wireless Presentation System
    • Barco ClickShare CS-100 wireless presentation system for small sized meeting rooms
    Quickly share data, audio, and HD video over a secure wireless connection with the Barco CS-100 ClickShare Wireless Presentation System. Plug the included ClickShare Button into your computer and connect the Base Unit to your HDMI-compatible display or projector to wirelessly share content. Alternatively, you can use the ClickShare app to mirror your Android or iOS smartphone or tablet to the connected display. This ClickShare system has a range of up to 100' via Wi-Fi 802.11a/g/n technology.
      Sharing As a Basic Need
    • The CS-100 brings the ClickShare experience to small meeting and huddle rooms where sharing content from a laptop or mobile device is a basic need. Anyone – including guests – can connect with one click and share right away, without the need for any training. Users simply plug the USB-powered ClickShare Button into their Windows or Mac computer and click the button to get the content from their laptop on the meeting room screen. With the ClickShare App, users can also share content from their mobile phones or tablets.
      A Stand-Alone Model
    • The CS-100 is a stand-alone model with an HDMI output that allows up to 8 users to connect with one user wirelessly sharing at a time. The CS-100 includes the standard ClickShare security features including encryption, login management, https, and the possibility to hide the SSID of the Base Unit's wireless network.
  • Owl Labs Meeting Owl All-In-One Audio Video 360 Conference Device
    • Barco ClickShare CS-100 wireless presentation system for small sized meeting rooms
    The Meeting Owl All-In-One Audio Video 360 Conference Device from Owl Labs combines a 360° lens with eight omnidirectional echo-canceling microphones, and a 360° speaker. It can be used with several major web-based video conferencing platforms and is your video conferencing eyes and ears when connected to an in-room computer. The Meeting Owl's single lens provides a full view of the room without any moving parts or image stitching. The eight-microphone array allows everyone within a 12' diameter to be heard. Beamforming technology adjusts focus to the person speaking, and noise and echo cancellation ensure you hear the important things and not the air conditioning. The USB device is designed to work with all major web-based video conferencing platforms. You don't have to download or install anything. Just plug it into your computer and you're good to go. In addition, the Meeting Owl's output resolution is 720p.
      Intelligent Video
    • The 360° lens shows the entire room and automatically focuses on people as they speak.
      360° Audio
    • The 8 omnidirectional mics and 360° speaker makes sure you can hear everyone.
      All-In-One
    • Connects via USB and combines video and audio to simplify your meeting setup.
      Works with Everything
    • Works with all web-based video conferencing platforms. No downloads needed.
    UPC: 868222000402
In the Box
  • CS-100 ClickShare Wireless Presentation System acvwrbtzztvaadyvrqevaverdfzz
  • DC Adapter with Type A, C, G, and I AC Clips
  • USB Stick with User Documentation
  • Limited 3-Year Warranty
  • Owl Labs - Meeting Owl All-In-One Audio Video 360 Conference Device
Table of Contents




Upload User Manual

Have you got an user manual for the Barco CS-100 ClickShare Wireless Presentation System and 360° Video Conferencing Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Barco CS-100 ClickShare Wireless Presentation System
    Inputs and Outputs 1 x Ethernet LAN
    2 x USB Type-A (1 front, 1 back)
    1 x HDMI out
    1 x 1/8" audio out
    Simultaneous Sources on Screen 1
    Simultaneous Connections 8
    Encryption WPA2-PSK in standalone mode
    System Requirements Computer:
    Windows 7/8/8.1/10
    Mac OS X 10.10/10.11

    ClickShare App:
    Android 4.1 and later
    iOS 7.0 and later
    Content Sharing Documents, browser, and camera for both Android and iOS devices
    Output Resolution 1920x1200
    Frame Rate Up to 30 fps
    Wi-Fi Bands IEEE 802.11a/g/n
    Wireless Range Up to 100' (30 m) between ClickShare Button and ClickShare Base Unit
    Noise Level Fanless
    Frequency Band 2.4 and 5 GHz
    Kensington Lock Support Yes
    Approvals FCC, CE
    Temperature Ranges Operating: 32 to 104°F (0 to 40°C)
    Storage: -4 to 140°F (-20 to 60°C)
    Max: 95°F (35°C) at 9842.5' (3000 m)
    Non-Condensing Humidity Range Operating: 0 to 85% RH
    Storage: 0 to 90% RH
    Power Consumption Operating: 6 W typical
    Maximum: 18 W
    ECO Standby: 2.6 W
    Deep Standby: 0.4 W
    Dimensions ClickShare Base Unit: 8.1 x 4.5 x 1.8" (205 x 115 x 45 mm) minimum
    Weight ClickShare Base Unit: 1.32 lb (600 g)
    Box Dimensions (LxWxH) 13.9 x 7.7 x 3.4"
  • Owl Labs Meeting Owl All-In-One Audio Video 360 Conference Device
    Type All-in-one design
    USB Plug-and-play connectivity
    Processor Qualcomm Snapdragon 410 processor
    System Requirements USB UVC 1.1, UAC1 compatible
    Windows 7 or higher
    Mac 10.8 or higher
    Linux 2.6.26 or higher
    Chrome OS USB 2.0 port
    Intelligent Function Automatically shows current speaker
    Dynamically highlights up to 3 in-room participants
    No set-up or configuration required
    Over-the-Air Update Requirements Wi-Fi connectivity support WPA and WPA2 networks
    iOS 10 or higher
    Android 5 or higher
    360° Camera Custom-designed single-lens solution
    Full panoramic view of the room
    Dynamic-range lens prevents silhouetting and provides superior low-light performance
    Web Conferencing Works with most web-based video conferencing applications
    Video Resolution 720p
    Microphones and Speakers 360° wideband audio with 12' / 3.6 m radius range
    Acoustic echo cancellation
    48 kHz sampling rate
    360° sound capture (8-microphone array)
    360° speaker
    Dimensions (W x D x H) 4.4 x 4.4 x 10.75" / 111 x 111 x 273 mm
    Weight 2.65 lb / 1.2 kg
    Box Dimensions (LxWxH) 12.5 x 7.2 x 6.6"
