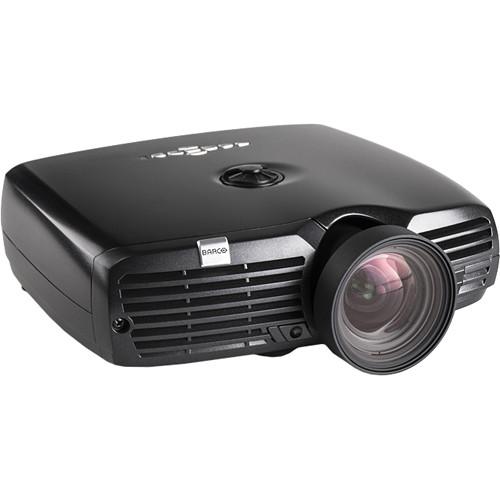

Product description The black F-22 WUXGA Multimedia Projector with Standard Zoom Lens and VizSim BrightColor Wheel from Barco is a professional installation projector adaptable to a range of use cases, such as flight simulators and theme park rides, museums, visitor attractions, and more. The projector features a brightness of up to 1900 lumens (depending on settings), has a native WUXGA (1920 x 1200) resolution and native 16:10 aspect ratio format. In addition to its native aspect ratio and resolution, through internal scaling, the F22 can accommodate a wide range of formats, from 480p SD all the way up to WUXGA (1920 x 1200). The F22 features connectivity to accommodate a variety of sources. There are HDMI and DVI inputs for HDTV and digital computer sources. There is a VGA port for analog computer sources or for integration with existing A/V installations. Plus, there are composite, component, and S-video inputs to cover most analog video sources, whether SD or HD. For remote operation, there is an Ethernet port that enables control across a local network, as well as an RS-232 port with loop-through for integration with automation systems such as Crestron. Finally, there is a USB port for direct operation from a computer. - EN35 Standard Lens
- The Standard Zoom Lens features a throw ratio of 1.89 to 2.62:1 with 720p, 1.73 to 2.39:1 with SXGA+, 1.60 to 2.00:1 with 1080p, and 1.60 to 2.00:1 with WUXGA. It can be considered a "middle-of-the road" lens - not short throw and not long throw. Throw ratio is one of the most important specifications a projector lens has as it tells you the image size (width) you will get at a given distance from the screen
- The Right Color Wheel for Your Configuration
- The F22 is available with a range of color wheel options, including High Brightness, Graphics, or VizSim, each with specific characteristics. As the VizSim color wheel focuses on color quality, it lowers color cross-talk and contamination, and reduces artifacting. The Graphics version offers a lower saturation but higher brightness for general AV use, and the High Brightness option provides high-brightness while retaining accurate color reproduction. This particular projector features the VizSim Bright color wheel.
- Simplified Installation and Maintenance
- The F22 can be installed in motion simulators without extra mounting hardware. And, as there's no need to dismount the projector when replacing the lamp, you can simply take off the front panel so that mechanical and optical settings are left untouched.
- Integrated Automation Software
- Thanks to the built-in real time clock and timer, the F22 can be set to perform a specific task - such as automatically starting and switching off, switching between various sources at set intervals. Up to 10 different programs can be stored individually.
- Stereo 3D Support
- The F22 features INFITEC EX 3D support, a stereoscopic 3D technology based on interference filters that sees use in cinema projection and other professional visualization applications.
- Fully Networkable
- Most projector settings and features can be set via the built-in web page, thus allowing for remote asset management.
In the Box Barco F-22 WUXGA Installation Projector (Standard Zoom/VizSim Bright/Black) Remote Control with Batteries Limited 3-Year Warranty on Projector Limited 90-Day/500 Hours Warranty on Lamp (Whichever Comes First) Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco F-22 WUXGA Installation Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9023057 Specs | | | Display System | 1-Chip DLP optical lens shift design | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | SXGA+ - 1400 x 1050
Full HD 1080p - 1920 x 1080 | | Max Brightness | 1900 Lumens | | Aspect Ratio | Native: 16:10
Supported: 4:3
Supported: 16:9 | | Contrast Ratio | 2500:1 | | Color Wheel | 3-Segment (R, G, B) | | Scan | Horizontal: 15 - 150 Hz
Vertical: 48 - 190 kHz | | Focus | Manual | | Throw Ratio | 1.6 - 2.21:1 | | | | Inputs/Outputs | 1 x DVI-D Video (Input)
1 x HDMI Control (Input)
1 x VGA (DE-15) Video (Input)
1 x HDMI Video (Input)
1 x Component (3RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (BNC) Video (Input)
1 x Ethernet (RJ45) Control (Input/Output)
2 x Unspecified Signal (DE-9) Control (Input/Output)
1 x USB Control (Input/Output)
2 x 1/8" (3.5 mm) Mini Control (Input)
1 x 1/8" (3.5 mm) Mini Control (Input) | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 220 W | | Expected Lamp Life | Medium Brightness: 2250 Hours
Low Brightness: 3000 Hours | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 1061 BTU Maximum | | Temperature | Operating
50 to 104°F (10 to 40°C)
Humidity: 20 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 10.9 x 3.7 x 9.2" / 278.0 x 94.0 x 234.0 mm | | Weight | 6.4 lb / 2.9 kg | Note: Conforms to CE, FCC Class A and cCSAus standards.
