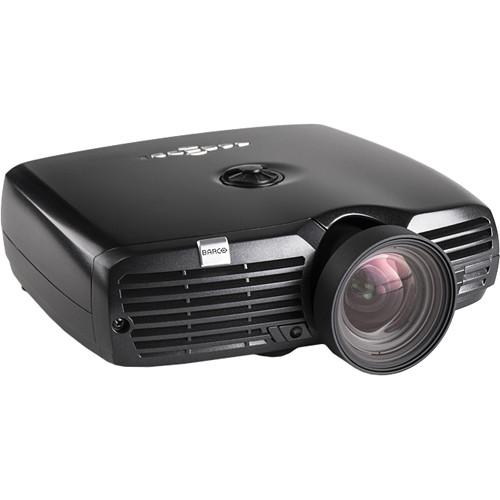

Product description The F22 SXGA+ Multimedia Projector with Wide Angle Lens from Barco is a professional installation projector adaptable to a range of use cases - flight simulators and theme park rides, museums and visitor attractions, and more. The projector features a brightness of up to 2000 lumens (depending on settings), and has a native resolution of SXGA+ (1400 x 1050). This is a 4:3 format. In addition to its native aspect ratio and resolution, through internal scaling the F22 can accommodate a wide range of formats, from 480p SD all the way up to WUXGA (1920 x 1200).
The F22 features connectivity to accommodate a variety of sources. There are HDMI and DVI inputs for HDTV and digital computer sources. There is a VGA port for analog computer sources or for integration with existing A/V installations. Plus, there are composite, component, and S-video inputs to cover most analog video sources, whether SD or HD.
For remote operation there is an Ethernet port that enables control across a local network, and there is an RS-232 port with loop-through for integration with automation systems such as Crestron. Finally, there is a USB port for direct operation from a computer. EN17 Wide Angle Lens - The Wide Angle Lens features a throw ratio of 1.00:1. It can be considered a short-throw lens - ideal where the projector needs to be placed relatively close to the screen. Throw ratio is one of the most important specifications a projector lens has as it tells you the image size (width) you will get at a given distance from the screen
DLP Imaging System - The F22 features a DLP imaging device with a VizSim Bright color wheel, which offers better contrast and color reproduction than many comparable LCD-based systems. This is further enhanced by 10-bit per channel image processing for smoother color gradations than 8-bit systems
The Right Color Wheel for Your Configuration - The F22 is available with a range of color wheel options, including High Brightness, VizSim, and VizSim Bright, each with specific characteristics. As the VizSim color wheels focus on color quality, they lower color cross-talk and contamination, and reduce artifacts. The High Brightness option provides high brightness while retaining accurate color reproduction. This particular projector features the VizSim Bright color wheel.
Simplified Installation and Maintenance - The F22 can be installed in motion simulators without extra mounting hardware. To replace the lamp, you can simply take off the front panel, leaving mechanical and optical settings untouched. You don't even have to unmount the projector.
Integrated Automation Software - Thanks to the built-in real-time clock and timer, the F22 can be set to perform a specific task - such as automatically starting and switching off, and switching between various sources at set intervals. Up to 10 different programs can be stored individually
Stereo 3D Support - The F22 features INFITEC EX 3D support, a stereoscopic 3D technology based on interference filters that sees use in cinema projection and other professional visualization applications
Fully Networkable - Most projector settings and features can be set via the built-in web page, thus allowing for remote asset management
In the Box Barco F22 SXGA+ Multimedia Projector (Wide Angle Lens) Remote Control with Batteries Limited 3-Year Warranty on Projector Limited 90-Day/500 Hours Warranty on Lamp (Whichever Comes First) Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco F22 SXGA Multimedia Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9023028 Specs | | | Display System | 1-Chip DLP | | Native Chip Resolution | 1400 x 1050 (SXGA+) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 2000 Lumens | | Aspect Ratio | Native: 4:3 | | Contrast Ratio | 2500:1 | | Color Wheel | 3-Segment (R, G, B) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 - 150 kHz
Vertical: 48 - 190 Hz | | Lens | f/2.6 (f = 19.7 mm) | | Optical Zoom | None | | Throw Ratio | 1:1 | | | | Inputs/Outputs | 1 x HDMI Video (Input)
1 x DVI-I Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x Component (3RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Remote (Input)
1 x 12 V Trigger Control (Input)
1 x USB Type-B Female (Input)
1 x Ethernet (RJ45) Control (Input) | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 220 W | | Expected Lamp Life | Low Brightness: 2250 Hours
Low Brightness: 3000 Hours | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 1061 BTU | | Temperature | Operating
50 to 104°F (10 to 40°C)
Humidity: 20 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 10.9 x 3.7 x 9.2" / 278.0 x 94.0 x 234.0 mm | | Weight | 6.4 lb / 2.9 kg approximately |
