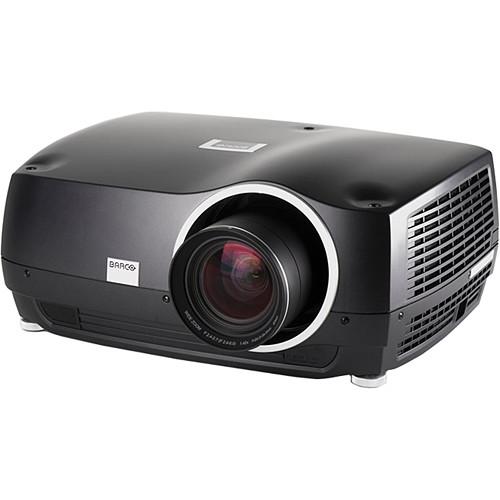

User Manual for Barco F32 WUXGA Multimedia Projector Click to enlarge the picture
Contents of the user manual for the Barco F32 WUXGA Multimedia Projector
- Product category: Multimedia Projectors Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Multimedia Projectors
|
User manual for the Barco F32 WUXGA Multimedia Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The black F32 WUXGA Multimedia Projector with lens available separately from Barco is a professional installation projector adaptable to a range of small and medium venue applications - especially where high image quality is demanded even under less than ideal conditions. The projector features a brightness of up to 7650 lumens (depending on settings), and has a native resolution of WUXGA (1920 x 1200). This is a 16:10 format. In addition to its native aspect ratio and resolution, through internal scaling the F32 can accommodate a wide range of formats, from 480p SD all the way up to WUXGA (1920 x 1200).
The F32 features connectivity to accommodate a variety of sources. There are HDMI and DVI inputs for HDTV and digital computer sources. There is a VGA port for analog computer sources or for integration with existing A/V installations. For analog video, there are composite, component, and S-video inputs, that between them cover most sources, whether SD or HD. Finally, there is a 5-BNC port that can be used with an RGBHV or YUV component signal, and can also accept a VGA signal using a separately available BNC to VGA adapter.
For remote operation, there is an Ethernet port that enables control across a local network, and there is an RS-232 port with loop-through for integration with automation systems such as Crestron. A USB port enables direct operation from a computer. Finally, there are two 3.5mm 12V LVC trigger ports so that the projector can actuate another appliance in an A/V installation, such as a motorized projection screen. - Interchangeable Lens Design (Lens Not Included)
- Featuring an interchangeable lens design, the F32 is compatible with a range of separately available lenses, including short throw, zoom, and long throw options
- DLP Imaging System
- The F32 features a DLP imaging device with a High Brightness(MKIII) color wheel, which offers better contrast and color reproduction than many comparable LCD-based systems. In addition, DLP technology is unaffected by UV light, yielding more consistent performance over its lifetime than many alternative technologies. Its performance is further enhanced by 10-bit per channel image processing for smoother color gradations than 8-bit systems
- The Right Color Wheel for Your Configuration
- The F32 is available with a range of color wheel options, including High Brightness, High Brightness MKIII, or VizSim, each with specific characteristics. As the VizSim color wheel focuses on color quality, it lowers color cross-talk and contamination, and reduces artifacts. The High Brightness option provides high brightness while retaining accurate color reproduction. This particular projector features the High Brightness(MKIII) color wheel
- RealColor Color Management
- RealColor is a color management calibration suite that enables edge blending for an unlimited number of projectors, designed to ensure uniform images for multi-channel installations. It provides a quick way to calibrate and set up perfect images - allowing you to adjust them simply by changing characteristics such as color temperature. RealColor works by mathematically calculating each color independently
- Intelligent Active Cooling
- The F32 features intelligent active cooling of the entire system for reduced noise and extended reliability and lifetime. Using the thermo-electric cooling principle, power is applied to actively cool key elements throughout the projector
- VIDI Lamp Technology
- Philips' VIDI technology enables dynamic lamp driving over time, and enhances image quality through reducing grayscale artifacts, boosting color saturation, increasing contrast, and improving lamp stability. Unlike typical non-VIDI-based projectors, the lamp power is digitally controlled, as is its performance over time
- Stereo 3D Support
- The F32 features INFITEC EX 3D support, a stereoscopic 3D technology based on interference filters that sees use in cinema projection and other professional visualization applications
In the Box Barco F32 WUXGA (1920 x 1200) Multimedia Projector (No Lens) Remote Control with Batteries Limited 3-Year Warranty on Projector Limited 90-Day/500 Hours Warranty on Lamp (Whichever Comes First) Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco F32 WUXGA Multimedia Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9023272 Specs | | | Display System | 1-Chip DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | WUXGA | | Max Brightness | 7650 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 7500:1 Full on/off with lens IRIS stopped down | | DLP Link 3D | Yes | | Scan | Horizontal: 15 - 150 kHz
Vertical: 48 - 190 Hz | | | | Inputs/Outputs | 1 x DVI-D Video (Input)
1 x HDMI Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
1 x Component (3RCA) Video (Input)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x USB Control (Input)
1 x Ethernet (RJ45) Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x RS-232C (Unspecified Connector) Control (Output)
2 x 12 V Trigger Control (Input)
1 x 1/8" (3.5 mm) Mini Remote (Input) | | | | Light Source | Lamp (2 x UHP) | | Lamp Power | 300 W Each bulb | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 2500 Hours | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 2900 BTU | | Temperature | Operating
50 to 104°F (10 to 40°C)
Humidity: 20 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 20.1 x 9.2 x 14.8" / 510.0 x 233.0 x 376.0 mm | | Weight | 27.8 lb / 12.6 kg |
