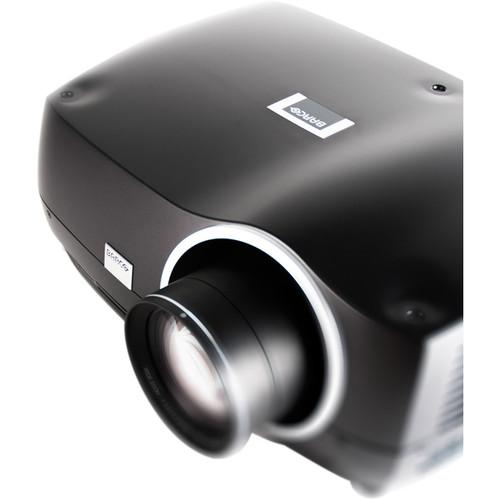

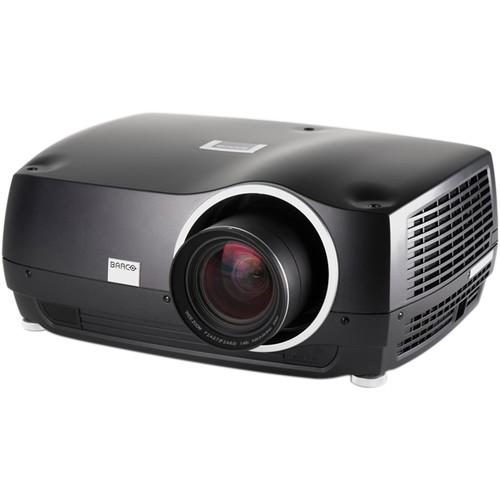

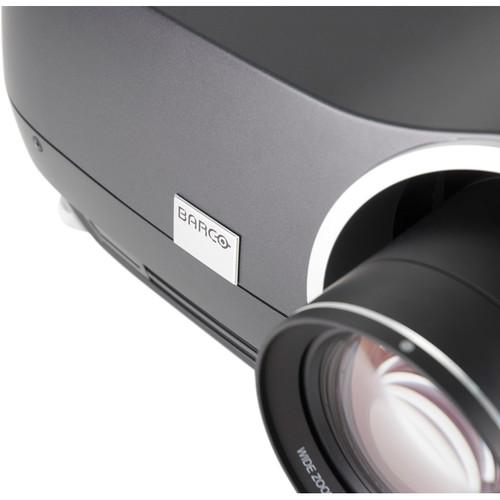

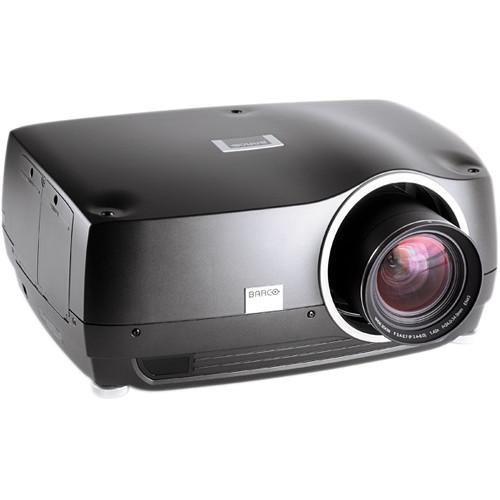

User Manual for Barco F32 WUXGA Multimedia Single-Chip DLP Projector Click to enlarge the picture
Contents of the user manual for the Barco F32 WUXGA Multimedia Single-Chip DLP
- Product category: Multimedia Projectors Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Multimedia Projectors
 |
User manual for the Barco F32 WUXGA Multimedia Single-Chip DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The pearl white F32 WUXGA Multimedia Projector from Barco is a 16:10 format projector that offers a brightness rating of up to 4000 lumens and has a native resolution of WUXGA (1920 x 1200). With internal scaling, the F32 can accommodate a wide range of formats, from 480p SD all the way up to WUXGA (1920 x 1200). It also comes with HDMI, DVI, VGA, composite, component, S-video, and 5-BNC inputs.
The F32 WUXGA Projector comes with a VizSim Bright Color Wheel that helps in lowering color cross-talk and contamination, and reduces artifacts. This color wheel is suited for larger venues where brightness and color are of equal importance. It can be used for simulation, visualization, collaboration rooms, visitor attractions, and multi-channel applications. - Interchangeable Lens Design (Lens Not Included)
- Featuring an interchangeable lens design, the F32 is compatible with a range of separately available lenses, including short throw, zoom, and long throw options
- DLP Imaging System
- Thanks to the single-chip DLP technology, the F32 Projector generates stable, high-contrast (up to 7500:1) images with saturated colors. It also uses BrilliantColor technology with 6-bit color processing to provide a wide color color gamut and accurate colors.
- RealColor Color Management
- RealColor is a color management calibration suite that enables edge blending for an unlimited number of projectors and is designed to ensure uniform images for multi-channel installations. It provides a quick way to calibrate and set up accurate images and allows you to adjust them by changing characteristics such as color temperature. RealColor works by mathematically calculating each color independently.
- Active Cooling
- The F32 Projector features an active cooling system to reduce noise and improve overall reliability. Using the thermo-electric cooling principle, power is applied to actively cool key elements throughout the projector.
- VIDI Lamp Technology
- Philips' VIDI technology enables dynamic lamp driving and enhances image quality by reducing grayscale artifacts, increasing color saturation and contrast, and improving lamp stability. Unlike typical non-VIDI-based projectors, the lamp power is digitally controlled.
- Stereo 3D Support
- The F32 features INFITEC EX 3D support, a stereoscopic 3D technology based on interference filters that sees use in cinema projection and other professional visualization applications.
In the Box Barco F32 WUXGA Multimedia Single-Chip DLP Projector (No Lens, VizSim Bright) Remote Control with Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco F32 WUXGA Multimedia Single-Chip DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco F32 Specs | | | Display System | 1-Chip DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | WUXGA | | Max Brightness | 8000 Lumens | | Aspect Ratio | Native: 4:3
Supported: 16:10
Supported: 16:9 | | Contrast Ratio | 7500:1 Full on/off with lens IRIS stopped down | | DLP Link 3D | Yes | | Scan | Horizontal: 15 to 150 kHz
Vertical: 48 to 190 Hz | | | | Inputs/Outputs | 1 x DVI-D Video (Input)
1 x HDMI Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
1 x Component (3RCA) Video (Input)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x USB Control (Input)
1 x Ethernet (RJ45) Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x RS-232C (Unspecified Connector) Control (Output)
2 x 12 V Trigger Control (Input)
1 x 1/8" (3.5 mm) Mini Remote (Input) | | | | Light Source | Lamp (2 x UHP) | | Lamp Power | 300 W Each bulb | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 2500 Hours | | Heat Dissipation | 2900 BTU | | Temperature | Operating
50 to 104°F (10 to 40°C)
Humidity: 20 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 20.1 x 9.2 x 14.8" / 510.0 x 233.0 x 376.0 mm | | Weight | 27.8 lb / 12.6 kg |
