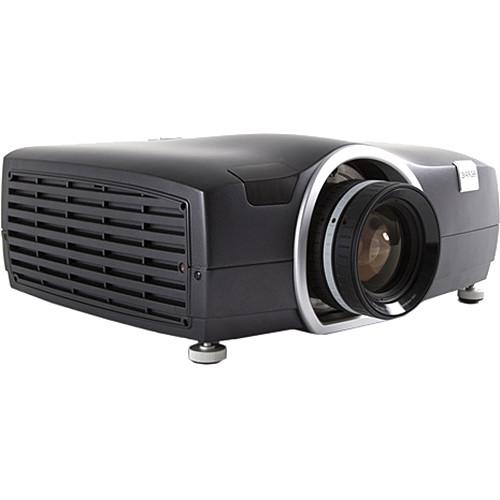

User Manual for Barco F50 Panorama 3D Multimedia Projector Click to enlarge the picture
Contents of the user manual for the Barco F50 Panorama 3D Multimedia Projector
- Product category: Multimedia Projectors Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Multimedia Projectors
 |
User manual for the Barco F50 Panorama 3D Multimedia Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|

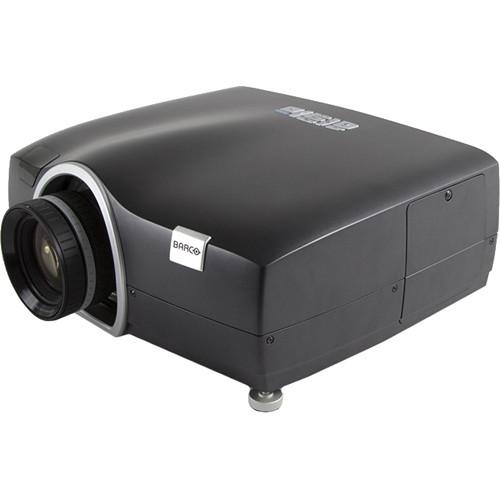

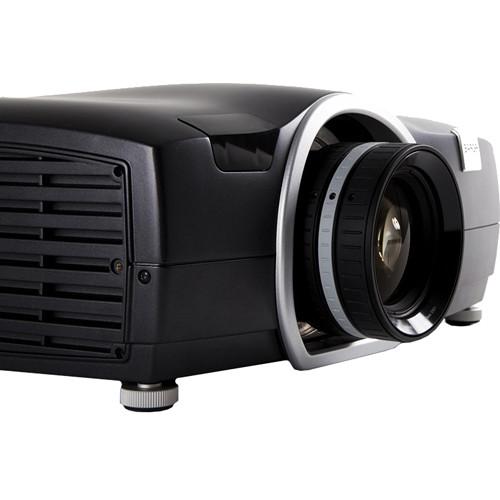

Product description The black metallic F50 Panorama 3D Multimedia Projector with lens available separately from Barco is a professional 3D projector adaptable to a range of applications requiring 24/7 operation. Suitable fields include virtual reality, simulation and training, visitor attractions, collaboration suites and scientific visualization.
The projector features a brightness of up to 2000 lumens (depending on settings), and has a native resolution of Panorama. This is a 21:9 format. In addition to its native aspect ratio and resolution, through internal scaling the F50 can accommodate a wide range of formats, from 480p SD all the way up to 2560 x 1600.
The F50 features connectivity to accommodate a variety of sources. There are two DisplayPort 1.2 inputs, plus one DVI-DL and one HDMI input. For analog computer graphics or integration with existing A/V systems, there is a VGA port. For professional digital video sources, there are two 3G-SDI ports. Finally, for long-run HDTV signals there is one HDBaseT Ethernet port.
For remote operation, there is an Ethernet port that enables control across a local network, and there is an RS-232 port for integration with automation systems such as Crestron. A USB port enables direct operation from a computer. Interchangeable Lens Design (Lens Not Included) - Featuring an interchangeable lens design, the F50 is compatible with a range of separately available lenses, including short throw, zoom, and long throw options. Compatible lenses include:
- Standard Zoom (EN51)
- Wide Angle Fixed (EN52)
- Ultra Wide Angle Fixed (EN53)
- Long Throw Zoom (EN54)
- Ultra Wide Angle Zoom (EN55)
- Wide Angle Zoom (EN56)
- Ultra Short Throw (EN57)
21:9 Panoramic Image with 2560 x 1080 Resolution - Replace two SXGA+ resolution projectors with a single F50. This version of the projector features a 21:9 (2.37:1) panoramic aspect ratio with a resolution of 2560 x 1080.
DLP Imaging System - The F50 features a filter-free DLP imaging device with a VizSim Bright color wheel, which offers better contrast and color reproduction than many comparable LCD-based systems. In addition, DLP technology is unaffected by UV light, yielding more consistent performance over its lifetime than many alternative technologies.
The Right Color Wheel for Your Configuration - The F50 is available with a range of color wheel options, including High Brightness, VizSim, and VizSim Bright, each with specific characteristics. As the VizSim color wheels focus on color quality, they lower color cross-talk and contamination, and reduce artifacts. The High Brightness option provides high brightness while retaining accurate color reproduction. This particular projector features the VizSim Bright color wheel.
Designed for Portability - At 16.5 lb and a footprint of 13.5 x 12.1", the F50 is designed to provide the performance of an installation projector in a form factor that remains relatively portable.
RealColor Color Management - RealColor is a color management calibration suite that enables edge blending for an unlimited number of projectors, designed to ensure uniform images for multi-channel installations. It provides a quick way to calibrate and set up perfect images - allowing you to adjust them simply by changing characteristics such as color temperature. RealColor works by mathematically calculating each color independently.
Stereo 3D Support - The F50 features stereoscopic 3D support at up to 2560 x 1080 resolution (120 Hz). Active 3D glasses and synchronization device available separately.
Smear Reduction Processing (SRP) - Features flicker-free Smear Reduction Processing (SRP) so that no external filters or shutters are needed - all processing is not only done internally, it's also fully adjustable and configurable. Combined with high frame rates up to 120 Hz, this helps ensure a smear-free image at any resolution and with fast-moving content.
In the Box Barco F50 Panorama 3D Multimedia Projector (No Lens, Black Metallic) Power Cord Wireless Remote Control Limited 90-Day/500 Hours Warranty on Lamp Limited 3-Year Warranty on Projector User Manual PDF 2mbcqxzdcvfrfzcrsdcwcq Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco F50 Panorama 3D Multimedia Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9023200 Specs | | | Native Chip Resolution | 2560 x 1080 | | Supported Resolutions | 2560 x 1080 | | Max Brightness | 2000 Lumens | | Uniformity | >80% | | Aspect Ratio | Native: 21:9 | | Contrast Ratio | 5300:1 | | DLP Link 3D | Yes | | | | Inputs/Outputs | 1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) Control (Input)
1 x USB Control (Input)
2 x Composite (BNC) Control (Input)
1 x VGA (DE-15) Video (Input)
2 x DisplayPort Video (Input)
1 x DVI-D Video (Input)
1 x HDMI Video (Input)
1 x VGA (DE-15) Video (Input)
2 x 3G-SDI (BNC) Video (Input) | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 350 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 2500 Hours | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 1807 BTU | | Power Consumption | Medium Brightness: <530 W | | Temperature | Operating
50 to 104°F (10 to 40°C)
Humidity: 20 - 80%
Storage
-4 to 140°F (-20 to 60°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 13.5 x 12.0 x 6.0" / 34.3 x 30.5 x 15.2 cm | | Weight | 16.5 lb / 7.5 kg |
