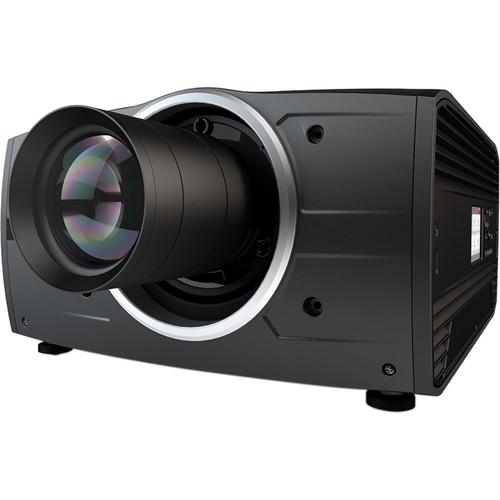

User Manual for Barco F70-W6 5500-lumen WUXGA Laser Projector Click to enlarge the picture
Contents of the user manual for the Barco F70-W6 5500-lumen WUXGA Laser Projector
- Product category: Multimedia Projectors Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Multimedia Projectors
|
User manual for the Barco F70-W6 5500-lumen WUXGA Laser Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The F70-W6 5500-lumen WUXGA Laser Projector from Barco is a single-chip DLP projector that features brightness levels of up to 5500 lumens at a WUXGA resolution. It is designed to be used with FLD or FLD+ lenses (available separately). This projector has CLO (Constant Light Output) functionality allowing it to produce constant brightness and color over a long period of time and supports a lifetime of up to 60,000 hours (depending on the mode of operation). It features IR, RS-232, and RJ45 controls and includes a power cord and a wireless remote control. - WUXGA (1920 x 1200) resolution for sharp images with vivid colors
- CLO (Constant Light Output) provides constant brightness and color over time
- Color Correction: P7 RealColor
- Embedded warp & blend engine
- CE, FCC Class A, and cNus certifications
In the Box Barco F70-W6 5500-lumen WUXGA Laser Projector (No Lens) Power Cord Wireless Remote Control Tool Set Limited 3-Year Warranty, Expandable to 5-Years Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco F70-W6 5500-lumen WUXGA Laser Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9023474 Specs | | | Display System | 1-Chip DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | 1920 x 1200 @ 60 Hz
2560 x 1600 @ 120 Hz | | Max Brightness | 5500 Lumens | | Uniformity | 90% | | Aspect Ratio | 16:10 | | Contrast Ratio | 1800:1 | | Dynamic Contrast Ratio | 50,000:1 | | DLP Link 3D | Yes | | | | Inputs/Outputs | 1 x HD-SDI (BNC) Video
2 x DisplayPort Video
2 x DVI-I Video
1 x HDBaseT (RJ45) Video
1 x HDMI Type-A Video
1 x Ethernet (RJ45) LAN
1 x XLR Control Input/Output
1 x RS-232 (DE-9) Control Input
2 x USB Type-A Control
1 x 12 V Trigger Control, Service Output | | | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Full Brightness: 60,000 Hours | | Fan Noise | Full Brightness: 36 dB | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 4000 BTU | | Power Consumption | Medium Brightness: 743 W
Full Brightness: 1100 W | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 - 80% | | Storage Humidity | 10 - 90% | | Dimensions (W x H x D) | 18.7 x 11.2 x 23.3" / 47.5 x 28.4 x 59.2 cm | | Weight | 81.5 lb / 37.0 kg |
