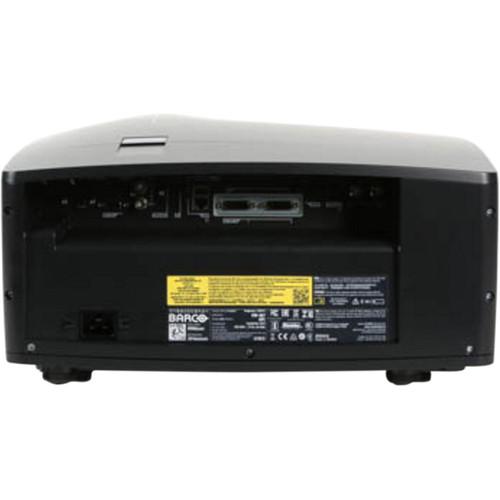

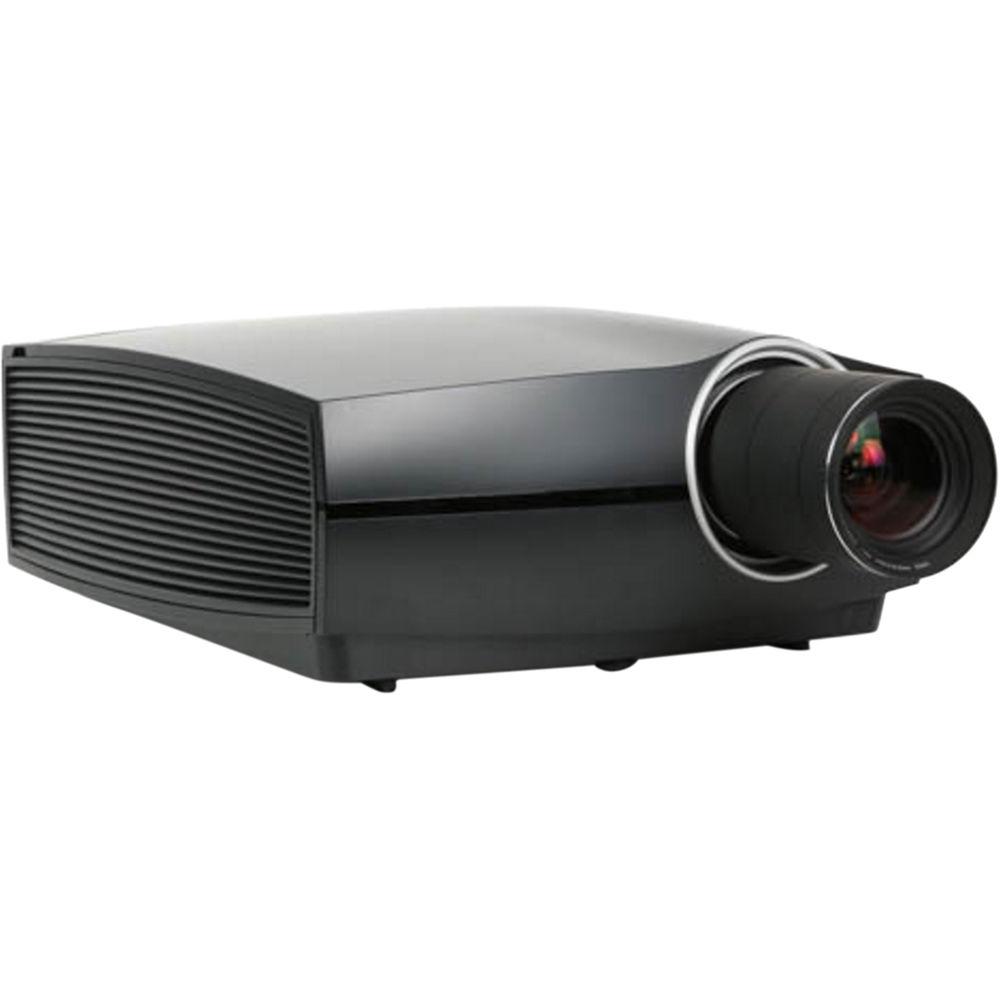

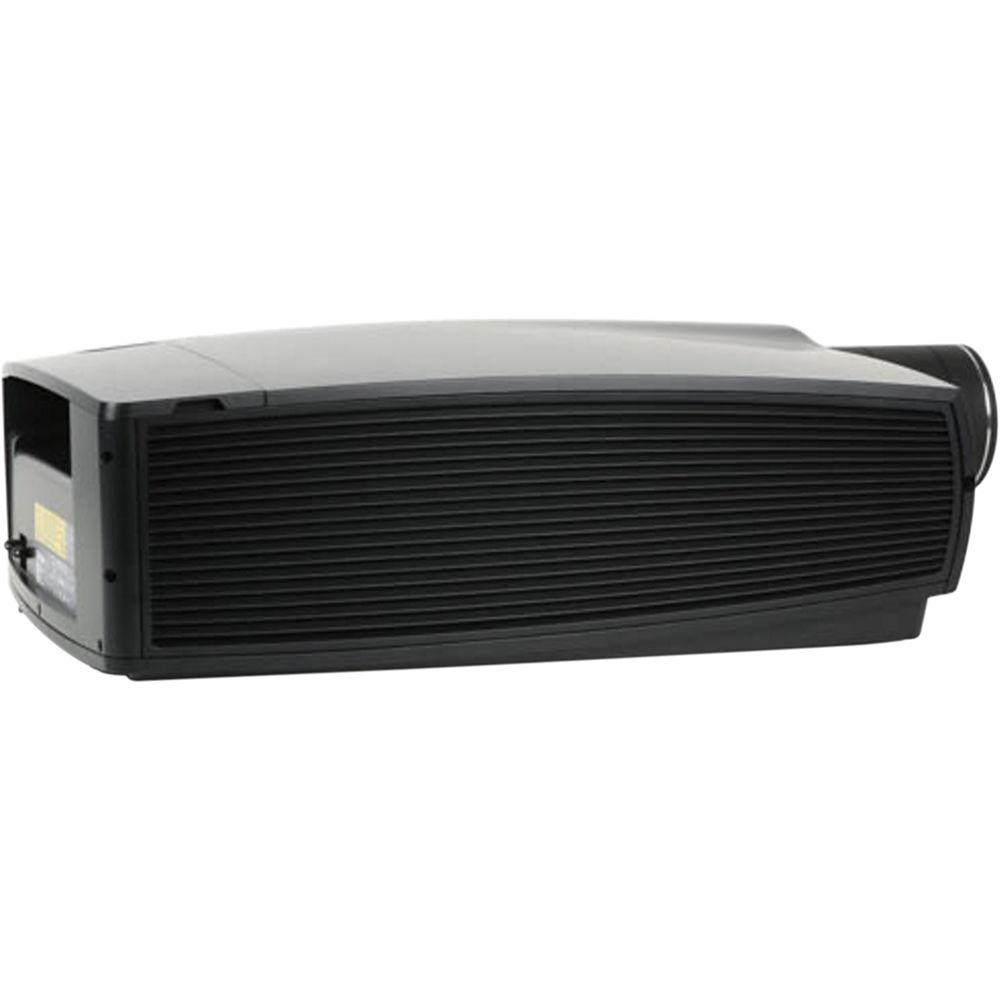

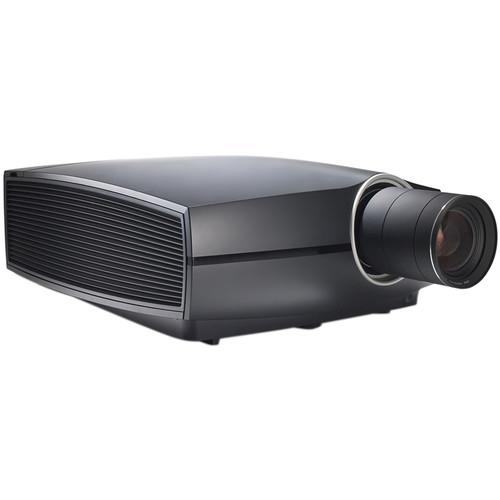

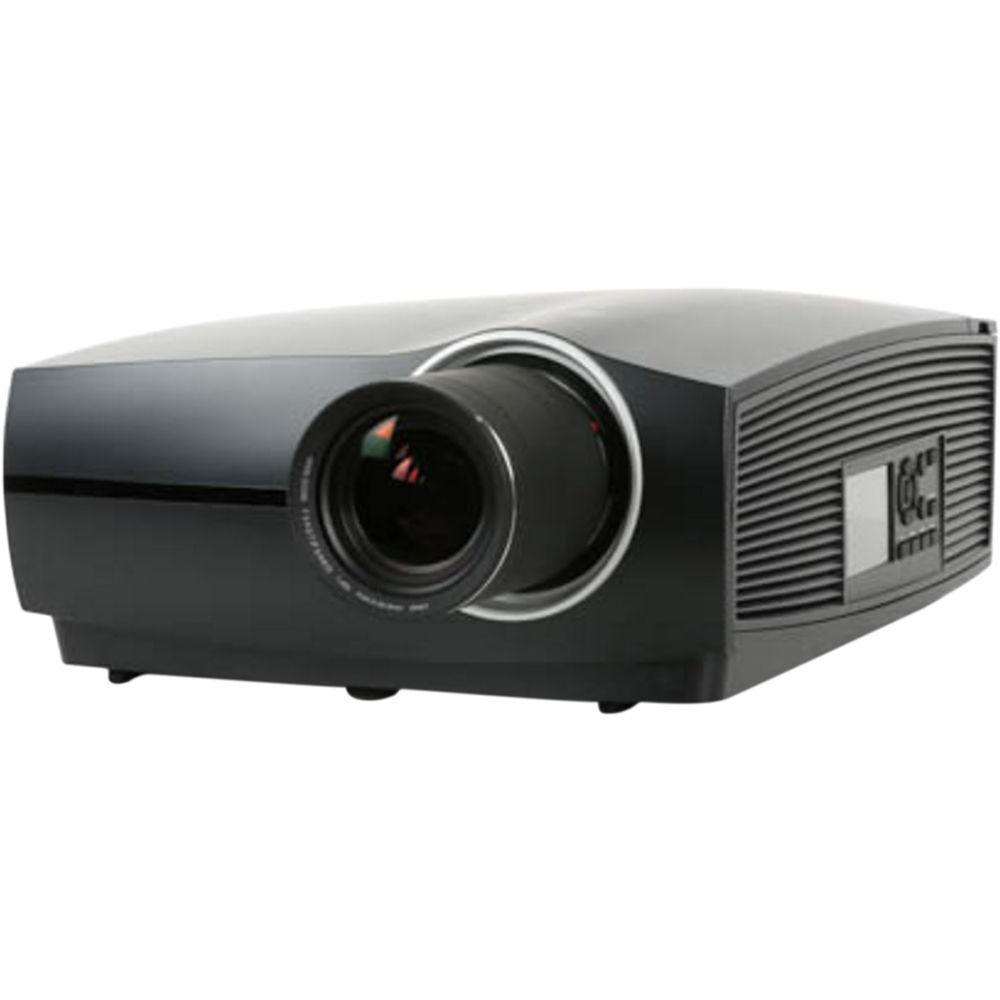

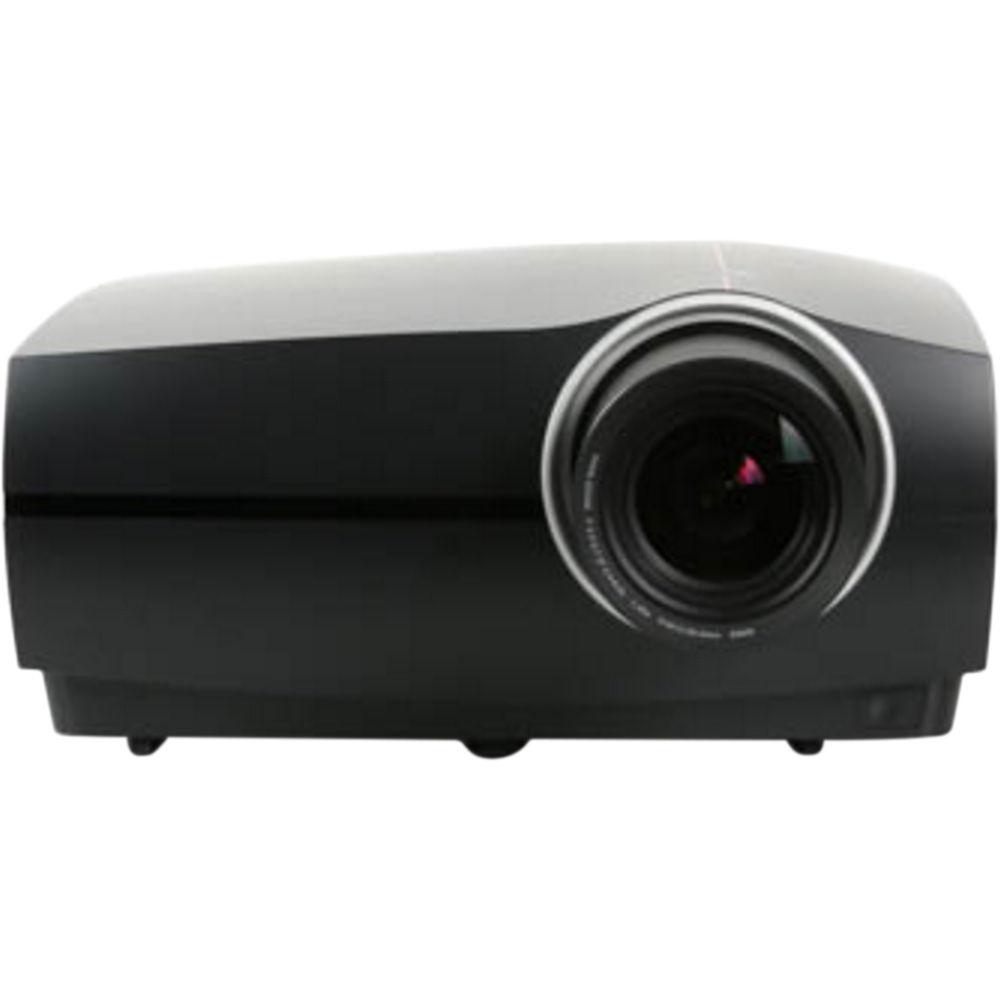

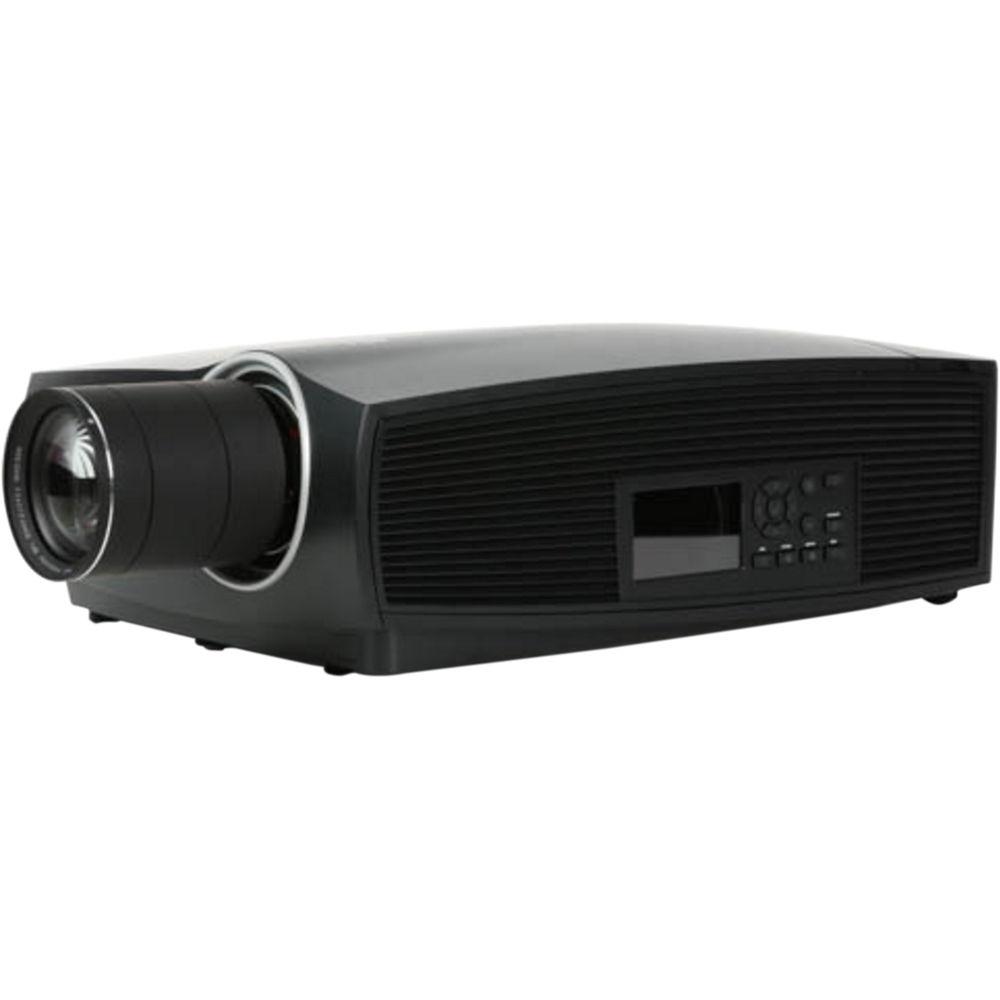

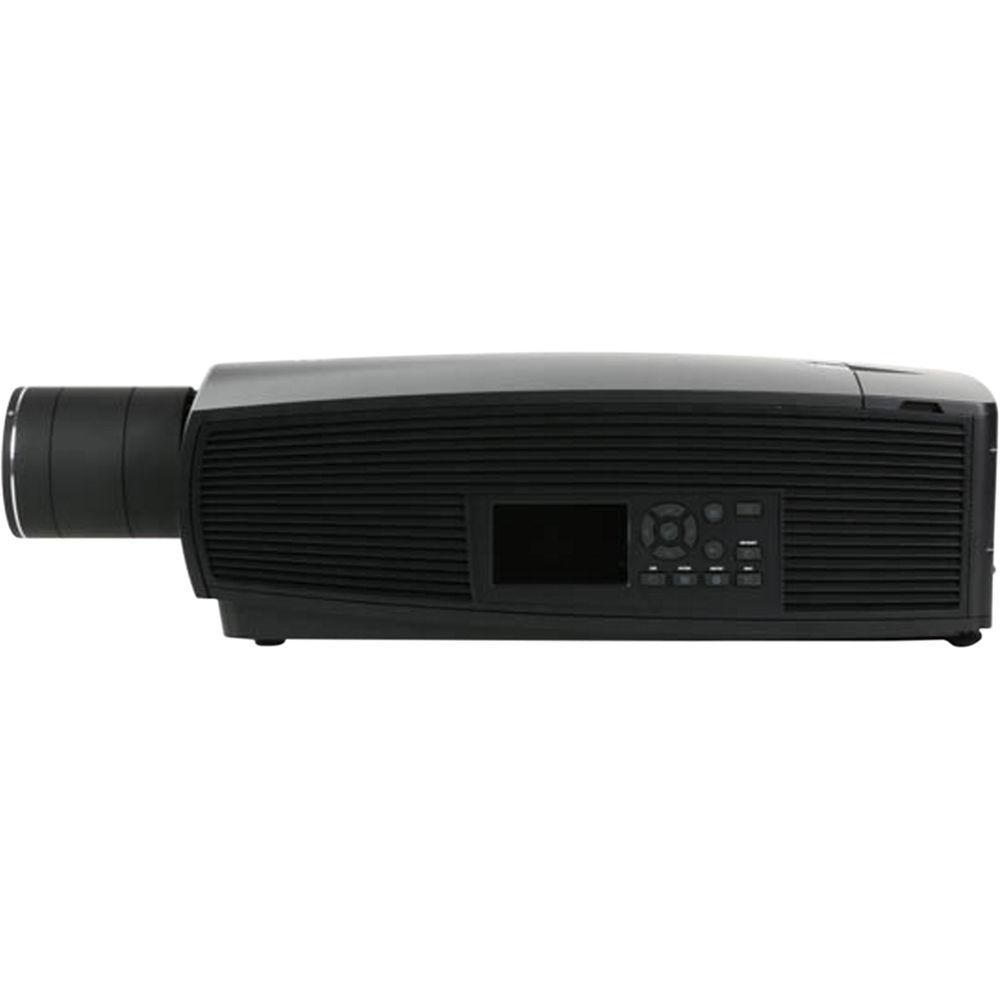

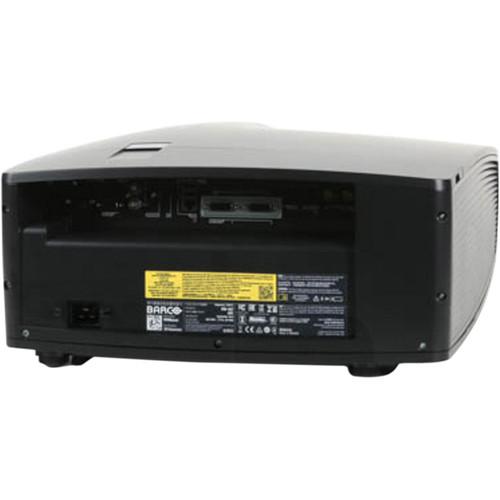

User Manual for Barco F80-4K9 9000-Lumen 4K UHD DLP Laser Projector Click to enlarge the picture
Contents of the user manual for the Barco F80-4K9 9000-Lumen 4K UHD DLP
- Product category: Multimedia Projectors Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Multimedia Projectors
 |
User manual for the Barco F80-4K9 9000-Lumen 4K UHD DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The F80-4K9 9000-Lumen 4K UHD DLP Laser Projector from Barco is a professional 3D projector adaptable to a range of applications requiring 24/7 operation. It features a brightness of up to 9000 lumens and has a native resolution of 2560 x 1600 (WQXGA). It uses interchangeable lenses to offer a variety of throw distances and zoom ranges. It has HDMI, DVI, DisplayPort, and HDBaseT video inputs for a variety of connection options. The projector is suitable for applications such as museums, board rooms, and auditoriums. - Native WQXGA (2560 x 1600) resolution for sharp images with vivid colors
- Barco Pulse processing that allows for sharper images and less latency thanks to its SSP (Single Step Processing)
- Through its laser-phosphor light source and advanced cooling design, it provides a long operating time without need for lamp changes
- Thanks to its wide array of all-glass lenses and wide lens shift ranges, the F80-4K9 accommodates almost any projector configuration
- Input resolutions 4096 x 2400 maximum
- Output resolutions 3840 x 2400 (16:10) and 3840 x 2160 (16:9)
- Optical Lens Shift: Motorized zoom, focus, vertical and horizontal shift
- Orientation: 360° rotation, no restrictions
- FCC Class A certifications
In the Box Barco F80-4K9 9000-Lumen 4K UHD DLP Laser Projector (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco F80-4K9 9000-Lumen 4K UHD DLP Laser Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco F80-4K9 Specs | | | Display System | 1-Chip 0.64" DMD DLP | | Native Chip Resolution | 2560 x 1600 (WQXGA) | | Supported Resolutions | Maximum: 4096 x 2400
Minimum: WQXGA - 2560 x 1600
DCI 4K - 4096 x 2160 | | Max Brightness | 9000 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 1200:1 | | DLP Link 3D | Yes | | Lens | None | | | | Inputs/Outputs | 1 x HDMI Video (Input)
1 x DVI Video (Input)
1 x HDBaseT (RJ45) Video (Input)
1 x DisplayPort Video (Input)
1 x SDI (BNC) Video (Input)
1 x DMX Video (Input) | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Full Brightness: 40,000 Hours | | Fan Noise | Full Brightness: 35 dB Typical at 77°F (25°C). | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 1100 W
Medium Brightness: 950 W | | Dimensions (W x H x D) | 18.9 x 8.9 x 26.7" / 48.0 x 22.6 x 67.8 cm | | Weight | 56.2 lb / 25.5 kg |
