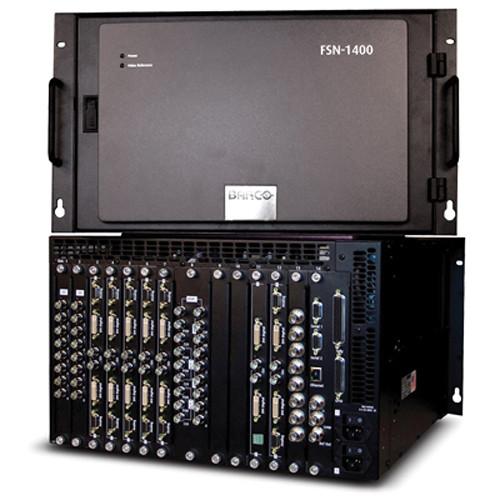

User Manual for Barco FSN-1400 Chassis for FSN Series Switcher System Click to enlarge the picture
Contents of the user manual for the Barco FSN-1400 Chassis for FSN Series
- Product category: Routers & Switchers Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Routers & Switchers
|
User manual for the Barco FSN-1400 Chassis for FSN Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description Barco's FSN-1400 Chassis for FSN Series Switcher System is the foundation of Barco's FSN series switcher and controller systems. The chassis supports and processes all the functions of the FSN-150 and 250 controllers. The chassis is modular and configurable to as many as 14 card slots. Combined, these cards can install up to 40 3G-SDI inputs, 40 3G-SDI outputs, up to 10 scalable SDI, 15-pin analog, and/or DVI inputs, and up to 6 such outputs. The 15-pin connections are HD-convertible via optional adapters from Barco's Switcher Cable Adapter Kit. The chassis comes standard with 8 M/E slots. - Key Features
- The FSN-1400 is the heart of the FSN series and has 14 card slots. These cards allow expansion to many inputs and outputs. Moreover, the 1400 has top-grade features to support the added inputs.
- Up to 40 native SDI inputs
- Up to 10 scalable SDI, 15-pin analog, DVI inputs
- Color correction for all inputs
- Up to 40 native SDI outputs
- Up to 6 universal SDI, 15-pin analog, DVI outputs
- 3G ready
- Multi-screen and widescreen support
- Less than 3 lines delay for native sources
- Four 2D-DVE Channels
- The FSN-1400 supports and processes all the functions of the FSN-150 and 250 controllers, which are also part of the FSN series. Below are the functions supported by way of two optional 2D-DVE cards, which support four 2D-DVE channels.
- PIPs with borders and shadows
- Keyframe effects with shot-box
- Flip, freeze, variable strobe and color effects
- Scalable key cut and fill
- Cropping and resizing
- Typical Full Configuration
- A typical full configuration would include the following:
- 8-channel native input card (NIC)
- Dual-channel universal input card (UIC)
- Mix/Effects (M/E) card
- Dual-channel 2D DVE card
- Dual-output 16-channel multi-viewer (MVR) card
- Dual-channel universal output card (UOC)
- 8-channel native output card (NAC)
- System (SYS) card
- Dual redundant power supply
- Hot-swappable fan tray
- Removable front door with built-in washable air filter
- Power and Video reference indicators
A mid-plane design allows the extraction of the front cards without removing the rear cable connections In the Box Barco FSN-1400 Chassis for FSN Series Switcher System 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco FSN-1400 Chassis for FSN Series Switcher System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco FSN-1400 Specs | Supported Resolutions | VGA 640 x 480 through WUXGA 1920 x 1200
HDTV 720p, 1080i, 1080p
2048 x 1080p digital cinema format
Plasma display resolutions | | Dimensions | 6RU
19 x 10.5 x 20.75" (48.2 x 26.7 x 52.7 cm) | | Weight | 58 lb (26.3 kg) |
