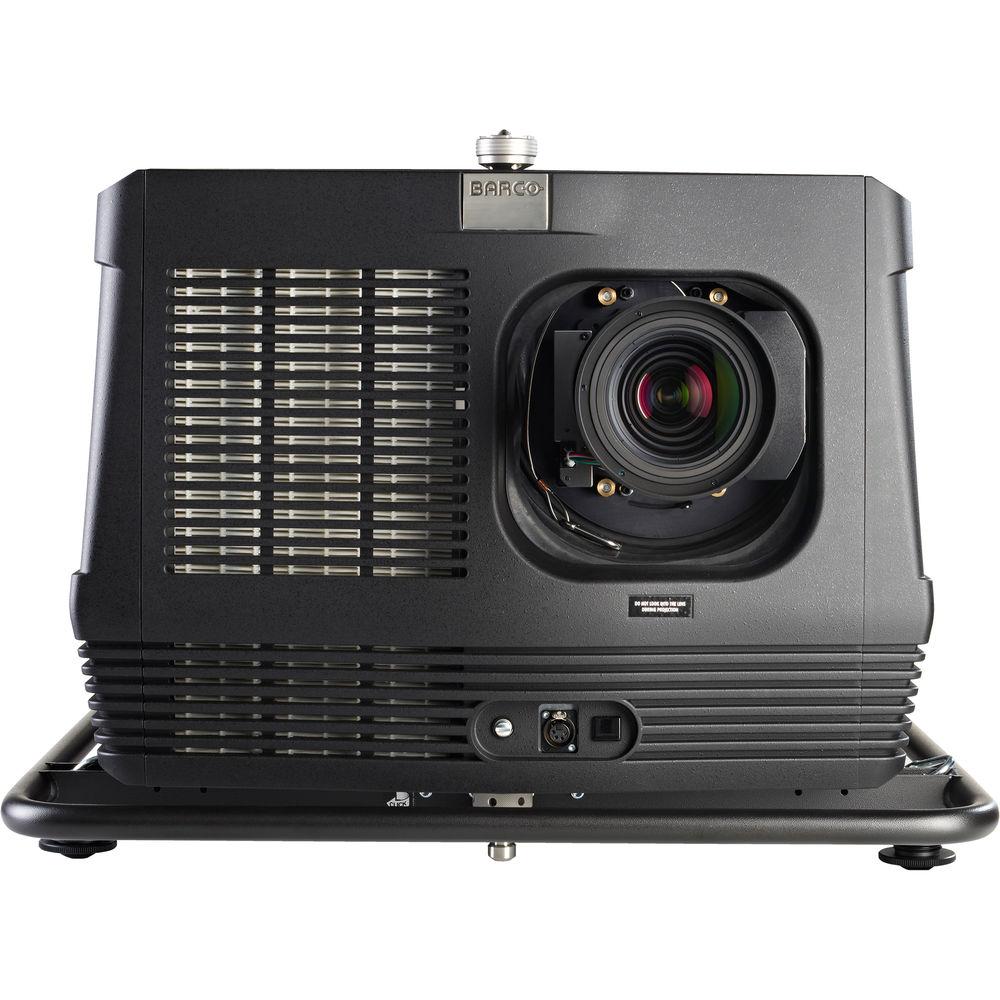

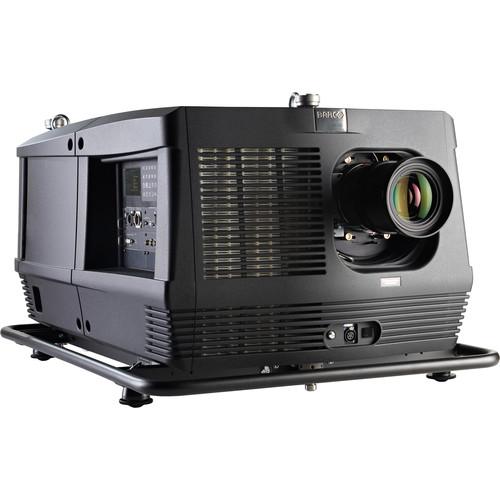

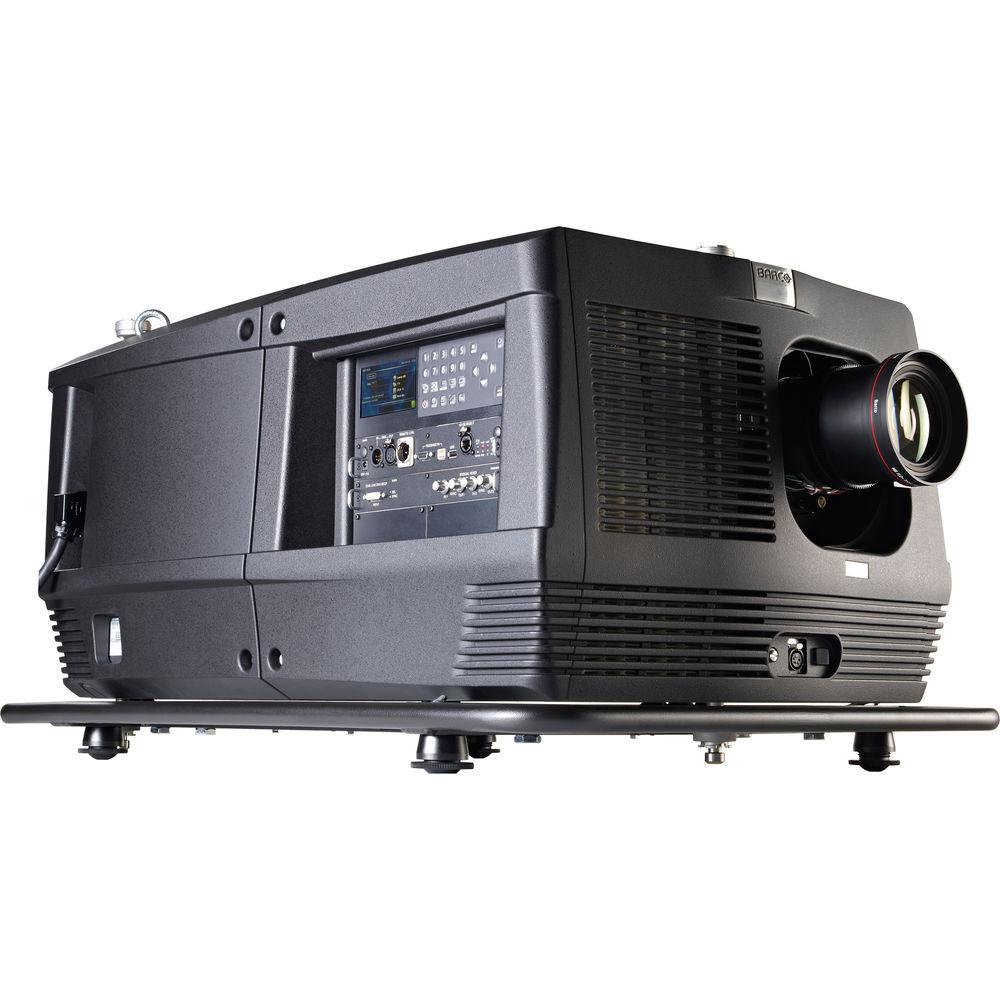

User Manual for Barco HDF-W30 FLEX 30,000 Lumens WUXGA DLP Projector with 5 TLD Zoom Lenses Click to enlarge the picture
Contents of the user manual for the Barco HDF-W30 FLEX 30,000 Lumens WUXGA
- Product category: Multimedia Projectors Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Multimedia Projectors
 |
User manual for the Barco HDF-W30 FLEX 30,000 Lumens WUXGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description Designed specifically with large venues in mind, the brightness of the Barco HDF-W30 FLEX 30,000-Lumen WUXGA DLP Projector will deliver clear images even with ambient light. It has a 1920 x 1200 native resolution and a 1900:1 contrast ratio. Its 3-chip setup and Xenon lamp are engineered to deliver the performance required for large-screen projection. The integrated FLEX brightness provides the flexibility to tune the projector to show-specific brightness - from 18,000 to 30,000 lumens in incremental steps of 2,000 lumens. It includes a wired/wireless remote control and five TLD+ zoom lenses. - High-contrast 3-chip DLP engine
- WUXGA resolution (1920 x 1200)
- ImagePRO technology inside (Athena scaler)
- Extended wireless control options
- Preview mode on LCD display
- Removable lamp house, power supply, and electronics
- Extended warping and blending
- Native 3G/HD/SD-SDI input
- BarcoLink for progressive WUXGA 60/59.94/50 Hz signal distribution over a single BNC coax cable
- Low video delay (for broadcasting live events)
- Universal lamp house for all HDF projectors
- Easy to set up, install, service, and transport thanks to modular design
- Geared with a single Xenon lamp for easy projector management, setup, and servicing
- Sealed engine designed for constant image quality over time
- TLD lens suite that is fully compatible with the Barco RLM, HDX, HDF, and FLM projector series
In the Box Barco HDF-W30 FLEX 30,000 Lumens WUXGA DLP Projector with 5 TLD+ Zoom Lenses TLD+ (1.5-2.0:1) Projector Lens traebxyfayycsybuavrcfsyfeawaxbxtzwue TLD+ (2.0-2.8:1) Projector Lens TLD+ (2.8-4.5:1) Projector Lens TLD+ (4.5 to 7:5:1 @ SXGA+ / 4.17 to 6.95:1 @ WUXGA) Projector Lens TLD+ (7.5-11.2) Projector Lens Wireless/XLR Wired Remote Control Bottom Rigging Kit with Clamps Power Cord Limited 3-Year Warranty on Projector Limited 90-Day Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco HDF-W30 FLEX 30,000 Lumens WUXGA DLP Projector with 5 TLD Zoom Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco HDF W30 Specs | | | Display System | 3-Chip 0.96" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 30,000 Lumens
28,000 Lumens 30,000 lumens center brightness; 28,000 lumens ANSI brightness | | Uniformity | <90% | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 1900:1 | | Dynamic Contrast Ratio | 2200:1 | | | | Inputs/Outputs | 1 x DVI-I Video (Input)
1 x SDI (BNC) Video (Input)
1 x HD-SDI (BNC) Video (Input)
1 x 3G-SDI (BNC) Video (Input)
1 x XLR Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x RS-422 (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) Remote (Input)
1 x USB Service
1 x DMX Control (Input)
1 x DMX Control (Output) | | | | Light Source | Lamp (1 x Xenon) | | Lamp Power | 4000 W | | Expected Lamp Life | Medium Brightness: 600 Hours | | Fan Noise | Medium Brightness: 60 dB At 77°F (25°C) | | AC Input Power | 240 VAC, 50 Hz | | Heat Dissipation | 16378 BTU | | Power Consumption | Medium Brightness: 4800 W
Standby Mode (Lamp Off): <10 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 80% | | Dimensions (W x H x D) | 27.8 x 21.5 x 40.3" / 70.6 x 54.6 x 102.4 cm | | Weight | 218.2 lb / 99.0 kg |
