User Manual for Barco HDX-W20 FLEX 20,000-Lumen WUXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Barco HDX-W20 FLEX 20,000-Lumen WUXGA DLP
- Product category: Multimedia Projectors Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Multimedia Projectors
 |
User manual for the Barco HDX-W20 FLEX 20,000-Lumen WUXGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|

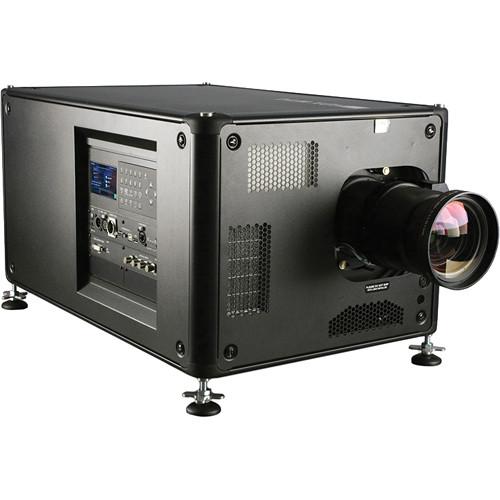

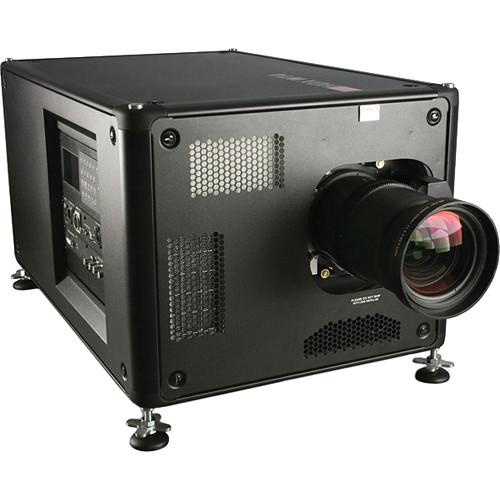

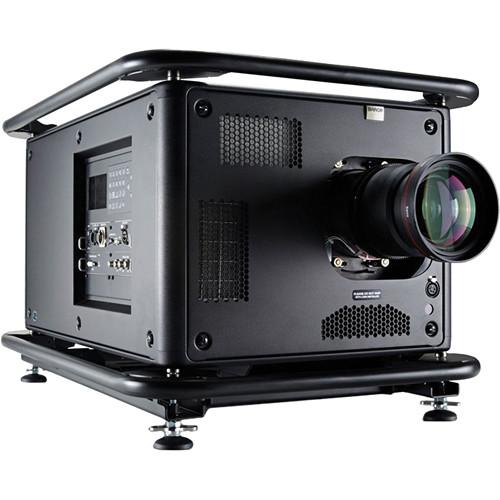

Product description Designed primarily for large venues, the Barco HDX-W20 FLEX 20,000-Lumen WUXGA DLP Projector uses interchangeable lenses to offer a variety of throw distances and image sizes. Its 20,000 lumens of brightness, combined with its 2600:1 dynamic contrast ratio, can overcome ambient light in most situations. The native 1920 x 1200 resolution will provide clear images at a wide variety of image sizes. It is compatible with BarcoLink to ease signal distribution. The projector features DVI, SDI, HD-SDI, and 3G-SDI video inputs, plus two expansion slots for additional inputs and outputs. It can be controlled via XLR, RS-232, or the included wired/IR remote control. - Choose Your Brightness
- Thanks to the light-on-demand feature, you can tune the light output of the projector to your event, programming it to output between 10,000 to 20,000 lumens, in 2000 incremental steps. Rental companies now have the flexibility to offer their customers the light output they need.
- Flexible Scaling
- With Barco's ImagePRO series with Athena scaler, the HDX-W20 offers on-board image processing for flexible scaling, boosting creativity and minimizing the time it takes to get sources on screen.
- Quick Preview and Wireless Control

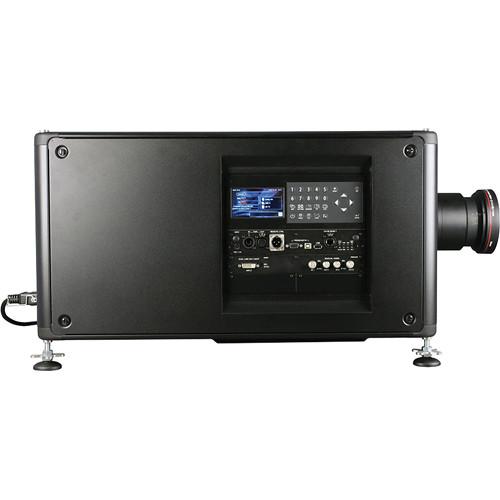

- The HDX-W20 FLEX's built-in color LCD screen provides you with information on your projector's status and allows you to preview your connected sources. Whether from one central computer, or via the Android projector control app for smartphones or tablets, you remain connected to the projector at all times.
- 3G/BarcoLink Compatibility
- The HDX-W20 FLEX has native 3G/HD/SD-SDI input, which makes it compatible with progressive HD sources over a single BNC cable. This also means that the projector allows for digital inputs that don't come through DVI fiber cables. What's more, the projector also features BarcoLink, enabling progressive WUXGA 50/59.94/60 Hz signal distribution over a single BNC coax cable.
In the Box Barco HDX-W20 FLEX 20,000-Lumen WUXGA DLP Projector (Body Only) Wireless/XLR Wired Remote Control Power Cord Limited 3-Year Warranty on Projector Limited 90-Day or 500-Hour Warranty on Lamp Brochure PDF 910.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco HDX-W20 FLEX 20,000-Lumen WUXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco HDX-W20 FLEX Specs | | | Display System | 3-Chip 0.96" DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | XGA - 1024 x 768
SXGA - 1280 x 1024
SXGA+ - 1400 x 1050
UXGA - 1600 x 1200 | | Max Brightness | 20,000 Lumens | | Uniformity | 90% | | Aspect Ratio | Native: 16:10
Supported: 4:3
Supported: 5:4 | | Contrast Ratio | 1850:1 | | Dynamic Contrast Ratio | 2600:1 | | Supported 3D Formats | Frame Packing (up to 1080p)
Side by Side
Top Bottom
Frame Sequential | | | | Lens Shift | Vertical: to 120%
Horizontal: ± 40% Horizontal shift for zoom lenses only | | | | Keystone Correction | Manual | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | None | | | | Inputs/Outputs | 1 x DVI-I Video (Input)
1 x SDI (BNC) Video (Input)
1 x HD-SDI (BNC) Video (Input)
1 x 3G-SDI (BNC) Video (Input)
1 x Proprietary Video (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x XLR Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Type-A Female (Input) | | Memory Card Slot | None | | Number of Expansion Slots | 2 | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x Xenon) | | Lamp Power | 2500 W | | Expected Lamp Life | Medium Brightness: 1000 Hours | | Fan Noise | Medium Brightness: 53 dB | | Supported Languages | Dutch
English
French
German
Japanese
Korean
Portuguese
Simplified Chinese
Spanish | | AC Input Power | 240 VAC, 50 Hz | | Heat Dissipation | 9725 BTU per hour, maximum | | Power Consumption | Medium Brightness: 2850 W
Standby Mode (Lamp Off): <8 W | | Max Operating Altitude | 9843' / 3000 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 5 - 80%
Storage
5 to 140°F (-15 to 60°C)
Humidity: 5 - 95% | | Dimensions (W x H x D) | 18.7 x 15.0 x 28.5" / 47.5 x 38.1 x 72.4 cm | | Weight | 110.0 lb / 49.9 kg |
