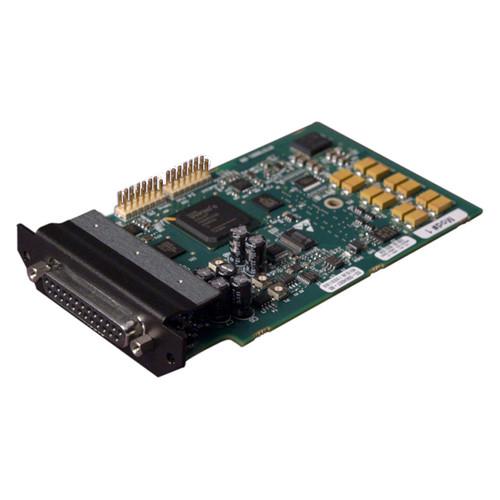

Product description The ImagePro-II Audio Module Upgrade Kit from Barco is an audio mezzanine board that gives you access to embedded audio from the video input signals with your Barco ImagePro-II series converter/switcher. The mezzanine board features a DB-25 connector, providing an I/O interface for four analog and eight AES digital channels. You can select and use the embedded audio from the video input source signal, or from the analog or AES digital signal from the DB-25 connector. The de-embedded HDMI, DisplayPort, and SDI input audio signals can also be selected to appear on the discrete analog or digital AES outputs.
Note: The ImagePRO-II Audio Breakout Cable is required to access the analog and digital AES signals from the DB-25 connector. The breakout cable provides four XLR connectors for analog audio in/out, and eight BNC connectors for Digital AES in/out. In the Box Barco ImagePro-II Audio Module Upgrade Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco ImagePro-II Audio Module Upgrade Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9004667 Specs | Compatibility | Barco ImagePRO-II Series Converters/Switchers | | Format | LPCM
No compressed audio | | Supported Channels/Tracks | SDI, HDMI, and DisplayPort: 8 channels @ 48/96 KHz sampling | | Bit Depth | HDMI and DisplayPort: 16/20/24 bits
SDI: 20/24 bits | | Analog Audio | With breakout cable (sold separately):
2 channels of balanced audio inputs, each on 3 pins
Frequency response: +-0.5dB, 20Hz to 20KHz
Signal-to-Noise Ratio: 90dB
THD + noise: -70dB @ -1dBFS
CMR: 75dB @ 60Hz
Crosstalk: -90dB @ 1KHz
Input impedance: 10K | | Digital Audio | With breakout cable (sold separately):
AES3
4 pair of AES/EBU digital audio inputs, each pair on 2 pins, groups of 2 pair
Connector: 75 ohms
Unbalanced inputs
Bit depth: 20/24 bits | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 25.8 x 24.8 x 8.5" |
