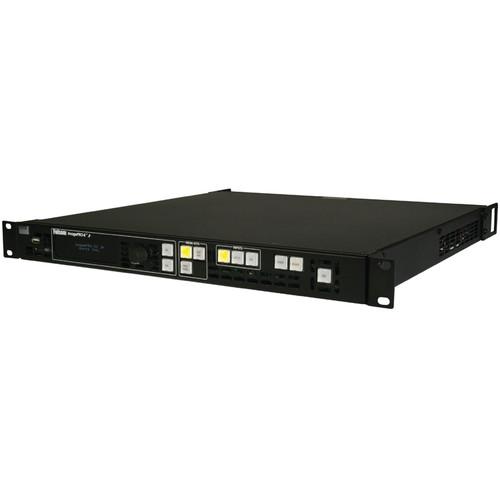

User Manual for Barco ImagePRO-II Jr. All-in-One Video Scaler, Scan Converter, and Switcher Click to enlarge the picture
Contents of the user manual for the Barco ImagePRO-II Jr. All-in-One Video Scaler,
- Product category: Signal Converters Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Signal Converters
|
User manual for the Barco ImagePRO-II Jr. All-in-One Video Scaler, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The Barco ImagePRO-II Jr. is an advanced high performance all-in-one video scaler, scan converter, switcher and transcoder converting any input signal format to any output format. ImagePRO-II supports Universal Analog, DVI single and dual link, HDMI, DisplayPort and SD/HD/3G SDI signal formats. Loop-through outputs are provided for the Analog, DVI and SDI input and genlock signals. The ImagePRO-II also features HDCP and EDID management, USB back up and restore, multiple video effects and a web page interface. Note: The Jr. model has the same functionality as the standard ImagePRO-II other than it cannot accept Dual-Link DVI signals and is not compatible with the Barco ImagePRO upgrade cards. In the Box Barco ImagePRO-II Jr. All-in-One Video Scaler, Scan Converter, and Switcher Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco ImagePRO-II Jr. All-in-One Video Scaler, Scan Converter, and Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9004695 Specs | | | DVI | 1 x DVI-I
Digital Formats: all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 Specification
Analog Formats: NTSC/PAL composite and Y/C video, SD YPbPR with bi-level sync, HD YPbPr with tri-level sync, RGBHV/RGBS/RGsB computer video with bi-level sync
Analog Sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to 1920x1200p, 2048x1080p
Active loop-through output of all input signals, including HDCP and EDID
EDID version 1.3 compatible HDCP version 1.4 compatible | | VGA | 1 x HD-15 VGA port
Formats: NTSC/PAL composite and Y/C video SD YPbPr with bi-level sync HD YPbPr with tri-level sync per SMPTE 274, RGBHV/RGBS/RGsB computer video with bi-level sync
Sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to: 1920x1200p, 2048x1080p
Active loop-through output of all input signals
EDID version 1.3 compatible | | SDI | 1 x BNC port
Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424
Re-clocked loop-through output | | | | SDI | Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424 | | DVI | Formats: all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 specification
EDID version 1.3 compatible
HDCP version 1.4 compatible | | VGA | Formats: NTSC/PAL composite on green, NTSC/PAL Y/C video with bi-level sync on Y only, (Y: Green, C: Red); SD YPbPr with bi-level sync; HD YPbPR with tri-level sync per SMPTE 274; RGBHV/RGBS/RGsB computer video with bi-level sync
EDID version 1.3 compatible | | | | Genlock | Analog Ref Input/Loop/Output on BNC connectors; Bi-level and Blackburst at SD and Tri-level at HD or locked to any input | | Remote Control | USB 1.1
Ethernet RJ-45, 10/100 Mbps Autosense
Computer, tablet, smartphone, or external Encore or ScreenPRO-II Controller via Ethernet link
Control functions include: source input configuration, output format selection, test pattern selection, transition effect selection and control | | Input Power | 100-240 VAC, 47-63 Hz, auto-selecting 2.0A maximum | | Environmental | 32 to 104°F / 0 to 40°C
0 to 95% humidity, noncondensing | | Dimensions | 1.75 x 17 x 18.5" / 4.4 x 43.2 x 47 cm | | Weight | 15.75 lb / 7.1 kg | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 25.75 x 25.5 x 6.75" |
