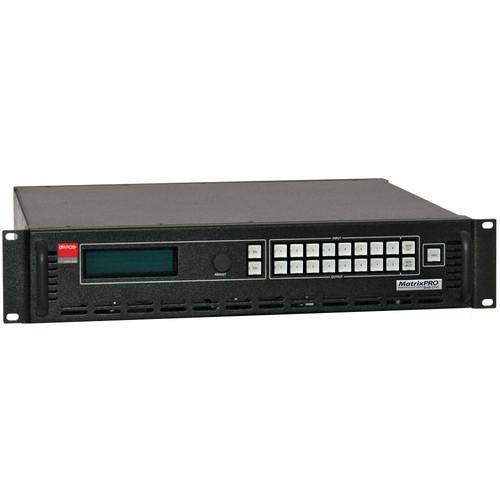

Product description The MatrixPRO 8x8 DVI Video Matrix Router from Barco is a router designed to manage DVI signals. The unit will accept DVI inputs up to 2048 x 1080. It features (8) inputs and (8) outputs. Each input is re-clocked as it passes through the router, which helps to maintain DVI signal strength. Each output channel can also display an internally generated test pattern and test patterns are available with or without any valid input signals.
The unit can be controlled via its front-panel interface or via Ethernet IP or RS-232 connectivity. A number of separately available control and remote-control panels are also available. The front-panel menu includes a VFD display and a knob to facilitate navigation and management. This switcher is housed in a rackmount chassis. - DVI Switcher
- This switcher is designed to manage DVI routing.
- Controls
- The unit can be controlled via its front-panel interface, Ethernet IP, RS-232, or a number of optional control units.
- Test Patterns
- Test patterns are available with or without any valid input signals.
- Rack Ready
- This switcher is housed in a rackmount chassis.
In the Box Barco MatrixPRO 8x8 DVI Video Matrix Router Switcher Three-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco MatrixPRO 8x8 DVI Video Matrix Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9860490 Specs | Construction | Metal | | Finish | Black, gray | | Inputs | Input:
(8) DVI-I connectors (supporting single digital video link) per DVI 1.0 specification
Input Resolution:
640 X 480 to 2048x1080 including HDTV (25 to 165Mhz pixel clock) | | Outputs | Output:
(8) DVI-I connectors (supporting single digital video link) per DVI 1.0 specification
Output Resolution:
640 X 480 to 2048x1080 including HDTV (25 to 165Mhz pixel clock) | | Control | Ethernet:
1 RJ-45 (F) connector, running 10/100 Base-T, half/full duplex w/ auto-detect
Ethernet Protocol: ICMP (ping), TCP/IP, Telnet
Serial Control Ports: RS-232, 9-pin female D connector
Baud Rate and Protocol: 115K Baud (max), 8-bit, 1 stop, no parity selectable | | Power | 100 to 240VAC, 50/60Hz, auto-selecting 1.0A maximum | | Dimensions (HxWxD) | 3.5 x 17 x 16" (4.5 x 43.2 x 40.6cm)
2U rack height, full rack width | | Weight | 17.5 lbs (7.92 kg) | | | | Package Weight | 24.15 lb | | Box Dimensions (LxWxH) | 22.7 x 22.6 x 7.1" |
