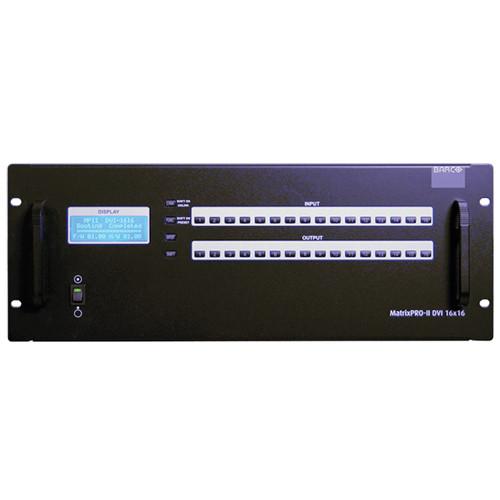

User Manual for Barco MatrixPRO-II 16x16 DVI Router Click to enlarge the picture
Contents of the user manual for the Barco MatrixPRO-II 16x16 DVI Router
- Product category: Routers & Switchers Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Routers & Switchers
|
User manual for the Barco MatrixPRO-II 16x16 DVI Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The MatrixPRO-II 16x16 DVI Router from Barco is an HDCP compliant video signal matrix router that can switch any of the 16 DVI inputs to any or all of the 16 outputs. Any input source, such as a DVD player, Blu-ray player, or a computer with high-resolution graphics, can be routed to a DVI or HDMI (via an optional adapter) output digital display.
The router accepts input resolutions from 480p up to 2048x1080 and 1920x1200. Each input is re-clocked as it passes through the router to maintain the DVI signal strength. Each channel can be programmed with unique EDID information based on the system requirements. In addition to the 16 outputs, the router features a monitoring output to which any input can be routed to and allows you to monitor and verify the input signal before it is switched to the output.
An integrated test pattern generator lets you diagnose and fix issues that may arise during installation. The test pattern is available with or without any valid input signals. The router can be controlled in a variety of ways, including the front panel, Encore and ScreenPro-II controllers via Ethernet for easy integration into the Barco Encore family of products, the integrated web page server, or the GUI program running on a Windows PC.
The router comes included with an auto ranging power supply. For enhanced reliability, an optional redundant power supply is also available. The additional power supply shares the load during operation, extending the lifetime of your power supplies. - Main Features
-
- Fast switching
- Signal re-clocking
- HDCP 1.0 support
- Programmable EDID support
- Monitor output
- All progressive resolutions from 480p up to WUXGA/HD
- Built-in test pattern
- LED indicators for valid input video and output device sense (HPD)
- Control from Encore and ScreenPro-II controllers
- Auto ranging power supply
- Optional redundant power supply
- 4RU height
In the Box Barco MatrixPRO-II 16x16 DVI Router Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco MatrixPRO-II 16x16 DVI Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9004691 Specs | Input & Output | 16 x DVI input
16 x DVI output
All single-link DVI digital formats up to 165 MHz, per DVI 1.0 specification | | EDID | 1.3 compatible | | HDCP | 1.0 compatible | | Control | Ethernet RJ-45, 10/100 Mbps autosense
Computer, tablet, smartphone, or Encore or ScreenPRO-II controller via Ethernet link
Command line control via Telnet or RS-232 serial | | Input Power | 100 to 240 VAC, 47 to 63 Hz, auto-selecting 2.0A maximum | | Temperature | 32 to 104&def;F (0 to 40°C) | | Humidity (Non-condensing) | 0 to 95% | | Rack Mountable | 4 RU | | Dimensions | 17.3 x 15.0 x 7.0" (44.0 x 38.0 x 17.8 cm) | | Weight | 24 lb (11 kg) |
