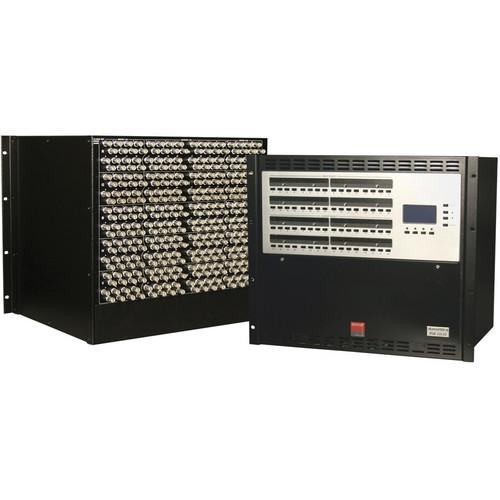

User Manual for Barco MatrixPRO-II 32x32 Switcher with 3G SDI Click to enlarge the picture
Contents of the user manual for the Barco MatrixPRO-II 32x32 Switcher with 3G
- Product category: Routers & Switchers Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Routers & Switchers
|
User manual for the Barco MatrixPRO-II 32x32 Switcher with 3G contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The Barco MatrixPRO-II 32x32 Switcher with 3G SDI combines a high 600MHz bandwidth with a flat +/-1.0dB to 300MHz frequency to deliver image switching and signal distribution without any artifacts.
A genlock input synchronizes all switching with the house sync. A user-selectable RGB delay mode locks down-stream equipment to a new signal before anything is visible on the screen. And presets are available to be stored and allow easy system reconfiguration. I/O grouping and split-mode switching features divide the matrix into smaller sub-switchers and let each color channel switch independently.
Control can be by front panel buttons, by RS232, or via Ethernet connections. The switcher also fully integrates with Barco's Encore and ScreenPRO-II presentation systems and can be controlled through them. - 32x32 Wideband Matrix Switcher
-
- Delivers switching and distribution without any artifacts
- A genlock input synchronizes all switching with the house sync
- Selectable RGB delay locks down-stream equipment to a new signal
- Presets are available to be stored and facilitate easy system reconfiguration
- I/O grouping and split-mode create sub-switchers and let each color channel switch independently
In the Box Barco MatrixPRO-II 32x32 Switcher with 3G SDI 3-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco MatrixPRO-II 32x32 Switcher with 3G SDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9004662 Specs | Supported Formats | DVB-ASI, SMPTE 259M, SMPTE 292M, SMPTE 424M; 270M bps - 2.97Gbps; 2K, 2048x1556/23.98 and 24 | | | | Standard | SMPTE 259M / SMPTE 292M / SMPTE 424M | | Data Rate | 270Mbps - 1.485Gbps / 2.97Gbps | | Connector | 75 ohm BNC female | | Impedance | 75 ohm nominal | | Return Loss | > 15dB (5MHz - 1.485GHz); > 10dB (1.5 - 3GHz) | | Cable Equalization | Automatic up to 230' (70m) @ 2.97Gbps, typical Belden 1694A
Automatic up to 328' (100m) @ 1.485Gbps, typical Belden 1694A
Automatic up to 984' (300m) @ 270Mbps, typical Belden 8281 | | | | Connector | 75 ohm BNC female | | Impedance | 75 ohm nominal | | Return Loss | > 15dB (5MHz - 1.485GHz); > 10dB (1.5 - 3GHz) | | Signal Level | 800mVp-p ±10% | | Rise & Fall | - 20 - 80%
- SD limit: 0.4 - 1.5ns, < 0.5ns rise/fall variation
- HD limit: < 270ps, < 100ps rise/fall variation
- 3G-HD limit: < 135ps, < 50ps rise/fall variation | | Amplitude Overshoot | < 10% | | Signal Polarity | Non-inverting electrical with respect to inputs | | | | Power | 35W | | Signal Speed | Timing jitter: SD: < 0.2 UI; 3G-HD/HD: < 1UI
Alignment jitter: SD: < 0.2UI; 3G-HD/HD: < 0.2UI | | Safety Regulations | Compliant with CE EN55103-1 and 2 | | Control | Serial port: RS-232, DB9 connector female
Ethernet port: 10/100BaseT Ethernet bus, 1x RJ45 connector | | Rack Mount | 2RU | | Dimensions | 3.5 x 19 x 2" (8.8 x 48.3 x 5 cm) | | Weight | 4.8 lbs (2.2 kg) |
