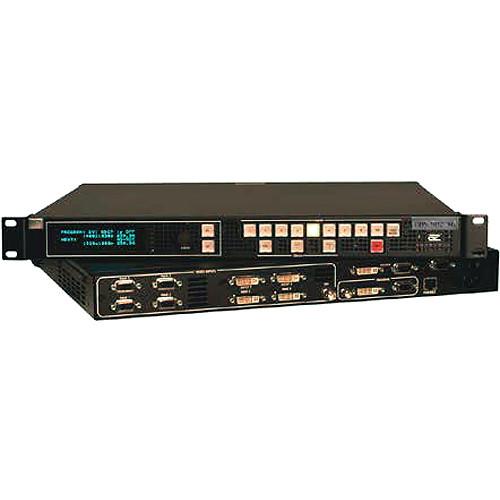

User Manual for Barco PDS-901 3G-SDI Digital Switcher Click to enlarge the picture
Contents of the user manual for the Barco PDS-901 3G-SDI Digital Switcher
- Product category: Routers & Switchers Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Routers & Switchers
|
User manual for the Barco PDS-901 3G-SDI Digital Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The Barco PDS-901 3G-SDI Digital Switcher features four DVI-I inputs with full HDCP support, one 3G/HD/SD-SDI input, and four analog VGA inputs. All analog and DVI inputs support the EDID 1.3 specification. Users can capture and store up to 3 images that can be used as a logo source during a presentation. Additionally, built-in test patterns are also provided.
The PDS-901 switcher provides simultaneous program output via the DVI and analog VGA connectors. It includes a 3G/HD/SD-SDI output supporting BarcoLink for easy connection to Barco projectors (sold separately). Thanks to its straightforward setup and operation, the PDS-901 3G Switcher is well suited for live events, boardrooms, hotel ballrooms, houses of worship, education and training facilities, and fixed installations. - Processing
-
- Fast source acquisition
- Fast and seamless switching
- Auxiliary control from Encore and ScreenPRO-II controllers
- Up to 3 Logo stores / recall capability
- Low video delay
- Software download via USB
- Inputs
-
- All resolutions from NTSC / PAL up to WUXGA including all HD resolutions
- EDID support for analog and DVI sources
- DVI-I, analog, 3G/HD/SD-SDI, and BarcoLink
- HDCP 1.0 support for all DVI sources
- Program Outputs
-
- All progressive resolutions from 480p up to WUXGA / HD
- DVI-I and analog VGA program output
- 3G/HD/SD-SDI program output with BarcoLink support
- Full screen outputs and PIPs
- Dual PIP mode
- 9 x 2 Matrix mode
- Zoom and stretch fit modes
- Supports HDCP compliant displays
- Built-in test patterns
- General
-
- Auto-ranging power supply
- Slim 1 RU height
In the Box Barco PDS-901 3G-SDI Digital Switcher Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco PDS-901 3G-SDI Digital Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco PDS-901 Specs | | | DVI-I Input | 4 x DVI-I Digital Formats:
All single-link DVI digital formats up to 165 MHz, per DVI 1.0 specification
Analog Formats:
NTSC / PAL composite and Y / C video
SD YPbPR with bi-level sync
HD YPbPr with tri-level sync
RGBHV / RGBS / RGsB computer video with bi-level sync
Analog 1:1 Sampling up to 1920 x 1080 at 60 Hz.
Sources with native pixel rates greater than 150 MHz will be filtered and sampled at 150 MHz. These include but not limited to 1920 x 1080p @ 60 (173.0 MHz), 1920 x 1200 @ 60 (193.25 MHz), and 2048 x 1080p @ 60 (183.75 MHz)
EDID version 1.3 compatible
HDCP version 1.0 compatible | | VGA | 4 x HD-15 connector
Format:
NTSC / PAL composite with Y / C video
SD YPbPr with bi-level sync
HD YPbPr with tri-level sync per SMPTE 274
RGBHV / RGBS / RGsB computer video with bi-level sync
Analog 1:1 sampling up to 1920 x 1080 @ 60 Hz. Sources with native pixel rates greater than 150 MHz will be filtered and sampled at 150 Mhz. These include but not limited to 1920 x 1080p @ 60 (173.0 MHz), 1920 x 1200 @ 60 (193.25 MHz), and 2048 x 1080p @ 60 (183.75 MHz)
EDID version 1.3 compatible | | 3G/HD/SD-SDI | 1 x BNC connector
Formats:
SD-SDI per SMPTE 259M-C (NTSC / PAL resolution)
HD-SDI per SMPTE 292M, 296M
3G-SDI per SMTE 424M
BarcoLink | | | | DVI-I Output | Formats:
All single-link DVI digital formats up to 165 MHz, per DVI 1.0 specification
EDID version 1.3 compatible & HDCP version 1.0 compatible | | VGA | Formats:
HD YPbPr with tri-level sync per SMPTE 274
RGBHV / RGBS / RGsB computer video with bi-level sync
EDID version 1.3 compatible | | 3G/HD/SD-SDI | 1 x BNC connector
Formats:
SD-SDI per SMPTE 259M-C (NTSC / PAL resolution)
HD-SDI per SMPTE 292M, 296M
3G-SDI per SMPTE 424M
BarcoLink | | | | Control | 1 x Ethernet RJ-45, 10/100 Mbps auto-sense
Computer, tablet, smartphone, or Encore or ScreenPRO-II controller via Ethernet link | | Input Power | 100 to 240 VAC, 47 to 63 Hz, auto-selecting 2.0 A maximum | | Humidity | 0 to 95% non-condensing | | Temperature | 32 to 104°F (0 to 40°C) | | Rackmountable | 1 RU height | | Dimensions (W x D x H) | Without chassis handles: 17.00 x 14.25 x 1.75" (43.18 x 36.20 x 4.45 cm)
With chassis handles attached: 19.06 x 14.25 x 1.75" (48.41 x 36.20 x 4.45 cm) | | Weight | 12.5 lb (5.7 kg) | | | | Package Weight | 17.05 lb | | Box Dimensions (LxWxH) | 22.9 x 22.6 x 7.1" |
