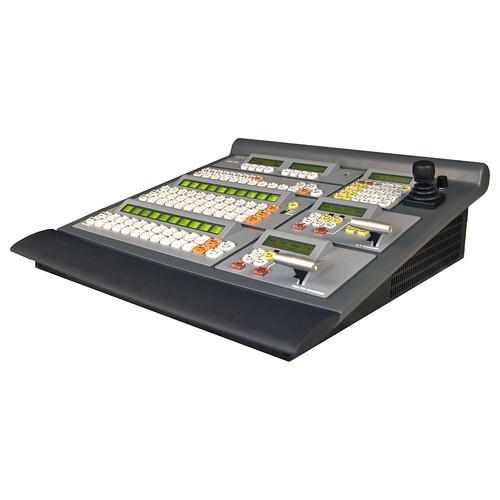

User Manual for Barco R9004623 FSN-150 Controller Click to enlarge the picture
Contents of the user manual for the Barco R9004623 FSN-150 Controller
- Product category: Switcher Accessories Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Switcher Accessories
|
User manual for the Barco R9004623 FSN-150 Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The Barco R9004623 FSN-150 Controller is the "hands on" portion of the FSN switcher system. This controller provides 1.5 Mix and Effect buses along with supporting the processor's specific input configuration. It offers easy to read back-lit buttons, LED displays and smooth t-bar controls. - Custom Control Section
- Buttons can be programmed to perform functions such as GPO triggers, macros, freeze, menu access and more. The FSN-150 includes eight custom buttons
- USB
- Enables users to backup, restore and update system code.
- Memory Section
- Enables users to store and recall complete or partial switcher setups using 1000 memory registers. This advanced memory system includes high-end features such as enables/disables.
- Aux Section
- Assigns sources to native or (optional) scaled Aux bus outputs. Buttons are provided for 16 Aux outputs. Additional Aux outputs are switched on the GUI.
- M/E Transition Section
- Provides controls for creating cuts, mixes, wipes, keys, and triggering DVE moves. The LCD display indicates key sources, the transition rate and the active memory register.
- LCD Displays
- Programmable hi-resolution LCD displays show all source names. All displays are angled for easy viewing.
- Instant Transitions
- This section provides instant CUT or MIX functions for both keyers, regardless of T-Bar position.
- M/E Banks
- Each M/E includes Background (BG), Preset (PST), and Key buses. Buttons can be assigned to inputs, color backgrounds, stills and test patterns. A dedicated BLACK button is provided
- PGM/PST Bank
- The PGM/PST bank includes PGM and PST buses plus a phantom key bus. Programmable hi-resolution LCD displays are also included. All buses operate in "fl ip-fl op" mode.
- PGM/PST Transition Section
- Provides controls for creating cuts, mixes, wipes, a downstream key (DSK) and a fade to black (FTB). The LCD display indicates the DSK source, transition rates for DSK and FTB, and the active memory register.
In the Box Barco R9004623 FSN-150 Controller Controller Manual 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco R9004623 FSN-150 Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco FSN-150 Specs | Interface | Ethernet to FSN-1400, 10/100Base-T, on an RJ-45 connector | | Dimensions (WxHxD) | 22 x 7 x 24"
55.9 x 17.8 x 61cm | | Weight | 26 lbs
12kg |
