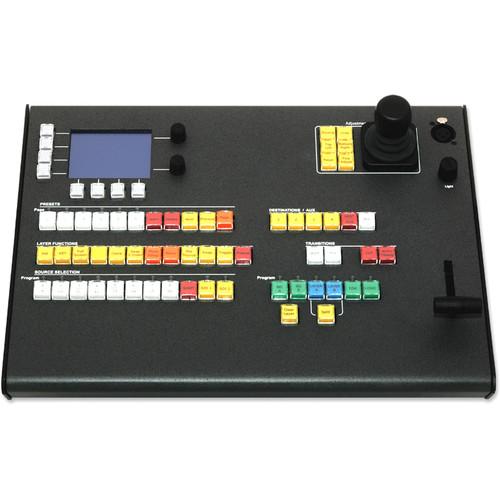

User Manual for Barco ScreenPRO II Controller with Tally PS2 Card Click to enlarge the picture
Contents of the user manual for the Barco ScreenPRO II Controller with Tally
- Product category: Switcher Accessories Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Switcher Accessories
|
User manual for the Barco ScreenPRO II Controller with Tally contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The ScreenPRO II Controller with Tally/PS2 Card from Barco is a controller designed to give you more control over your event management and other professional work when using the ScreenPRO II Seamless Switcher. This controller enhances PIP and key placement, source switching, and layer control, among other functions. It is equally well suited for multi-screen and single-screen events.
This unit will accept up to (16) inputs and (4) AUX outputs. Inputs can include any mixture of RGBHV analog, SD/HD-SDI, and DVI from both external routers and the built-in routers of the ScreenPRO II switcher. External router control may be managed via Ethernet or RS-232.
This unit may be backed up with a removable media card. This model includes a tally and PS/2 card that will support up to (8) tally lights and (1) keyboard. A 3-13/16" LCD display with (8) buttons and (2) knobs facilitates the setup and management of this controller. - Controller for ScreenPRO II Seamless Switcher
- This controller is designed to give you more control over your event management and other professional work when using the ScreenPRO II Seamless Switcher.
- Multi-Function Device
- This controller enhances PIP and key placement, source switching, and layer control, among other functions, and is equally well suited for multi-screen and single-screen events.
- Multi-Format External or Internal Routing
- Inputs can include any mixture of RGBHV analog, SD/HD-SDI, and DVI from both external routers and the built-in routers of the ScreenPRO II switcher.
- Backup
- This unit may be backed up with a removable media card.
- LCD
- A 3-13/16" LCD display with (8) buttons and (2) knobs facilitates the setup and management of this controller.
- Tally/PS2 Card
- This model includes a tally and PS/2 card that will support up to (8) tally lights and (1) keyboard
In the Box Barco ScreenPRO II Controller with Tally/PS2 Card Controller Three-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco ScreenPRO II Controller with Tally PS2 Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9860206 Specs | Input | x16 RGBHV analog, SD/HD-SDI, DVI | | Output | x4 AUX | | Controls | Display: 3.8” LCD Touch Screen
Joystick: 3-Axis (X,Y and Z)
T-Bar: Analog T-Bar with smooth movement
Presets: 36 (6 pages of 6 Presets)
Destinations: 8 Total Destinations (4 ScreenPRO II and 4 AUX) | | Connectivity | Ethernet: 1 RJ-45 (F) connector, running 10/100 Base-T, half/full duplex w/ auto detect
Ethernet Protocol: ICMP (ping), TCP/Ethernet Protocol CP/IP, Telnet
Serial Control Ports: 2- RS-232 ports, each 9-pin female D connector
Baud rate and Protocol: 115K Baud, 8-bit, 1 stop, no parity selectable
Keyboard Port: PS/2 Connector
Tally: DB-25 Male, Dry-Contact Relay Closures: 1A at 30 VDC, 0.5A at 125 VDC
Backup option: Removable Media Card, Type 1 Compact Flash Compliant | | Dimensions (HxWxD) | 5.95 x 17 x 10" (15.13 x 43.2 x 25.4cm)
2U rack height, full rack width | | Weight | 12 lbs (5.45kg) | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 22.0 x 18.5 x 12.0" |
