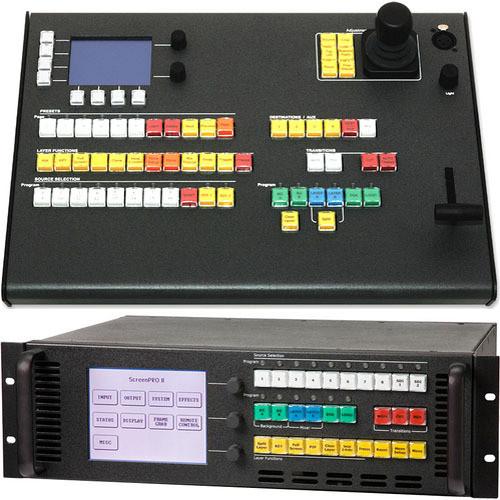

User Manual for Barco ScreenPRO-II HD Basic Package Click to enlarge the picture
Contents of the user manual for the Barco ScreenPRO-II HD Basic Package
- Product category: Production Switchers Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Production Switchers
|
User manual for the Barco ScreenPRO-II HD Basic Package contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The Barco ScreenPRO-II HD Basic Package includes two ScreenPRO-II HD switchers and one ScreenPRO-II controller. The switchers run on 10-bit Athena processors and use four image layers to produce sophisticated transitioning backgrounds, transitioning picture-in-picture windows, wipes, dissolves and keys. Transition times can be set to as quick as zero. That, a low processing delay of a max of three input fields, and two scalers allow for clean switching.
Each switcher features twelve inputs, two scalers, and three program outs that all show one image at one resolution. Ten of the twelve inputs can be scaled, and the other two can run at full screen. Of the ten scalable, two are SD/HD-SDI inputs and eight are 15-pin analog inputs that accept HD inputs via optional adapters from Barco's Switcher Cable Kit. Scaler 1 begins to function as soon as an input is selected, and Scaler 2 begins as soon as a second input is selected, affording cleaner switching from one source to another. The non-scalable inputs are DVI. All the inputs support resolutions up to 2048 x 1080p. The program outs are a DVI and two 15-pin inputs that are also HD-convertible by adapters. Three linked program outs allow the convenience of connecting to additional projectors without using a splitter.
Using the switcher's menu, different backgrounds can be selected, including full screen color background or full screen logos. Up to 3 logos can be stored. An optional EOC card adds more inputs (BNCs) and more memory allowing up to 100 images to be pre-stored.
The controller can input up to 16 sources and output to four ScreenPRO IIs and four AUXs. It features 36 presets (6 pages of 6 presets), a 3.8" touch screen LCD, a 3-axis joystick and an analog T-Bar. Presets include sources, layer functions, and transition effects. If combined with ScreenPRO-II and a BlendPRO-II, the controller can manage blended screens up to 4 projectors wide. BlendPRO-II is sold separately. ScreenPRO-II HD - Key Features
-
- Transitioning PiP or key on a transitioning background
- Native high resolution background channels independent of the PiP/key processing channel
- Low video delay -- less than 3 input fields
- Programmable matte
- Z-order control (priority layers) for overlapping PiPs or keys
- Mixer is re-assignable as a mixing (transitioning) PiP or as two (split) non-transitioning PiPs or keys
- Capture and storage of two LOGOs for use as full-screen image or downstream key source
- Look-ahead preview
- Output sync: free-run or vertically locked to NTSC/PAL blackburst, CSync or HD tri-level sync
- Supports upgrades to additional modules, such as a recordable output)
- User Controls
-
- LCD touch screen display
- Keyboard circuitry
- Rotary encoders and LED lighted push buttons
- Computer or LAN / RS-232 remote control
- Control Functions
-
- Source input configuration
- Output format selection
- Test pattern selection
- Video source selection for PIPs or keys
- Transition effect selection and control
- PiP Effects
-
- PiP size from 1/8 to 8X source resolution
- Adjustable PiP aspect ratio
- PiP borders, including drop shadows and soft edge
- Keying
-
- Luminance key
- Split key (key alpha and fill)
- Reverse key (key on background)
- Video processing
-
- 10-bit processing
- 1:1 pixel sampling
- Motion adaptive de-interlacing (SD & HD)
- 3:2 and 2:2 pull down detect
- Image cropping
- Aspect ratio correction
ScreenPRO-II Controller -
- Can output to four ScreenPRO-IIs and four AUX outputs
- 36 presets (6 pages of 6 presets)
- 3.8" LCD with 8 buttons and 2 knobs for easy set up
- 3-axis joystick and an analog T-Bar
- External router control via Ethernet or RS-232
- Backup option to removable media card
In the Box Barco ScreenPRO-II HD Basic Package Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco ScreenPRO-II HD Basic Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9860224 Specs | | | Scaled Inputs | Two scalers each begin to function once an input is selected
8x 15-pin analog HD (accept HD via optional adapters from Barco's Switcher Cable Kit):
RGBHV / RGBS / RGsB computer video
YPbPr SD or HD
S-video
Composite video
2x HD/SD-SDI:
SMPTE 292M (HDTV)
SMPTE 259M-C (NTSC/PAL resolution) | | Scaled Input Resolutions | 480i
VGA 640 x 480 through UXGA 1600 x 1200 computer resolutions
Up to 1920 x 1080i/p HDTV resolutions
2048 x 1080p digital cinema format
Plasma display resolutions | | Non-Scalable Inputs | Non-scalable background/DSK channel inputs can be run at full screen
2x DVI | | Non-Scalable Input Resolutions | VGA 640 x 480 through UXGA 1600 x 1200 computer resolutions
Up to 1920 x 1080i/p HDTV resolutions
2048 x 1080p digital cinema format
Plasma display resolutions | | Outputs | 1x Program Out on DVI
2x accompanying 15-pin analog HD: outputs RGBHV / RGBS / RGsB non-interlaced only
1x Preview Out on 15-pin analog HD
The 15-pin analog HD outputs are HD-convertible by optional adapters from Barco's Switcher Cable Kit | | Output Resolutions | VGA 640 x 480 through UXGA 1600 x 1200 computer resolutions
Up to 1920 x 1080i/p HDTV resolutions
2048 x 1080p digital cinema format
Plasma display resolutions | | Genlock | 1x Genlock in, 1x Genlock out | | Processing | 10-bit Athena processor | | | | Routing | Input capability: up to 16 input sources
Output destinations: 1-4 ScreenPRO II processors
External router control: up to 3 -- 1x Analog, 1x HD/SD-SDI, 1x DVI | | Display | 3.8" LCD touch-screen (9.6 cm) | | Joystick | 3-axis (X,Y and Z) | | T-Bar | Analog, with smooth movement | | Presets | 36 (6 pages of 6 presets) | | Destinations | 8 (4x ScreenPRO II and 4x AUX) | | Ethernet Control | 1x RJ-45 female, running 10/100 Base-T, half / full duplex with auto detect | | Ethernet Protocol | ICMP (ping), TCP/Ethernet Protocol CP/IP, Telnet | | Serial Control | 2x RS-232 9-pin female D connector | | Baud Rate & Protocol | 115K Baud, 8-bit, 1 stop, no parity selectable | | Console Light | XLR connector | | Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 0 to 95%, non-condensing | | Power | 100 - 240 VAC, 50/60 Hz, auto-selecting 1.0 A max | | Dimensions | 5.95 x 17 x 10" (15.1 x 43.2 x 25.4 cm)
(2U high, full rack width) | | Weight | 12 lb (5.44 kg) | | | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 34.0 x 23.0 x 22.5" |
