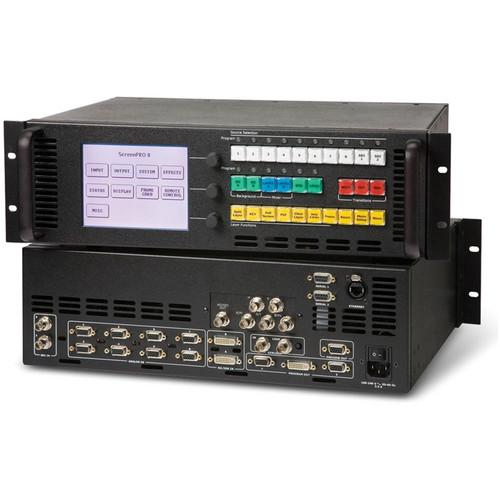

User Manual for Barco ScreenPRO-II HD Switcher with 3G EOC Click to enlarge the picture
Contents of the user manual for the Barco ScreenPRO-II HD Switcher with 3G
- Product category: Production Switchers Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Production Switchers
|
User manual for the Barco ScreenPRO-II HD Switcher with 3G contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The Barco ScreenPRO-II HD Switcher with 3G EOC features an EOC (expanded output card) attached to the back of the switcher, adding more memory and the ability to mirror program or preview outs. Where normally the switcher can store only 3 logos, with the EOC up to 100 images can be pre-stored. The added outputs consist of a 3G/HD/SD-SDI and YUV on five BNCs (two of them for H/V sync).
The switcher runs on a 10-bit Athena processor and uses four image layers to produce sophisticated transitioning backgrounds, transitioning picture-in-picture windows, wipes, dissolves and keys. Transition times can be set to as quick as zero. That, a low processing delay of a max of three input fields, and two scalers allow for clean switching.
The switcher features twelve inputs, two scalers, and three program outs that all show one image at one resolution. Ten of the twelve inputs can be scaled, and the other two can run at full screen. Of the ten scalable, two are SD/HD-SDI inputs and eight are 15-pin analog inputs that accept HD inputs via optional adapters from Barco's Switcher Cable Kit. Scaler 1 begins to function as soon as an input is selected, and Scaler 2 begins as soon as a second input is selected, affording cleaner switching from one source to another. All the inputs support resolutions up to 2048 x 1080p. The non-scalable inputs are DVI. The program outs are a DVI and two 15-pin inputs that are also HD-convertible by adapters. Three linked program outs allow the convenience of connecting to additional projectors without using a splitter. Using the switcher's menu, different backgrounds can be selected, including full screen color background or full screen logos.
The EOC operates in two different modes -- primary and auxiliary. In primary output mode, the card provides interlaced or serial digital formats at the same resolution as the main program and preview outputs of the switcher, and with no delay. In auxiliary output mode, the card supplies interlaced or serial digital formats but at different resolutions from the program and preview outputs. Auxiliary mode has a frame delay from the program and preview outputs. In both modes, outputs from the card can be used for recording or to display on a monitor. ScreenPRO-II HD - Key Features
-
- Transitioning PiP or key on a transitioning background
- Native high resolution background channels independent of the PiP/key processing channel
- Low video delay -- less than 3 input fields
- Programmable matte
- Z-order control (priority layers) for overlapping PiPs or keys
- Mixer is re-assignable as a mixing (transitioning) PiP or as two (split) non-transitioning PiPs or keys
- Capture and storage of two LOGOs for use as full-screen image or downstream key source
- Look-ahead preview
- Output sync: free-run or vertically locked to NTSC/PAL blackburst, CSync or HD tri-level sync
- Supports upgrades to additional modules, such as a recordable output)
- User Controls
-
- LCD touch screen display
- Keyboard circuitry
- Rotary encoders and LED lighted push buttons
- Computer or LAN / RS-232 remote control
- Control Functions
-
- Source input configuration
- Output format selection
- Test pattern selection
- Video source selection for PIPs or keys
- Transition effect selection and control
- PiP Effects
-
- PiP size from 1/8 to 8X source resolution
- Adjustable PiP aspect ratio
- PiP borders, including drop shadows and soft edge
- Keying
-
- Luminance key
- Split key (key alpha and fill)
- Reverse key (key on background)
EOC (Expanded Output Card) - Video processing
-
- 10-bit processing
- 1:1 pixel sampling
- Motion adaptive de-interlacing (SD & HD)
- 3:2 and 2:2 pull down detect
- Image cropping
- Aspect ratio correction
In the Box Barco ScreenPRO-II HD Switcher with 3G EOC 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco ScreenPRO-II HD Switcher with 3G EOC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9004678 Specs | | | Scaled Inputs | Two scalers each begin to function once an input is selected
8x 15-pin analog HD (accept HD via optional adapters from Barco's Switcher Cable Kit):
RGBHV / RGBS / RGsB computer video
YPbPr SD or HD
S-video
Composite video
2x HD/SD-SDI:
SMPTE 292M (HDTV)
SMPTE 259M-C (NTSC/PAL resolution) | | Scaled Input Resolutions | 480i
VGA 640 x 480 through UXGA 1600 x 1200 computer resolutions
Up to 1920 x 1080i/p HDTV resolutions
2048 x 1080p digital cinema format
Plasma display resolutions | | Non-Scalable Inputs | Non-scalable background/DSK channel inputs can be run at full screen
2x DVI | | Non-Scalable Input Resolutions | VGA 640 x 480 through UXGA 1600 x 1200 computer resolutions
Up to 1920 x 1080i/p HDTV resolutions
2048 x 1080p digital cinema format
Plasma display resolutions | | Outputs | 1x Program Out on DVI
2x accompanying 15-pin analog HD: outputs RGBHV / RGBS / RGsB non-interlaced only
1x Preview Out on 15-pin analog HD
The 15-pin analog HD outputs are HD-convertible by optional adapters from Barco's Switcher Cable Kit | | Output Resolutions | VGA 640 x 480 through UXGA 1600 x 1200 computer resolutions
Up to 1920 x 1080i/p HDTV resolutions
2048 x 1080p digital cinema format
Plasma display resolutions | | Genlock | 1x Genlock in, 1x Genlock out | | Processing | 10-bit Athena processor | | | | Outputs | 6x BNCs:
1x 3G/HD/SD-SDI:
SMPTE 292M (HDTV)
SMPTE 259M-C (NTSC/PAL resolution)
3x YUV
1x H to sync YUV
1x V to sync YUV | | Output Resolutions | NTSC 480i
PAL 576i
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
1280 x 720p @ 25, 29.94, 30
1920 x 1080i @ 50, 59.94, 60
1920 x 1080p @ 25, 29.94, 30 | | | | Package Weight | 29.9 lb | | Box Dimensions (LxWxH) | 23.1 x 22.6 x 11.1" |
