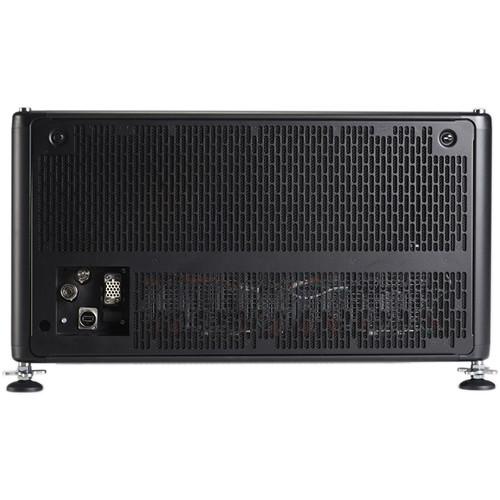

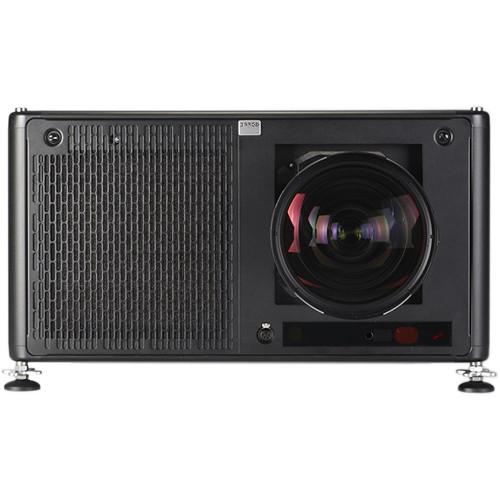

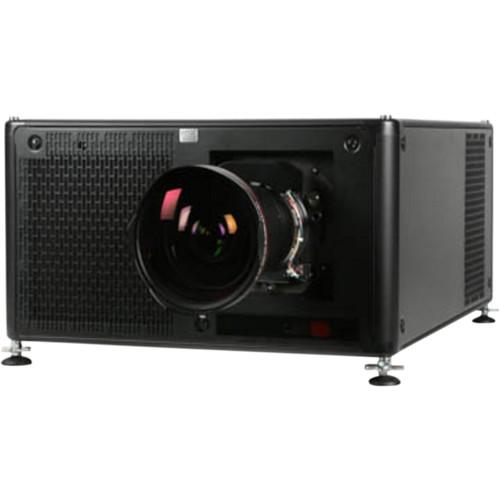

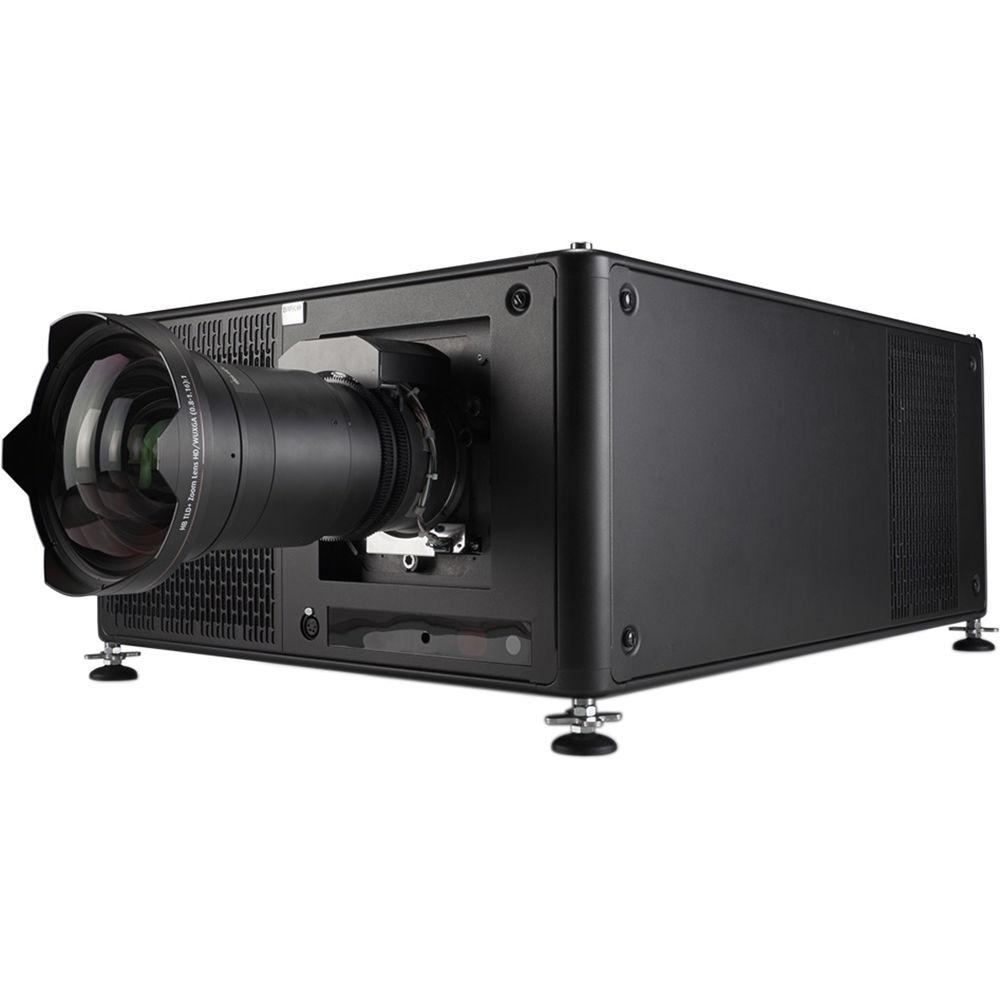

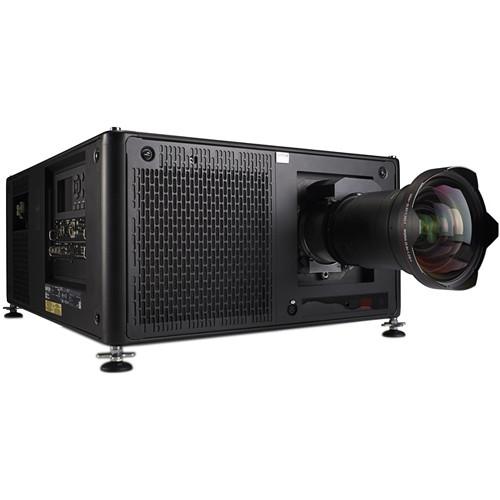

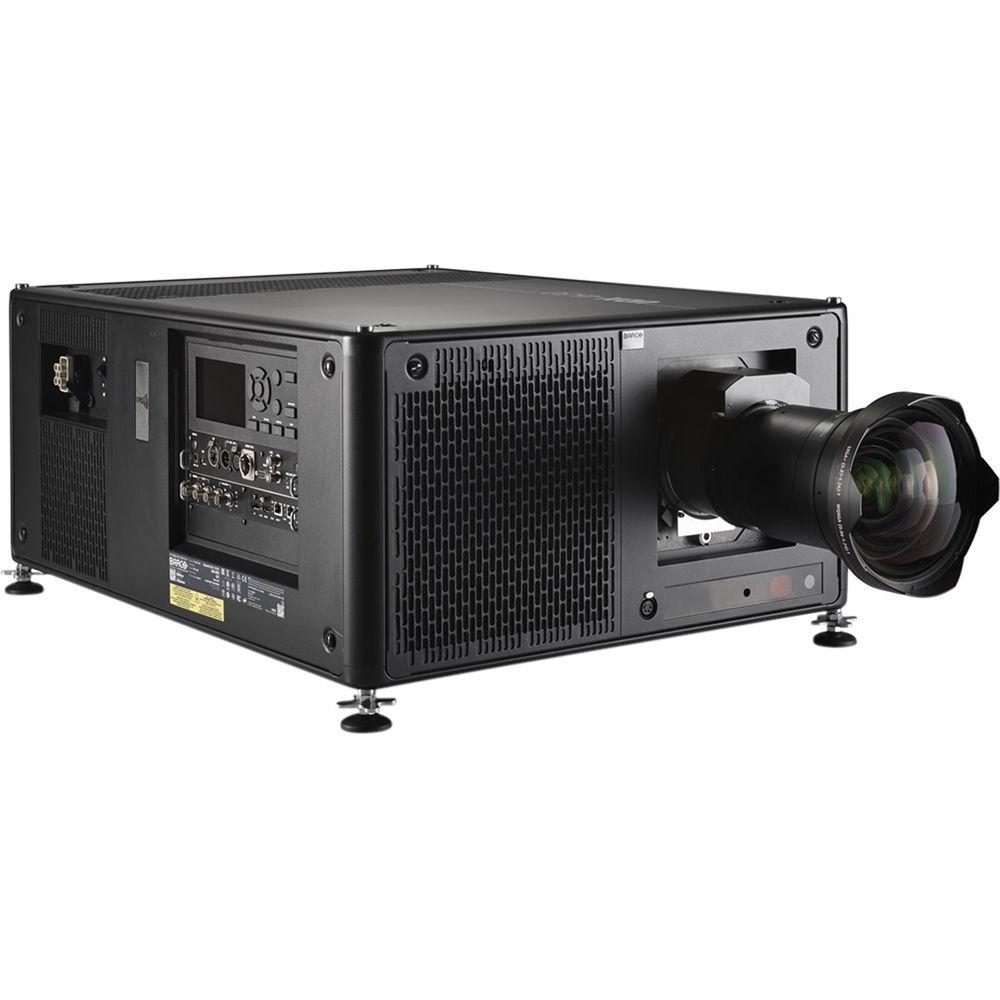

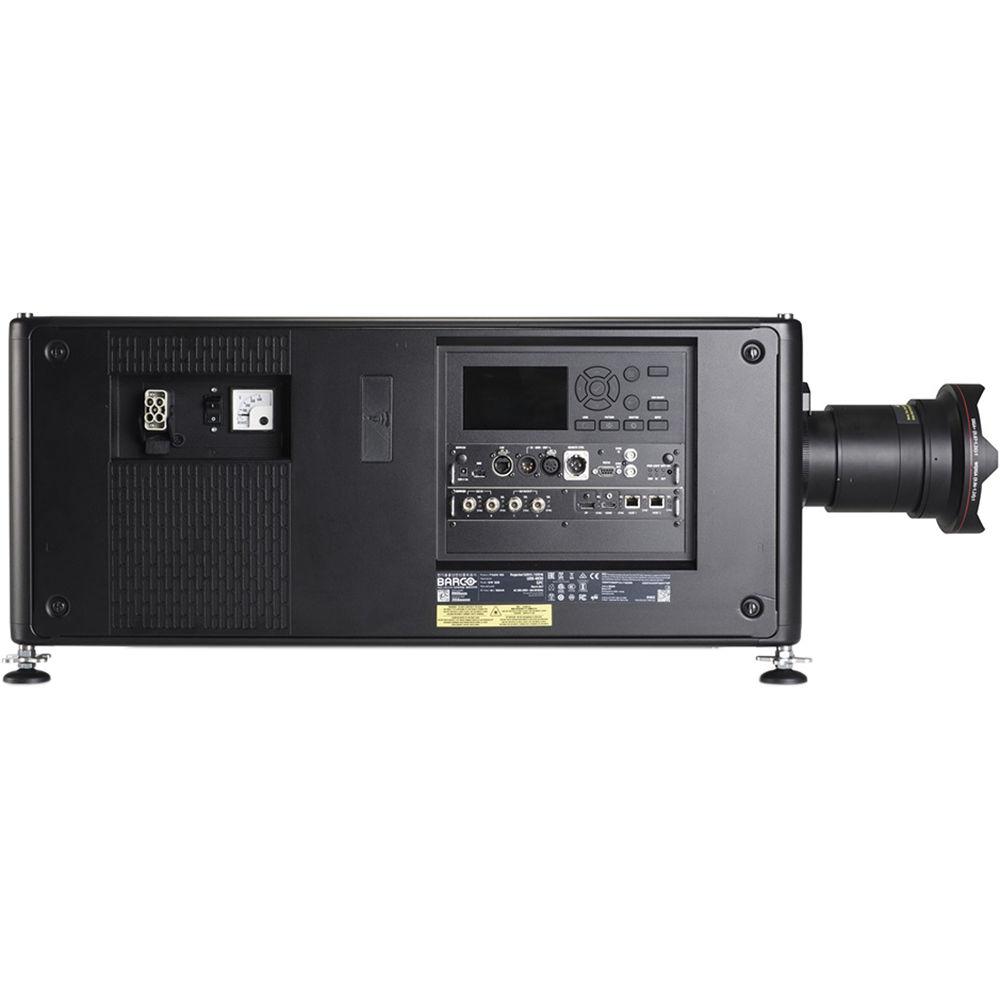

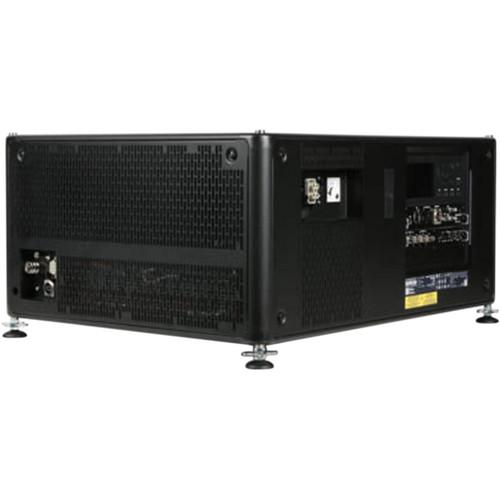

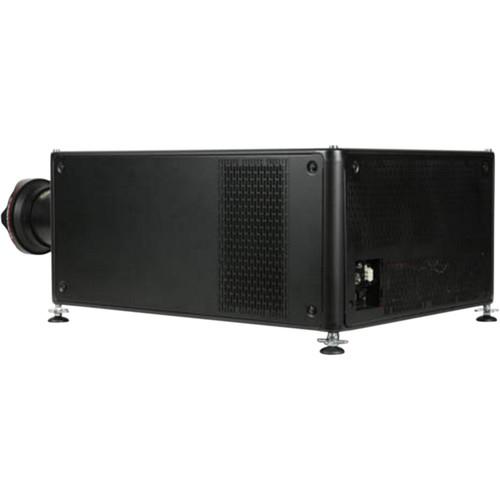

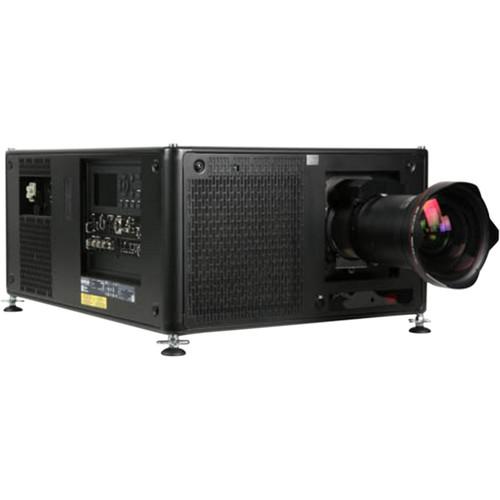

User Manual for Barco UDX-U32 UXGA 30,000-Lumen DLP Laser Projector Click to enlarge the picture
Contents of the user manual for the Barco UDX-U32 UXGA 30,000-Lumen DLP Laser
- Product category: Multimedia Projectors Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Multimedia Projectors
 |
User manual for the Barco UDX-U32 UXGA 30,000-Lumen DLP Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The UDX-U32 UXGA 30,000-Lumen DLP Laser Projector from Barco features 1600 x 1200 (UXGA) resolution and 30,000 lumens of brightness with accurate colors for clear and bright images. The projector features HDMI, DisplayPort, and single HDBaseT video inputs. It is controllable via Ethernet and RS-232. The Constant Light Output (CLO) functionality provides constant brightness and color over time. Furthermore, the Barco Pulse 4K electronics offer an intuitive interface and flexible, user-friendly, embedded control software. Its SSP (Single Step Processing) allows for sharper images and less latency. - UXGA (1600 x 1200) resolution for sharp images with vivid colors
- From NTSC up to 4K (4096 x 2160)
- CLO (Constant Light Output) provides constant brightness and color over time
- UDX color quality matches the Xenon quality with Rec. 709 color space
|
Upload User Manual
Have you got an user manual for the Barco UDX-U32 UXGA 30,000-Lumen DLP Laser Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco U32 Specs | | | Display System | 3-Chip 0.96" DMD DLP | | Native Chip Resolution | 1600 x 1200 (UXGA) | | Max Brightness | 3000 Lumens | | Uniformity | 90% | | Aspect Ratio | Native: 4:3 | | Contrast Ratio | 2000:1 | | | | Lens | None | | Lens Shift | Vertical: -100 to 130%
Horizontal: ± 40% | | | | Inputs/Outputs | 1 x HDBaseT (RJ45) Video (Input)
1 x HDMI Video (Input)
1 x DisplayPort Video (Input)
1 x HD-SDI (BNC) Video (Input)
1 x SDI (BNC) Video (Input)
1 x 1/8" (3.5 mm) Mini Control
1 x XLR Control
1 x Ethernet (RJ45) LAN | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Full Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 52 dB Typical at 77°F (25°C) | | Heat Dissipation | 10921 BTU | | Power Consumption | Full Brightness: 2900 W
Full Brightness: 3100 W
Standby Mode (Lamp Off): <10 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 80% non-condens | | Dimensions (W x H x D) | 25.9 x 13.7 x 32.7" / 65.8 x 34.8 x 83.1 cm | | Weight | 202.82 lb / 92 kg |
