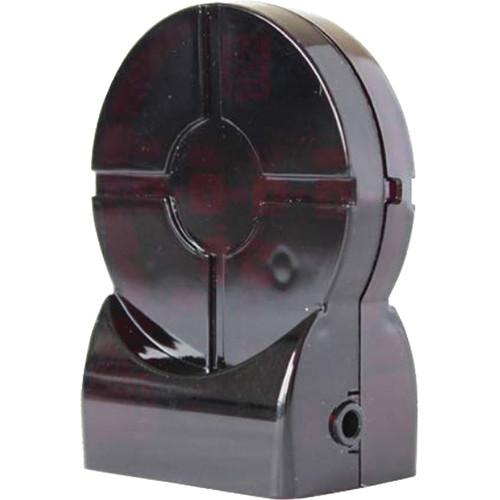

User Manual for Barco Volfoni ActivHub RF50 3D Radio Emitter Click to enlarge the picture
Contents of the user manual for the Barco Volfoni ActivHub RF50 3D Radio
- Product category: Glasses & Accessories Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Glasses & Accessories
|
User manual for the Barco Volfoni ActivHub RF50 3D Radio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The Volfoni ActivHub RF50 3D Radio Emitter from Barco is an emitter used to wirelessly synchronize 3D glasses with a 3D display system for up to 50 users. The ActivHub can receive 3D synchronization either via a wired link, using VESA-DIN3 or BNC connectors; via an infrared link, from any of wide variety of sources like 3DTVs and 3D IR emitters; or via a DLP-Link embedded in the 3D images of a 3D-ready projector.
The ActiveHub can transmit 3D synchronization via an RF link or VESA link (square signal 0-5V) from any 3D source. The emitter's intelligent core enables automatic compatibility with most 3D display brands using IR synchronization. Add to the wide choice of pre-loaded custom-made software by upgrading your ActivHub with additional functions via Volfoni's website.
The ActiveHub is particularly suitable for use in virtual reality centers, thanks to its omnidirectional, interference-free RF link. Industry-wide multi-brand compatibility and a 12-channel selectable RF Link make the ActiveHub a valuable tool for 3D professionals and digital content creators. - Interference-free RF 3D emitter for long-range 3D synchronization
- RF 3D emitter for EDGE RF 3D glasses
- Supports IR, DLP-Link, VESA to RF signals
- Compatible with all frequencies up to 240 Hz
In the Box Barco Volfoni ActivHub RF50 3D Radio Emitter (50 Users) USB to micro-USB Cable VESA 3-pin Mini DIN to 3.5mm Phone Plug Cable BNC and USB to 3.5mm Phone Plug Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco Volfoni ActivHub RF50 3D Radio Emitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco 503-0348-00 Specs | Compatibility | 3D Projectors: DCI, Mono DLP, 3xDLP, DILA, SXRD, and 3xLCD
Flatscreen 3DTVs: Plasma, LCD / LED 3DTVs, LCD 3D screens & PCs, and DLP TVs | | 3D Sync | GPIO (3D Cinema, cable optional)
VESA DIN-3
BNC
Jack (Panasonic, cable optional)
RJ45 (Epson) | | Protocols | Reception:
3D Cinema (IR)
HomeCinema 3D (DLP-Link)
Universal 3DTV (IR)
Universal 3D Computer (IR)
Volfoni 3D (RF)
Emission:
Volfoni 3D (RF) | | Frame Rates | 96 Hz HFR & Home Cinema 3D
120 Hz Sport HFR & 3D-Ready
144 Hz Triple Flash 3D Cinema
192 Hz HFR Full Comfort
240 Hz
Dual View Mode | | Radio Frequency | Frequency: 2.4 GHz
Power: -20 to +10 dBm
Range: Up to 98' (30 m)
Approval: Band ISM, not necessary | | Power | 5 VDC via USB
12 VDC via VESA | | Certification | RoHS, CE
Panasonic qualified | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 23 to 122°F (-5 to 50°C) | | Relative Humidity | 20 to 80% | | Dimensions | 1.69 x 1.18 x 2.75" (43 x 30 x 70 mm) | | Weight | 0.7 oz (20 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.6 x 3.1 x 2.5" |
